Table 14 Connector X47 Pinout Description
Pin Function
1 +12 - 24V
2 +12 - 24V
3 GND
4 GND
5 N.C
Connector Type
X47 : 1x5-pin, 3 mm pitch Molex Micro-FIT connector
5.1.3.1

Optional SBM3 Signal Connector

As mentioned in section 5.1.3, you need the optional power connector X47 and the signal connector X47 for designs with SBM battery kit. The
signal connector ensures the conga-IC175 communicates flawlessly with the battery kit.
Table 15 Connector X46 Pinout Description
Pin Function
1 GND
2 I2C_DAT
3 I2C_CLK
4 BATLOW#
5 SUS_STAT#
6 PM_SLP_S3#
7 PM_SLP_S4#
8 PWRBTN#
Connector Type
X46 : 8-pin, 1.25 mm pitch Molex PicoBlade connector
Copyright © 2017 congatec AG

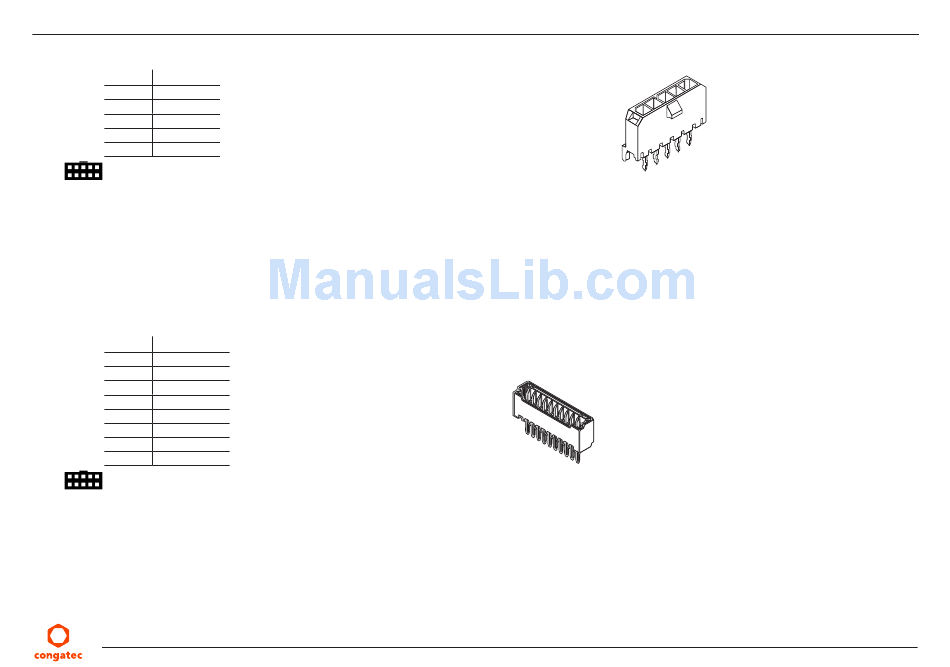

SBM3 Power - Connector X47
SBM3 Signal - Connector X46
