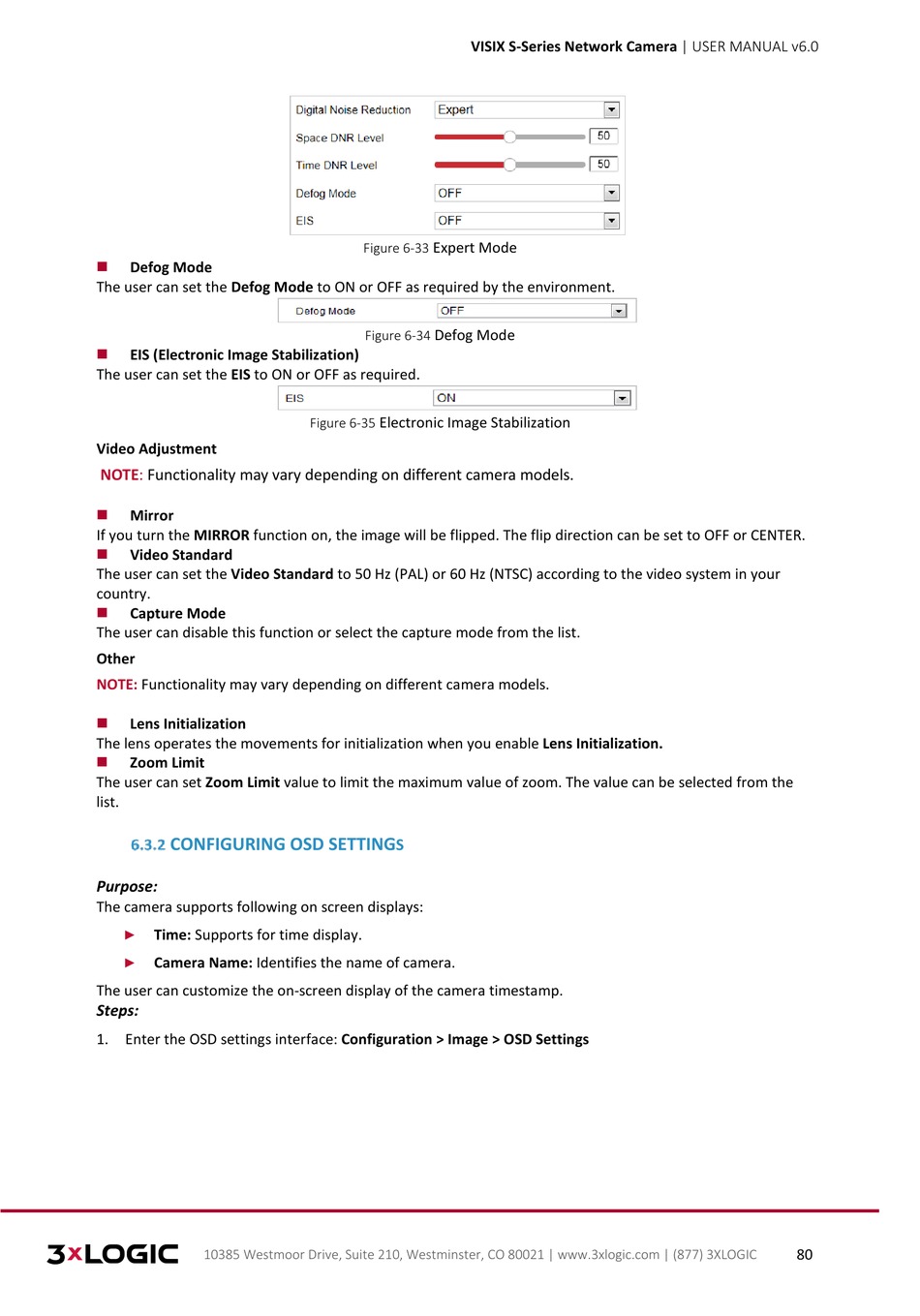

Defog Mode
The user can set the Defog Mode to ON or OFF as required by the environment.
EIS (Electronic Image Stabilization)
The user can set the EIS to ON or OFF as required.
Video Adjustment
NOTE:
Functionality may vary depending on different camera models.
Mirror
If you turn the MIRROR function on, the image will be flipped. The flip direction can be set to OFF or CENTER.
Video Standard
The user can set the Video Standard to 50 Hz (PAL) or 60 Hz (NTSC) according to the video system in your
country.
Capture Mode
The user can disable this function or select the capture mode from the list.
Other
NOTE:
Functionality may vary depending on different camera models.
Lens Initialization
The lens operates the movements for initialization when you enable Lens Initialization.
Zoom Limit
The user can set Zoom Limit value to limit the maximum value of zoom. The value can be selected from the
list.
CONFIGURING OSD SETTING
Purpose:
The camera supports following on screen displays:
Time: Supports for time display.
Camera Name: Identifies the name of camera.
The user can customize the on-screen display of the camera timestamp.
Steps:
1. Enter the OSD settings interface: Configuration > Image > OSD Settings
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
VISIX S-Series Network Camera | USER MANUAL v6.0
Expert Mode
Figure 6-33
Defog Mode
Figure 6-34
Electronic Image Stabilization
Figure 6-35
S
80
