Steps:
1. Configure the FTP settings and check Upload Picture checkbox in FTP Settings interface. Refer to Section
6.1.2 Configuring FTP Settings for more details on configuring FTP parameters.
2. Check Upload to FTP checkbox in Motion Detection Settings or Alarm Input interface. Refer to Section
5.2.1 Configuring Motion Detection for more details.
3. Toggle the Enable Event-triggered Snapshot checkbox.

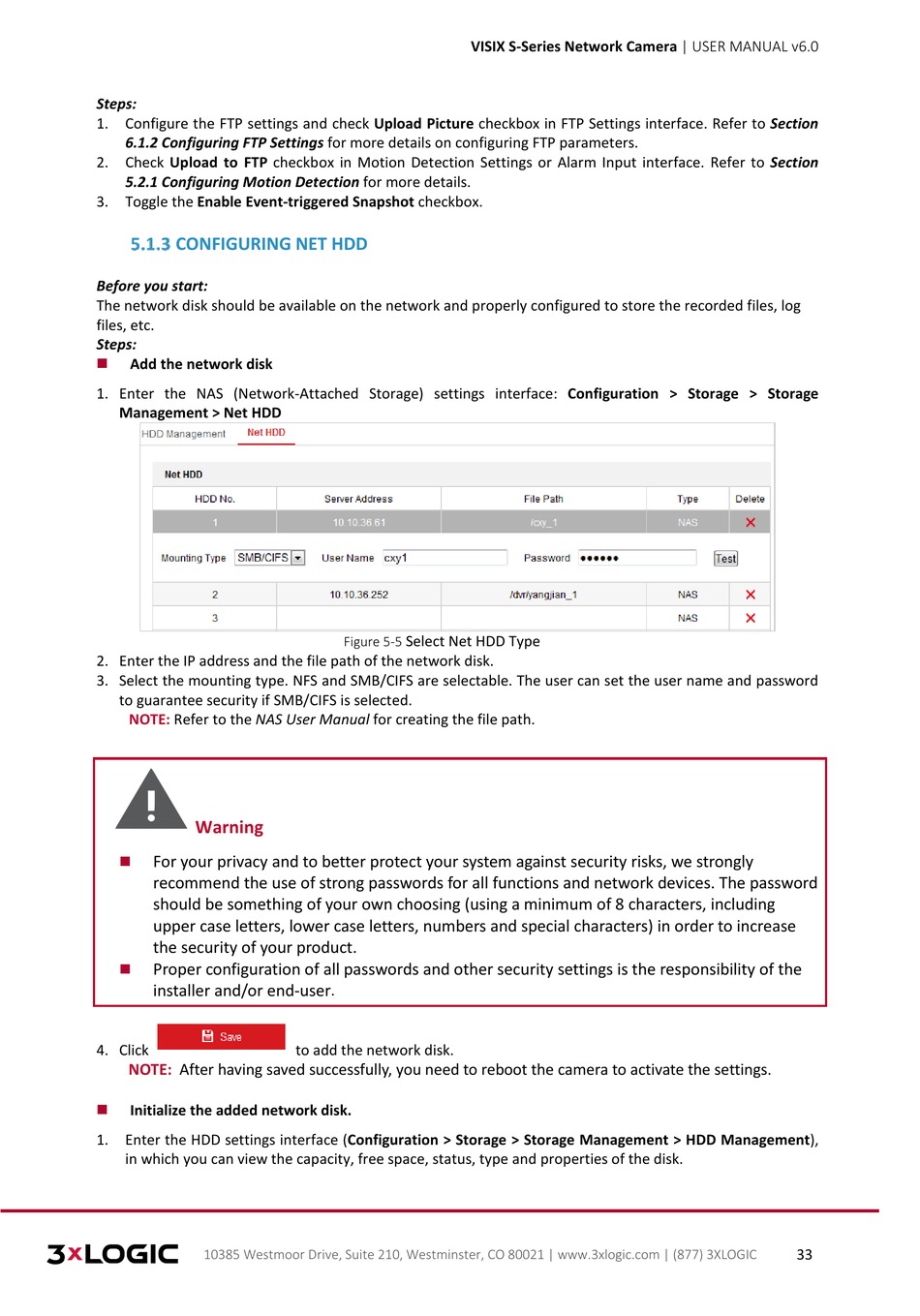

CONFIGURING NET HDD

Before you start:
The network disk should be available on the network and properly configured to store the recorded files, log
files, etc.
Steps:
Add the network disk

1. Enter the NAS (Network-Attached Storage) settings interface: Configuration > Storage > Storage
Management > Net HDD
2. Enter the IP address and the file path of the network disk.
3. Select the mounting type. NFS and SMB/CIFS are selectable. The user can set the user name and password
to guarantee security if SMB/CIFS is selected.
NOTE:
Refer to the NAS User Manual for creating the file path.
Warning
For your privacy and to better protect your system against security risks, we strongly

recommend the use of strong passwords for all functions and network devices. The password
should be something of your own choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers and special characters) in order to increase
the security of your product.
Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user
4. Click
NOTE:
After having saved successfully, you need to reboot the camera to activate the settings.
Initialize the added network disk.

1. Enter the HDD settings interface (Configuration > Storage > Storage Management > HDD Management),
in which you can view the capacity, free space, status, type and properties of the disk.
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
Select Net HDD Type
Figure 5-5
.
to add the network disk.
