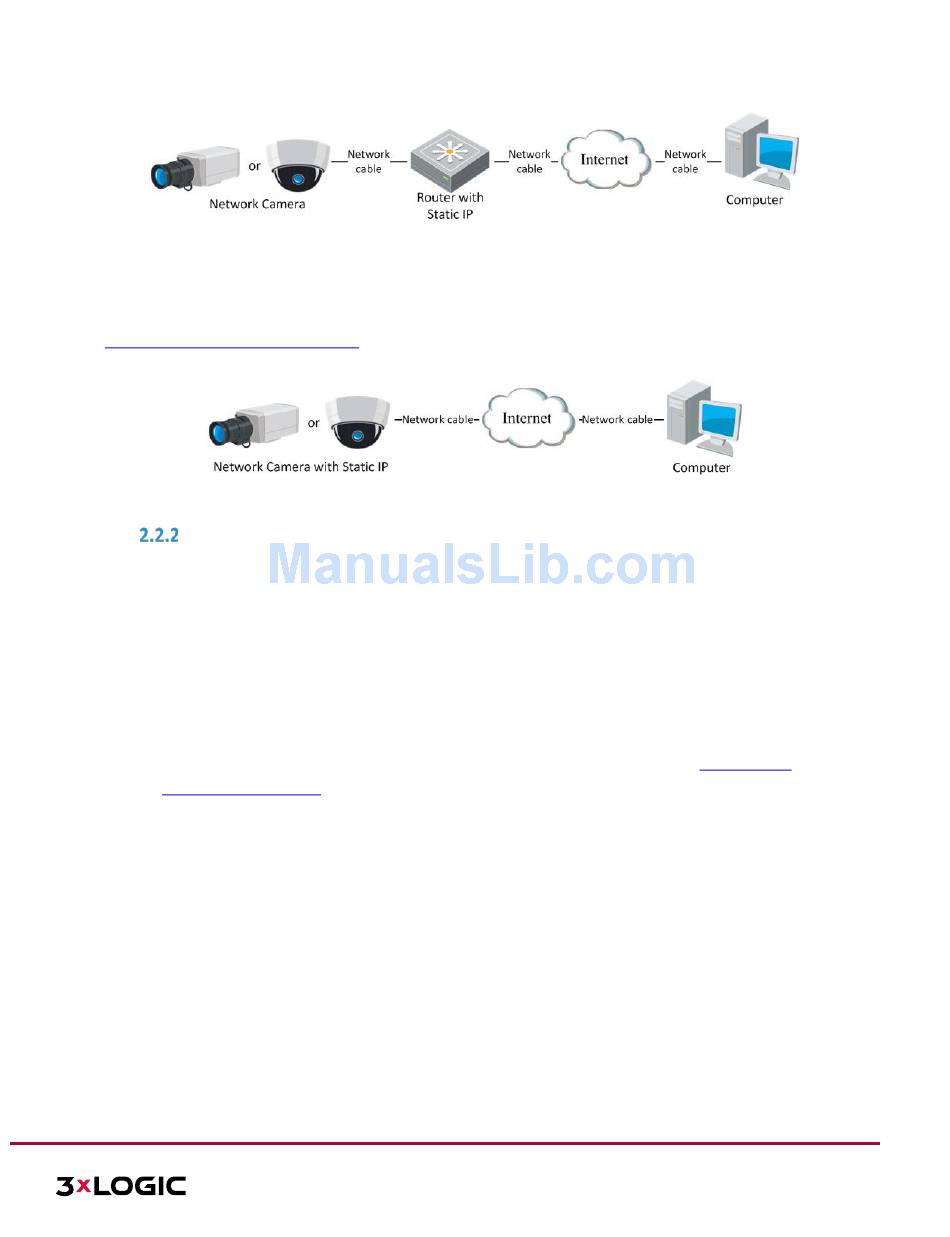

Figure 2-5

Connecting the network camera with static IP directly:

You can also save the static IP in the camera and directly connect it to the internet without using a router. Refer to

Detecting and Changing the IP Address

DYNAMIC IP CONNECTION

Before you start:

Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network camera to a

modem or a router.

Connecting the network camera via a router:

Steps:

1). Connect the network camera to the router.

2). In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer to

Changing the IP Address

3). In the router, set the PPPoE user name, password and confirm the password.

4). Set port mapping. E.g. 80, 8000, and 554 ports. The steps for port mapping vary depending on different

routers. Please call the router manufacturer for assistance with port mapping.

5). Apply a domain name from a domain name provider.

6). Configure the DDNS settings in the setting interface of the router.

7). Visit the camera via the applied domain name.

10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC

Accessing the Camera through Router with Static IP

for detailed IP address configuration of the camera.

Accessing the Camera with Static IP Directly

Figure 2-6

for detailed LAN configuration.
