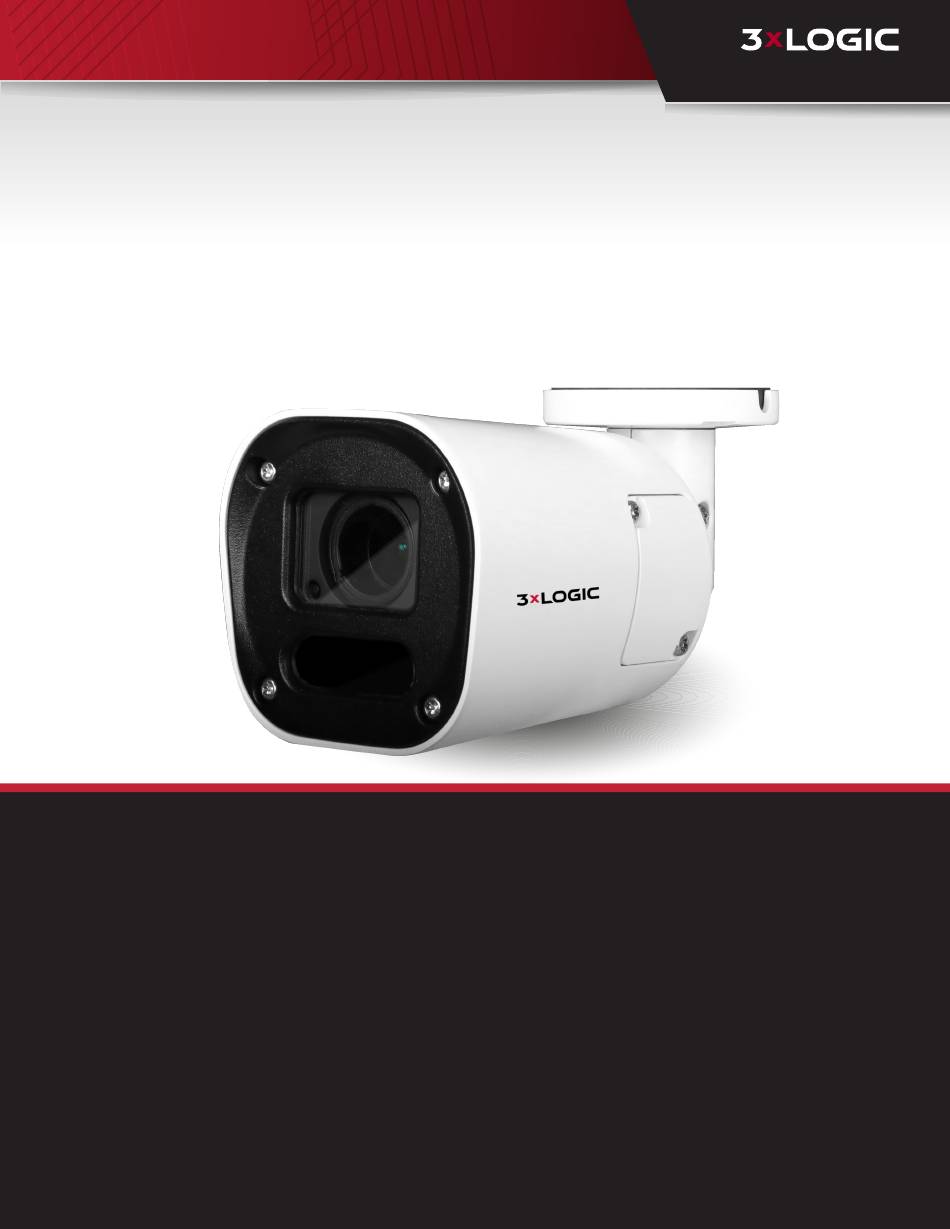

VISIX VIDEO SOLUTIONS | QUICK START GUIDE
VISIX VX-5M622-MB-RIAW-X
VISIX 5MP Outdoor Mini-Bullet w/ Edge Based Deep Learn-
ing Analytics and Optional ANPR
Quick Start Guide
v1.0.0
-
3XLOGIC, INC. | USA: 11899 EXIT 5 PARKWAY, SUITE 100 FISHERS, IN 46037 | UK: 15 COFTON RD, EXETER, EX2 8QW, UK |
EU: ELIMAENKATU 13B, 00520 HELSINKI, FINLAND
©2023 3XLOGIC, INC. ALL RIGHTS RESERVED. INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. 3XLOGIC AND THE 3XLOGIC AND VIGIL LOGOS ARE TRADEMARKS OF 3XLOGIC, INC. ALL OTHER TRADE-MARKS
ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS.
Advertisement
Related Manuals for 3xLogic VISIX VX-5M622-MB-RIAW-X
Summary of Contents for 3xLogic VISIX VX-5M622-MB-RIAW-X
- Page 1 Quick Start Guide v1.0.0 3XLOGIC, INC. | USA: 11899 EXIT 5 PARKWAY, SUITE 100 FISHERS, IN 46037 | UK: 15 COFTON RD, EXETER, EX2 8QW, UK | EU: ELIMAENKATU 13B, 00520 HELSINKI, FINLAND ©2023 3XLOGIC, INC. ALL RIGHTS RESERVED. INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.
- Page 2 QUICK START GUIDE | VX-5M622-MB-RIAW-X COMPLIANCE COMPLIANCE CAN ICES-3 (A) / NMB-3(A) E467564 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 3 QUICK START GUIDE | VX-5M622-MB-RIAW-X PRE-INSTALL AND SAFETY GUIDELINES Note: These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. If the product is not functioning properly or damaged, contact the service center or purchasing office.
- Page 4 QUICK START GUIDE | VX-5M622-MB-RIAW-X POWER 1. Disconnect the power plug from the outlet before connecting to the power terminal block. Connect the device to the power line after fixing it firmly to the power connection terminal. Connect the power plug to the outlet to power the device.
- Page 5 QUICK START GUIDE | VX-5M622-MB-RIAW-X INSTALLATION AND USE PRECAUTIONS 1. Do not disassemble the camera at your discretion. 2. If you forcefully install the product with excessive force, malfunction can damage the camera. 3. Do not punch or shake the camera and be careful not to damage the camera with careless storage or mal- function.
- Page 6 QUICK START GUIDE | VX-5M622-MB-RIAW-X PREPARING TO MOUNT THE CAMERA 1. The mounting surface must bear five times the weight of your camera. 2. Do not let the cables get caught in improper places or the electric line cover to be damaged. This may cause a breakdown or fire.
- Page 7 QUICK START GUIDE | VX-5M622-MB-RIAW-X 1 PRODUCT & ACCESSORIES Note: Confirm all camera parts and accessories are included in the package. VX-5M622-MB-RIAW-X MOUNTING SCREWS AND T-20 TORX DESI-PAK (6g) TEMPLATE ANCHORS - 4pcs WRENCH QUICK MANUAL WATERPROOF CAP Monitor / Video Test Cable...
- Page 8 QUICK START GUIDE | VX-5M622-MB-RIAW-X 2 PART NAMES PART DESCRIPTION Illumination Sensor Lens IR LEDs Monitor / Video Test Output SD Card Slot Reset Button DC12V Connector RJ45 Connector (Included Waterproof Cap Not Pictured) Audio In / Out Alarm In / Out (Bare Wire)
- Page 9 QUICK START GUIDE | VX-5M622-MB-RIAW-X 3 INSTALLATION Before installing you must read the following cautions. Confirm the installation location can bear five times of the weight of your camera. Do not allow the cable to be caught, pinched or snagged on the environment or the electric line cover to be damaged.
- Page 10 QUICK START GUIDE | VX-5M622-MB-RIAW-X WATERPROOFING 1. Pass the LAN cable through the (a) lid. 2. Insert the cap open the (b) rubber. 3. Please note, if cabling thickness is 4.5Ø to 5.5Ø, use the black rubber stop. Cabling with a thickness over 5.5Ø should use the white rubber stop.
- Page 11 QUICK START GUIDE | VX-5M622-MB-RIAW-X 4 CABLING Component Description DC12V Power Connection Network Connector : RJ45; Max Distance - 100m, PoE - IEEE 802.3af Audio In - Connect the ‘Audio In’ port of the camera to a microphone directly or ‘Line Out’ port of an amplifier connected with microphone.
- Page 12 QUICK START GUIDE | VX-5M622-MB-RIAW-X 5 CAMERA SETUP (ADD CAMERA TO VIGIL) STEP 1: RUN DETECTION UTILITY / IDENTIFY CAMERAS i. On your VIGIL Server system, open the VIGIL Server Management Utility (VSMU) and nav- igate to the Cameras tab (open by default). ii.
- Page 13 STEP 7: ADVANCED OPTIONS / FACTORY RESET / REBOOT If advanced configuration of camera image(and other) settings is required, see the latest version 3xLOGIC VISIX Gen III User Guide for more information on accessing and configuring these settings via the camera's browser UI.
- Page 14 QUICK START GUIDE | VX-5M622-MB-RIAW-X 2. Click the context menu button and select the Reporting menu. 3. Open the TCP Server node and confirm the Active checkbox is toggled. 4. Click the Save button After saving the TCP settings on the camera, rule data must now be enabled in VIGIL: 1.
- Page 15 QUICK START GUIDE | VX-5M622-MB-RIAW-X 5. Toggle the ANPR checkbox. 6. If you want to generate alarms in VIGIL based on ANPR rule data, toggle the Alarm checkbox for the ANPR rules. 7. Click OK. The camers should now successfully pass ANPR data to VIGIL.
- Page 16 As an example for this guide, the Presence Line rule's configuration will be outlined. For information on all available rules, refer to the latest 3xLOGIC VISIX VCA Analytics Guide. To add a rule, click the Add button on the VCA > Rules page and select Presence Line as the rule type to follow this example.
- Page 17 QUICK START GUIDE | VX-5M622-MB-RIAW-X ► TCP Event: Enables/disables the triggering of the TCP notification when an event occurs. ► HTTP Event: Enables/disables the triggering of the HTTP notification when an event occurs. The following applies for the notification methods selected. ►...
- Page 18 For more information on configuration of VCA Rules, available rule types/settings and object classification, refer to the latest version of the 3xLOGIC VISIX VCA Analytics Guide. For information on interfacing VCA Rules and VIGIL Server Alarms, see the latest VIGIL Server User Guide.
- Page 19 After adding the camera to VIGIL Server or setting the camera up as a standalone device (applicable models only), 3xLOGIC recommends VIGIL Client for viewing live and playback. Client’s powerful toolset can be leveraged by users to thoroughly and quickly review camera footage and other data collected by a VIGIL Server or VIGIL All-in- One camera.
- Page 20 For further details on reviewing and exporting playback and other advanced features such as audio record- ing and two-way audio talk, POS Data OSD and more, please visit www.3xlogic.com and consult the product documentation library for VIGIL Client-related support documentation.
- Page 21 QUICK START GUIDE | VX-5M622-MB-RIAW-X 4. Enter desired search criteria and click Search to return results. 5. To see a thumbnail of a captured plate, single-click one of the search results. To open corresponding play- back from a captured plate, double-click the desired search result entry.
- Page 22 QUICK START GUIDE | VX-5M622-MB-RIAW-X The ANPR data will be docked automatically to the left of the playback window. If multiple plate captures exist within the playback clip, all entries will be listed in the ANPR capture list. ANPR ALARM SETUP To add license plates to your ANPR Allow or Deny list (plates in the list will trigger an alarm when captured): 1.
- Page 23 QUICK START GUIDE | VX-5M622-MB-RIAW-X 7 CONTACT INFORMATION 3xLOGIC has offices in Fishers, Indiana, USA as well as Exeter, UK and Helsinki, FInland. Please visit our 3xLOGIC website at www.3xlogic.com. Please contact us by e-mail at helpdesk@3xlogic.com (technical support), or using...
- Page 24 3. The correct disposal of your old appliance will help prevent potential negative con- sequences for the environment and human health. 4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchase the product. 3xLOGIC.com helpdesk@3xlogic.com...
