3.2 Access UI via Web Browser

Steps:
1. Open a web browser.
2. Input the IP address of the network camera in the URL address bar, e.g., 192.0.0.64 and press the Enter
key to enter the login interface. Alternatively, if the camera is interfaced with VIGIL Server, the web UI can
be instantly deployed by opening the camera's Network Settings form in VIGIL Server Settings > Cameras
Tab and clicking the Web Settings button.
3. Input the user name and password and click Login.
NOTE:
The username/password for the camera will have been configured during camera activation If the
camera has already been configured using one of 3xLOGIC's setup tools (VIGIL Easy Setup Wizard, 3xLOGIc
Camera Setup Utility) then default credentials will have been changed by the installer (this is a standard
security precaution enforced by the setup tools). Contact your security network administrator for
credentials.
NOTE:
English is the only supported language.
4. To view video and have full access to the camera's configuration settings, you will need to install the Web
Components plug-in. Click "Activate Web Components" to start the plug-in installation.
NOTE:
Depending on your web browser, you may be required to authorize the installer to run.
NOTE:
You may have to close the web browser to install the plug-in. Reopen the web browser and log in
again after installing the plug-in.
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
VISIX S-Series Network Camera | USER MANUAL v6.0

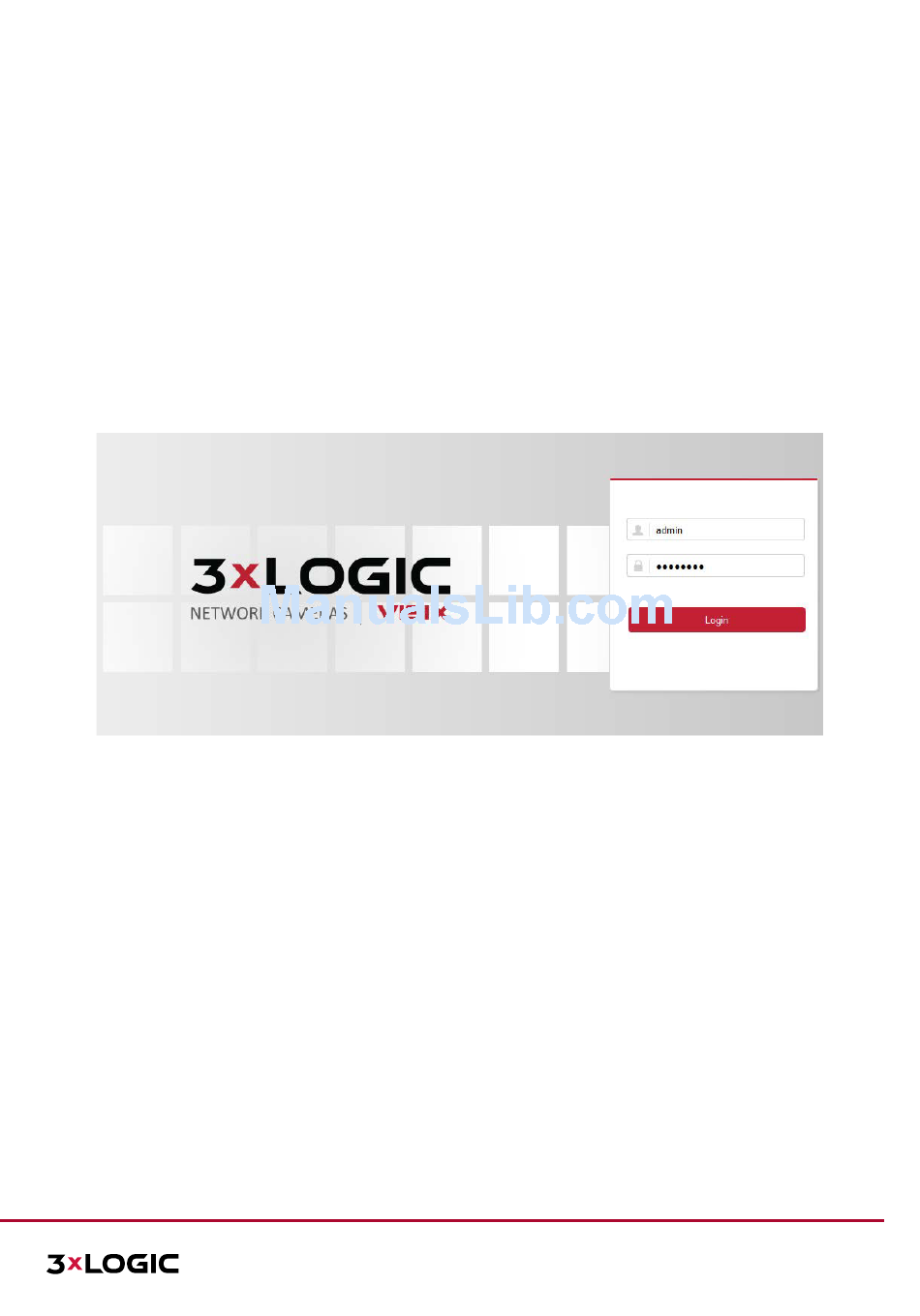

Login Interface
Figure 3-4
17
