Manual Stops of Limit Type is prior to Scan Stops. When you set these two limit
NOTE:
types at the same time, Manual Stops overrides Scan Stops.
3.
Click the PTZ control buttons to find the left/right/up/down limit stops; you can also call the defined
presets and set them as the limits of the speed dome.
4. Click Set to save the limits or click Clear to clear the limits.
5. Click

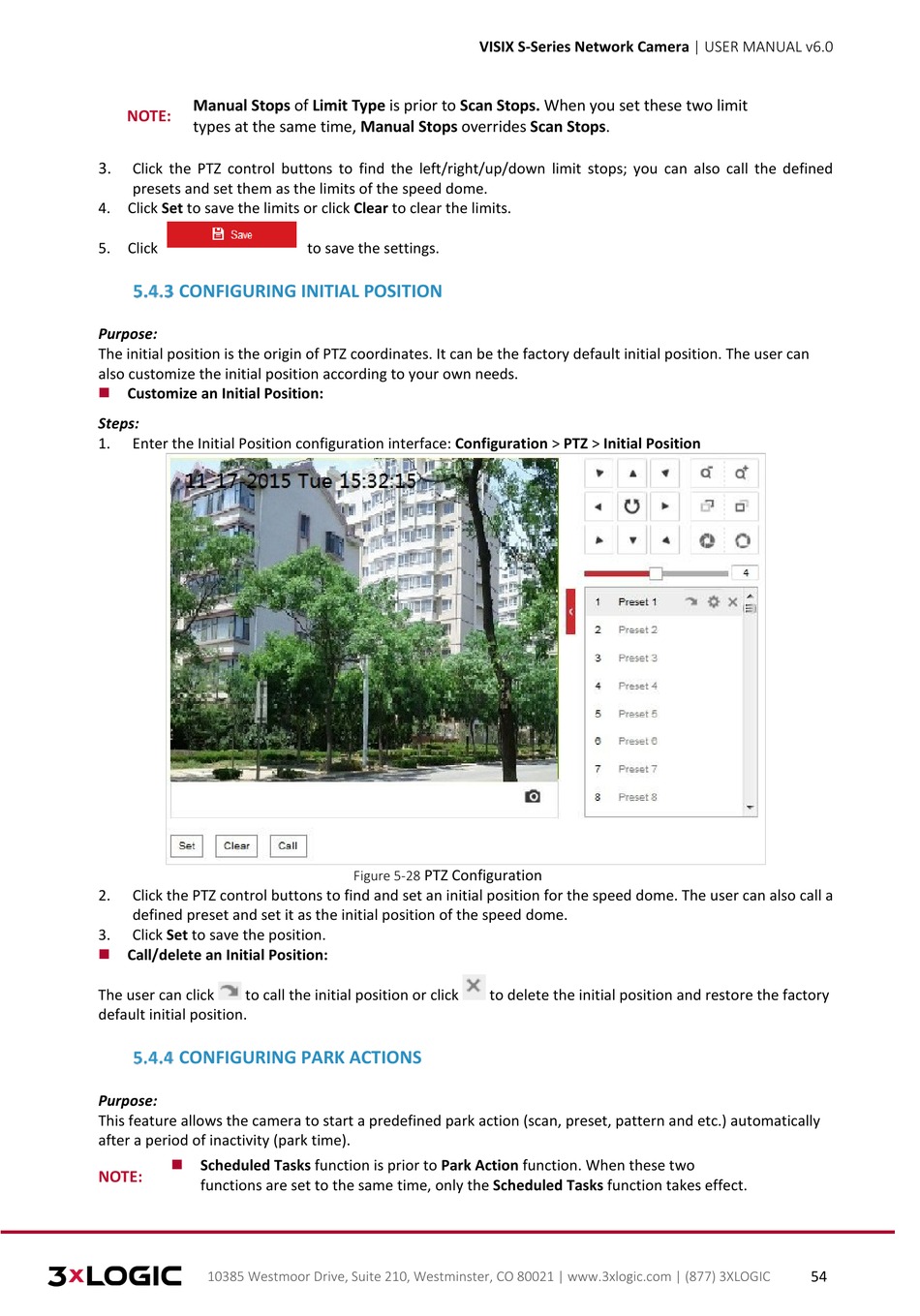

CONFIGURING INITIAL POSITION
Purpose:
The initial position is the origin of PTZ coordinates. It can be the factory default initial position. The user can
also customize the initial position according to your own needs.
Customize an Initial Position:
Steps:
1.
Enter the Initial Position configuration interface: Configuration > PTZ > Initial Position
2.
Click the PTZ control buttons to find and set an initial position for the speed dome. The user can also call a
defined preset and set it as the initial position of the speed dome.
3.
Click Set to save the position.
Call/delete an Initial Position:
The user can click
to call the initial position or click
default initial position.
CONFIGURING PARK ACTIONS
Purpose:
This feature allows the camera to start a predefined park action (scan, preset, pattern and etc.) automatically
after a period of inactivity (park time).
Scheduled Tasks function is prior to Park Action function. When these two
NOTE:
functions are set to the same time, only the Scheduled Tasks function takes effect.
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
VISIX S-Series Network Camera | USER MANUAL v6.0
to save the settings.
PTZ Configuration
Figure 5-28
to delete the initial position and restore the factory
54
