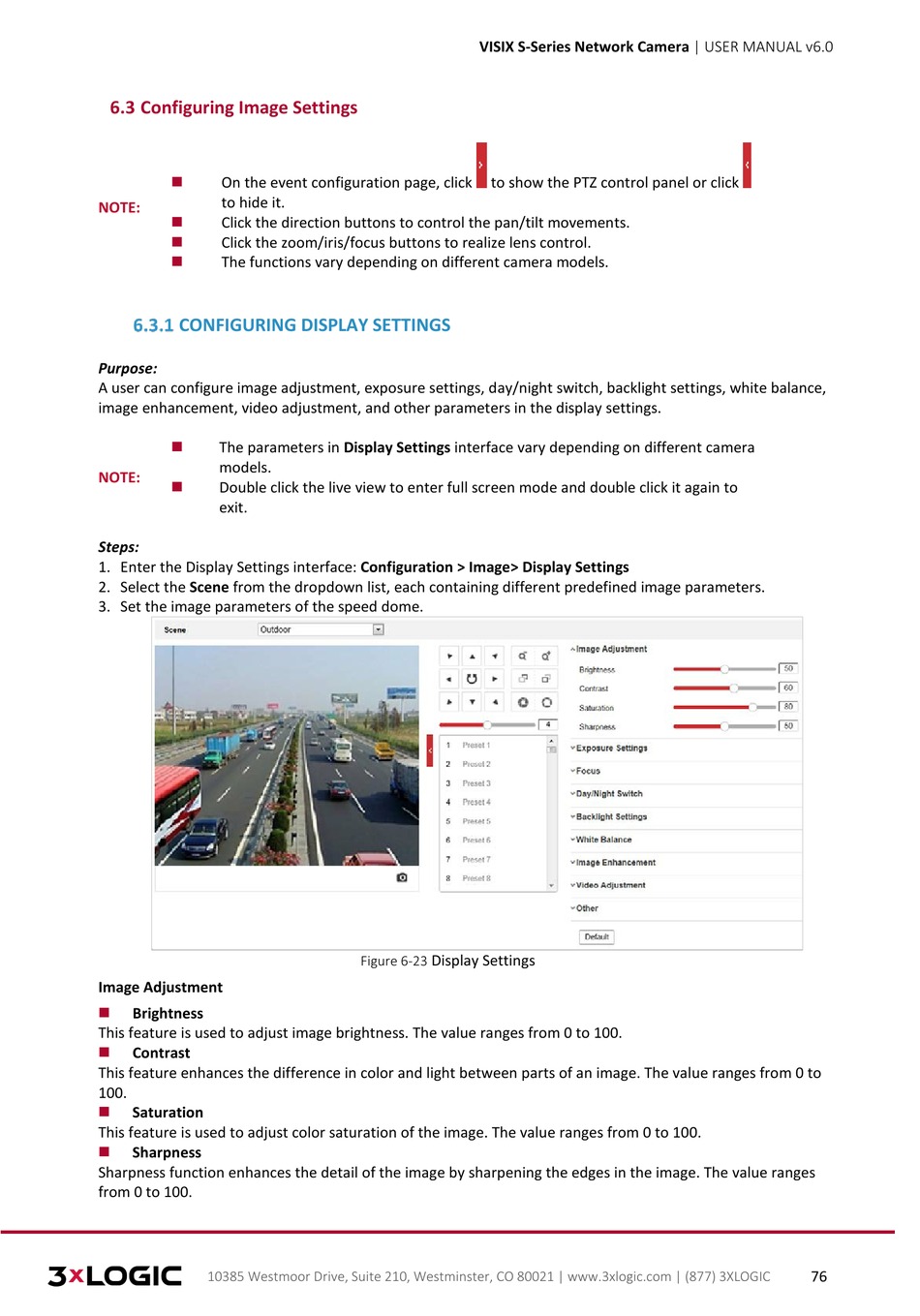

6.3 Configuring Image Settings
On the event configuration page, click
to hide it.
NOTE:
Click the direction buttons to control the pan/tilt movements.
Click the zoom/iris/focus buttons to realize lens control.
The functions vary depending on different camera models.
CONFIGURING DISPLAY SETTINGS
Purpose:
A user can configure image adjustment, exposure settings, day/night switch, backlight settings, white balance,
image enhancement, video adjustment, and other parameters in the display settings.
The parameters in Display Settings interface vary depending on different camera
models.
NOTE:
Double click the live view to enter full screen mode and double click it again to
exit.
Steps:
1. Enter the Display Settings interface: Configuration > Image> Display Settings
2. Select the Scene from the dropdown list, each containing different predefined image parameters.
3. Set the image parameters of the speed dome.
Image Adjustment
Brightness
This feature is used to adjust image brightness. The value ranges from 0 to 100.
Contrast
This feature enhances the difference in color and light between parts of an image. The value ranges from 0 to
100.
Saturation
This feature is used to adjust color saturation of the image. The value ranges from 0 to 100.
Sharpness
Sharpness function enhances the detail of the image by sharpening the edges in the image. The value ranges
from 0 to 100.
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
VISIX S-Series Network Camera | USER MANUAL v6.0
