256M, 512M or 1G. After the selection, the maximum record file size is the value you selected.
Save record files to: Set the destination for manually recorded video files.
Save downloaded files to: Set the destination for files downloaded/exported via playback mode.
Picture and Clip Settings
Set the destination of captured pictures/stillshots and clipped video files. Valid only for media captured
manually via the web browser UI.
Save snapshots in live view to: Set the destination of the manually captured pictures in live view
Save snapshots when playback to: Set the destination of the captured pictures in playback mode.
Save clips to: Set the destination of clipped video files in playback mode.
The user can click Browse to change the directory for saving the clips and pictures, and click
Open to select the desired folder.
Click Save to save the settings.

4.2 Live View

The live view page allows you to view the real-time video, capture images, utilize PTZ control, set/call presets
and configure video parameters.
Log in the network camera to enter the live view page, or you can click Live View on the menu bar of the main
page to enter the live view page.
Menu Bar: Click each tab to enter Live View, Playback, Log and Configuration page respectively.
Display Control: Click available buttons to open corresponding tabs to change stream type and aspect
ratio. Click the plug-ins drop-down to select available plug-in
Live View Window: Displays live video from the camera.
Toolbar: Operations on the live view page, e.g., live view, capture, record, audio on/off, two-way audio,
PTZ Control: Panning, tilting and zooming functions for the camera and the lighter and wiper control (if
aux PTZ functions are supported or an external pan/tilt unit has been installed).
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | | (877) 3XLOGIC
VISIX S-Series Network Camera | USER MANUAL v6.0
View Page

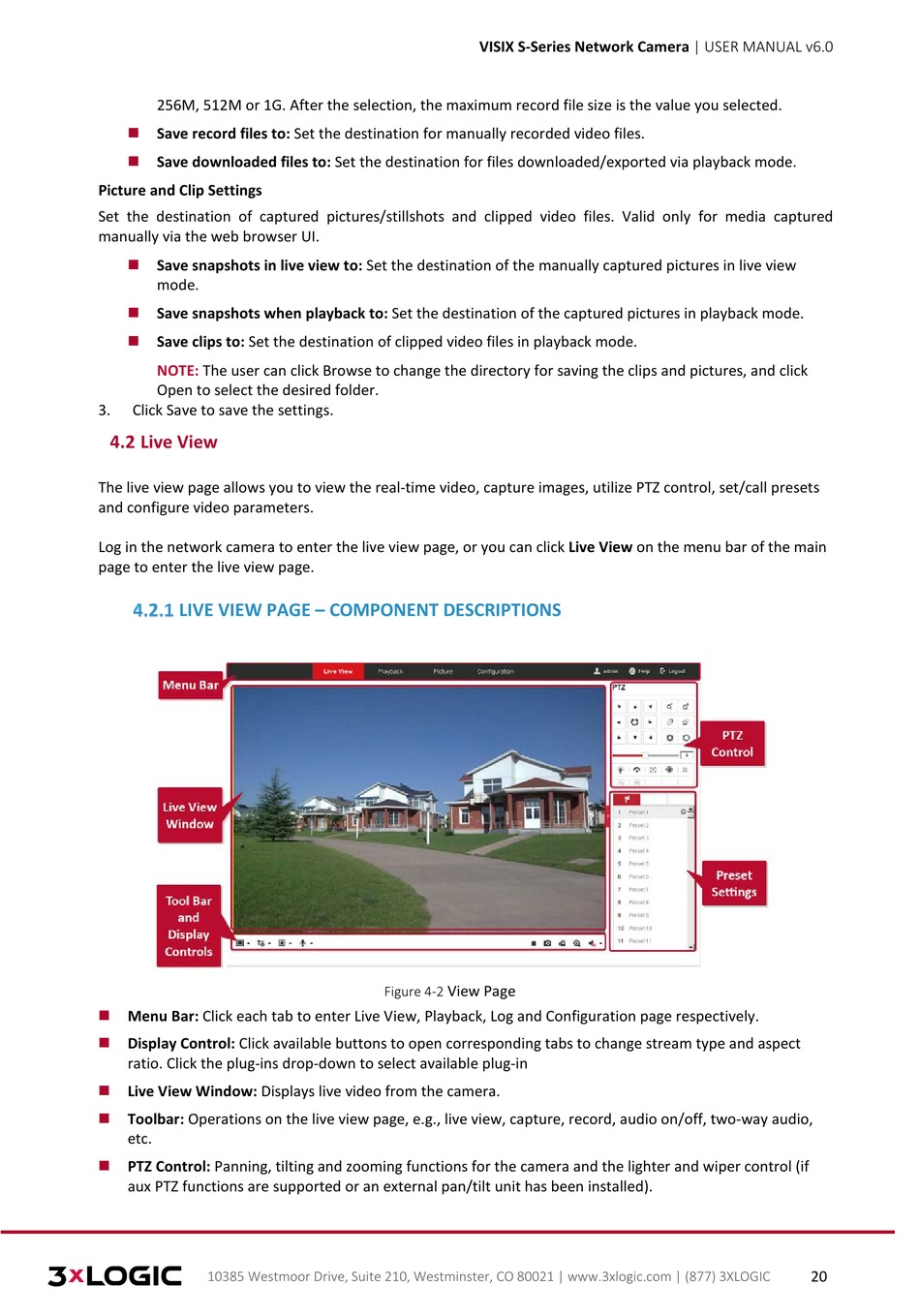

Figure 4-2
