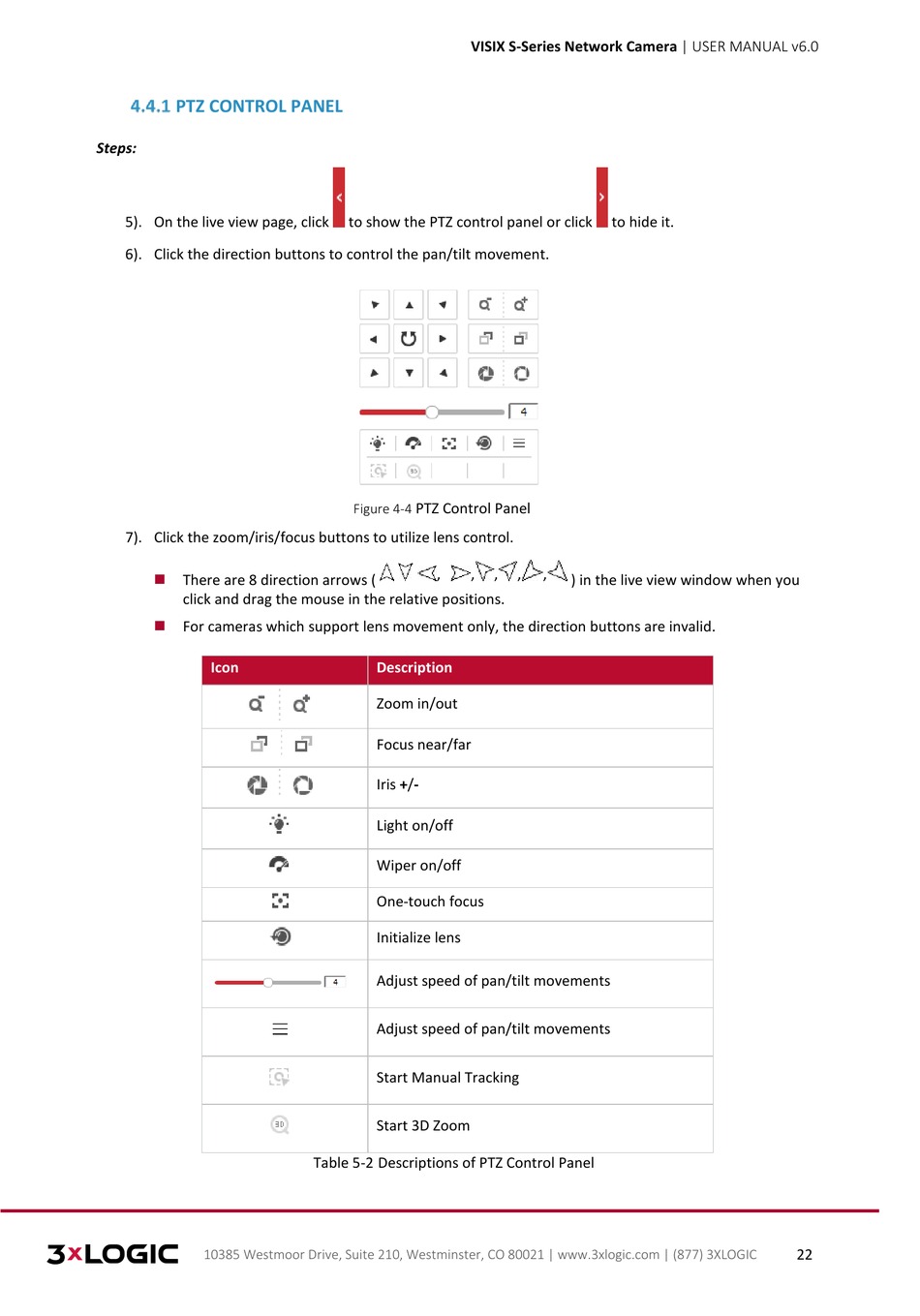

PTZ CONTROL PANEL
Steps:
5). On the live view page, click
6). Click the direction buttons to control the pan/tilt movement.
7). Click the zoom/iris/focus buttons to utilize lens control.
There are 8 direction arrows (
click and drag the mouse in the relative positions.
For cameras which support lens movement only, the direction buttons are invalid.
Icon
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
VISIX S-Series Network Camera | USER MANUAL v6.0
to show the PTZ control panel or click
PTZ Control Panel
Figure 4-4
,
,
Description
Zoom in/out
Focus near/far
Iris +/-
Light on/off
Wiper on/off
One-touch focus
Initialize lens
Adjust speed of pan/tilt movements
Adjust speed of pan/tilt movements
Start Manual Tracking
Start 3D Zoom
Table 5-2 Descriptions of PTZ Control Panel
to hide it.
,
,
,
) in the live view window when you
22
