PRODUCT SETUP
local time these provide. When the RTC is synchronized with a communications protocol providing only UTC (such as PTP or
SNTP), the time offset setting is used to determine local time from the UTC provided. PTP
ALTERNATE_TIME_OFFSET_INDICATOR TLVs are not used to calculate local time.
DAYLIGHT SAVINGS TIME
when IRIG-B time synchronization is active, the local time in the IRIG-B signal contains any daylight savings time offset and
so the DST settings are ignored.

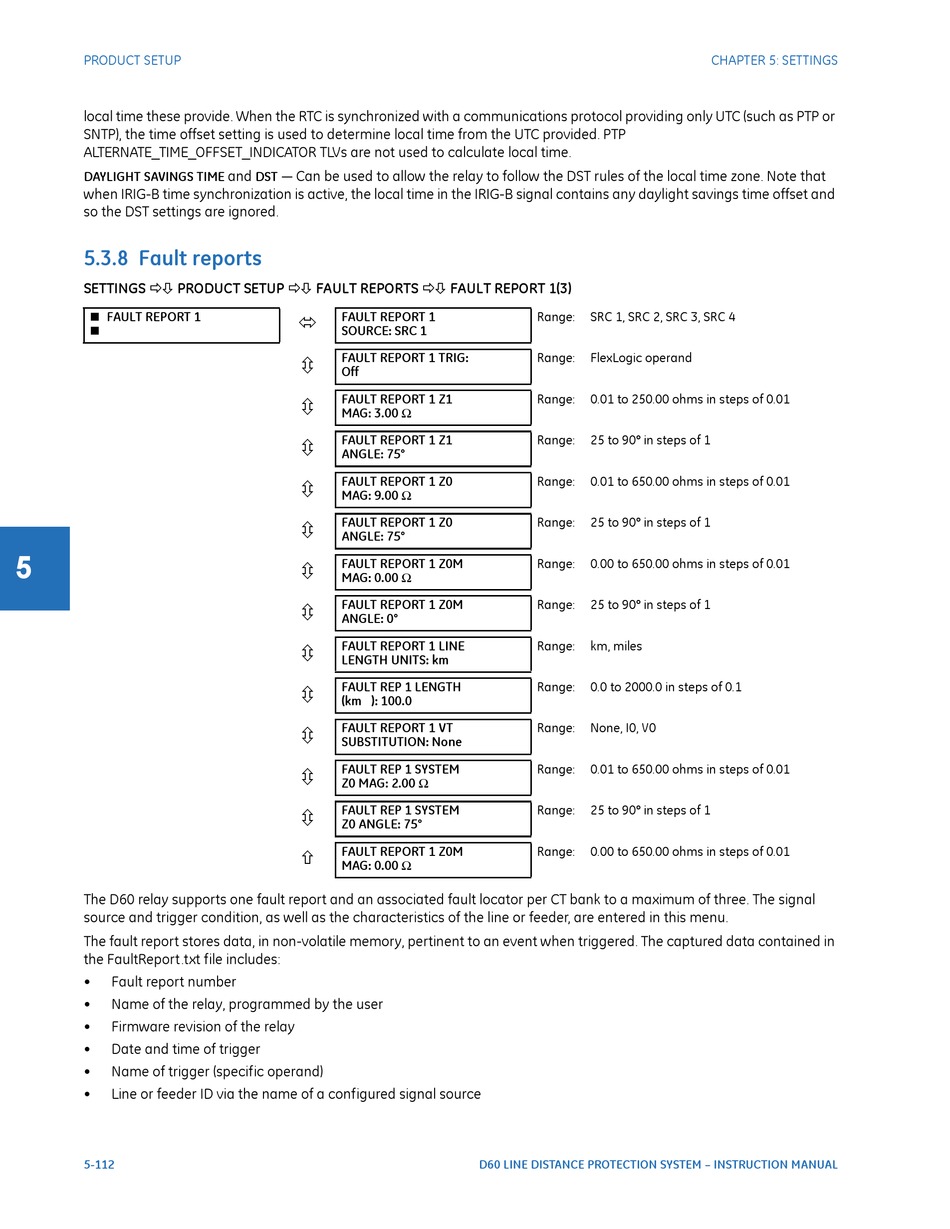

5.3.8 Fault reports
SETTINGS PRODUCT SETUP FAULT REPORTS FAULT REPORT 1(3)
FAULT REPORT 1
5
The D60 relay supports one fault report and an associated fault locator per CT bank to a maximum of three. The signal
source and trigger condition, as well as the characteristics of the line or feeder, are entered in this menu.
The fault report stores data, in non-volatile memory, pertinent to an event when triggered. The captured data contained in
the FaultReport.txt file includes:
•
Fault report number
•
Name of the relay, programmed by the user
•
Firmware revision of the relay
•
Date and time of trigger
•
Name of trigger (specific operand)
•
Line or feeder ID via the name of a configured signal source
5-112
and
— Can be used to allow the relay to follow the DST rules of the local time zone. Note that
DST
FAULT REPORT 1
SOURCE: SRC 1
FAULT REPORT 1 TRIG:
Off
FAULT REPORT 1 Z1
MAG: 3.00 Ω
FAULT REPORT 1 Z1
ANGLE: 75°
FAULT REPORT 1 Z0
MAG: 9.00 Ω
FAULT REPORT 1 Z0
ANGLE: 75°
FAULT REPORT 1 Z0M
MAG: 0.00 Ω
FAULT REPORT 1 Z0M
ANGLE: 0°
FAULT REPORT 1 LINE
LENGTH UNITS: km
FAULT REP 1 LENGTH
(km ): 100.0
FAULT REPORT 1 VT
SUBSTITUTION: None
FAULT REP 1 SYSTEM
Z0 MAG: 2.00 Ω
FAULT REP 1 SYSTEM
Z0 ANGLE: 75°
FAULT REPORT 1 Z0M
MAG: 0.00 Ω
Range:
SRC 1, SRC 2, SRC 3, SRC 4
Range:
FlexLogic operand
Range:
0.01 to 250.00 ohms in steps of 0.01
Range:
25 to 90° in steps of 1
Range:
0.01 to 650.00 ohms in steps of 0.01
Range:
25 to 90° in steps of 1
Range:
0.00 to 650.00 ohms in steps of 0.01
Range:
25 to 90° in steps of 1
Range:
km, miles
Range:
0.0 to 2000.0 in steps of 0.1
Range:
None, I0, V0
Range:
0.01 to 650.00 ohms in steps of 0.01
Range:
25 to 90° in steps of 1
Range:
0.00 to 650.00 ohms in steps of 0.01
D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
CHAPTER 5: SETTINGS
