FLEXLOGIC DESIGN USING ENGINEER
4
The process is as follows:
Modify or create a logic diagram in the Offline Window area of the EnerVista UR Setup software
Compile it and troubleshoot any errors
The logic populates automatically into the FlexLogic Equation Editor
Upload the file to the live device
Monitor the output
This section explains how to use Engineer. It outlines the following topics:
Design logic
Send file to and from device
Monitor logic
View front panel
Generate connectivity report
Preferences
4-64

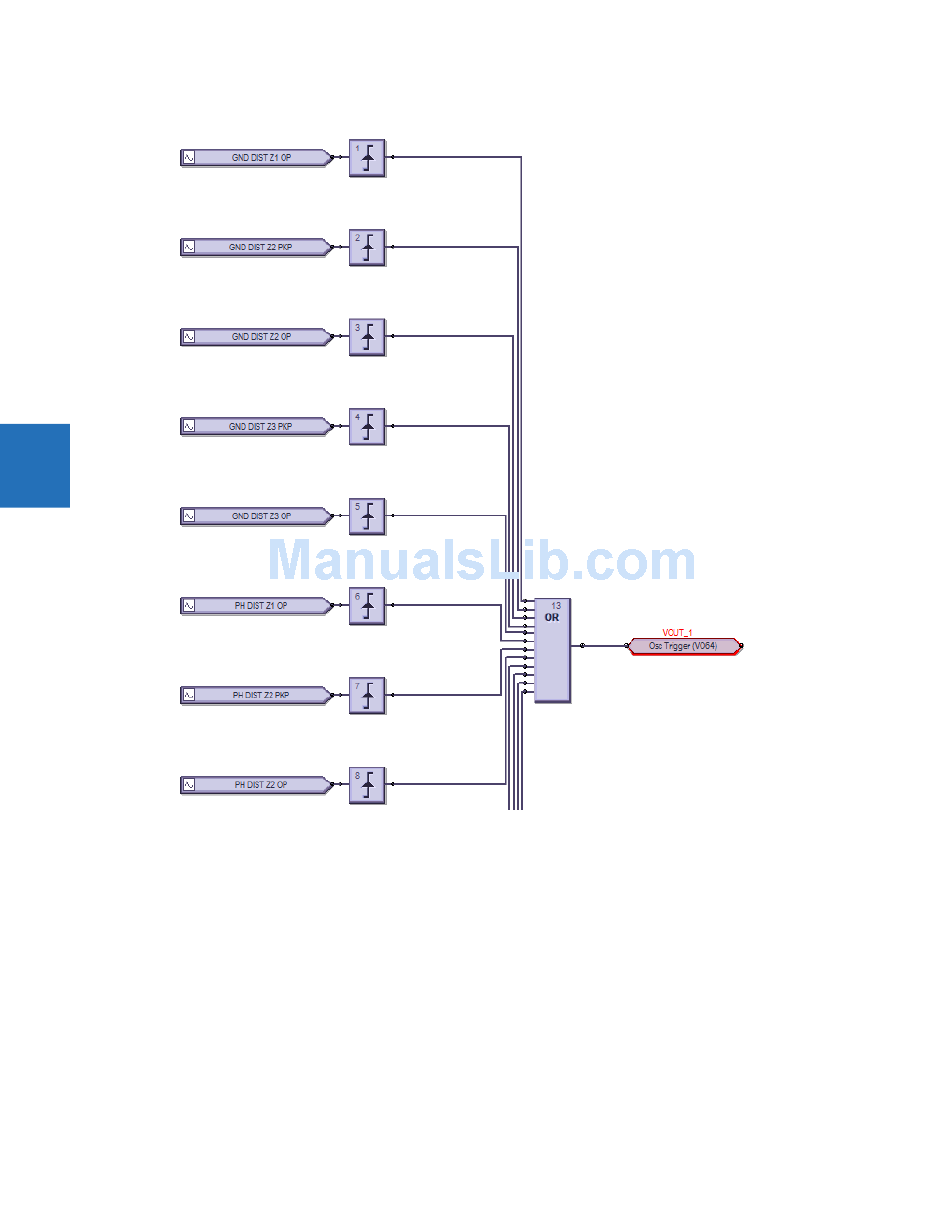

Figure 4-65: Inputs triggering output in Engineer
D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
CHAPTER 4: INTERFACES
