D60 Line Distance Protection System
Chapter 5: Settings

Settings

This chapter outlines front panel and/or software settings. The relay is not taken out of service when saving settings; the
relay is taken out of service when a settings file is written to it. Settings can be viewed remotely in a web browser by
entering the IP address of the relay, accessing the Device Information Menu option, then the Front-Panel Display Report
option.
When indicated that a restart is required for a setting change to take effect, use the Maintenance > Reboot Relay
Command in the software.

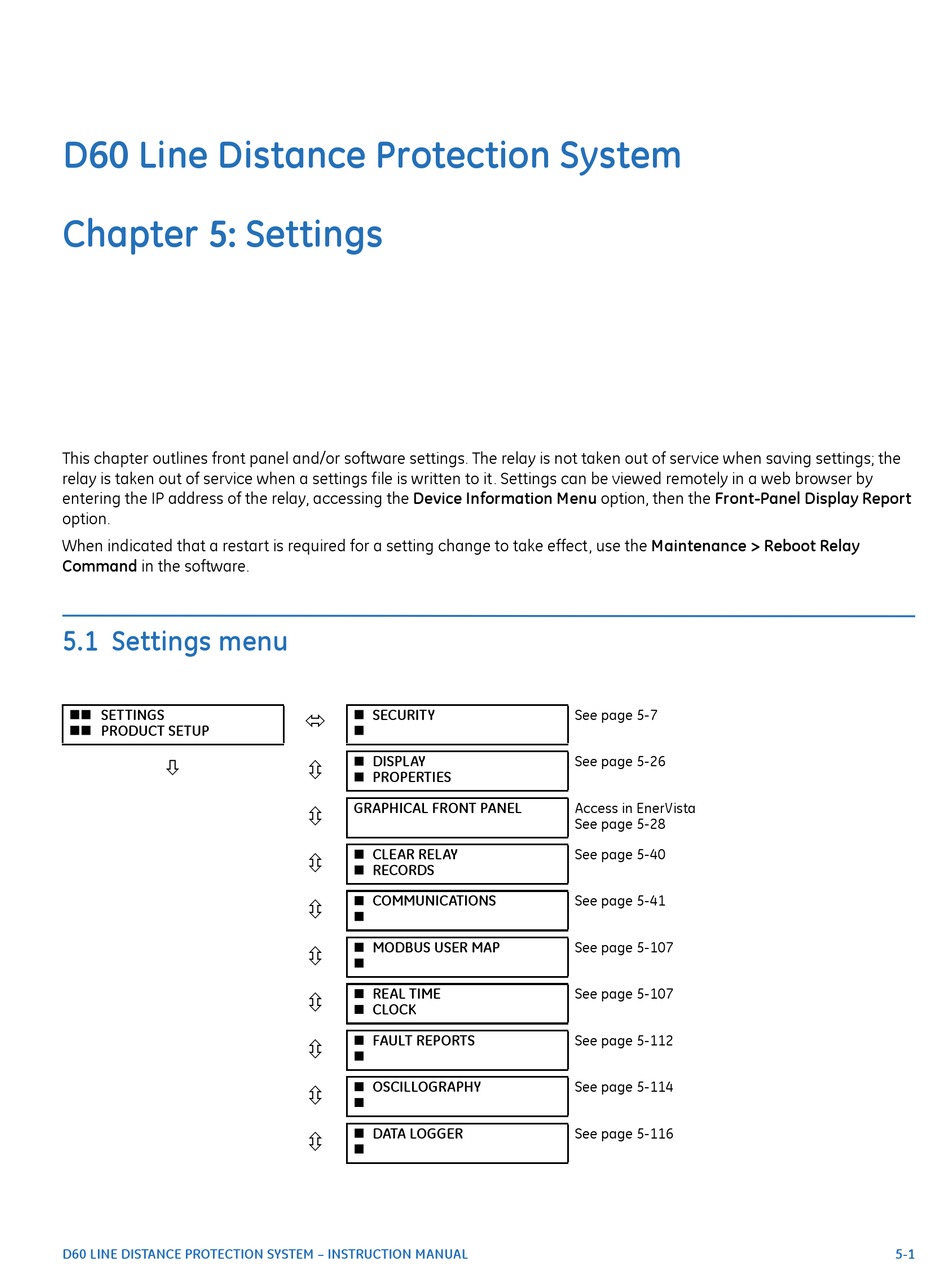

5.1 Settings menu

 SETTINGS
 PRODUCT SETUP
D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
 SECURITY
 DISPLAY
 PROPERTIES
GRAPHICAL FRONT PANEL
 CLEAR RELAY
 RECORDS
 COMMUNICATIONS
 MODBUS USER MAP
 REAL TIME
 CLOCK
 FAULT REPORTS
 OSCILLOGRAPHY
 DATA LOGGER
See page 5-7
See page 5-26
Access in EnerVista
See page 5-28
See page 5-40
See page 5-41
See page 5-107
See page 5-107
See page 5-112
See page 5-114
See page 5-116
