5.5.3.4 Example for use of sources
An example of the use of sources is shown in the following figure. A relay can have the following hardware configuration:
UR
B30, B90, C70, F35, N60, T35
C60, D60, G30, G60, L30, L90, M60, T60
This configuration can be used on a two-winding transformer, with one winding connected into a breaker-and-a-half

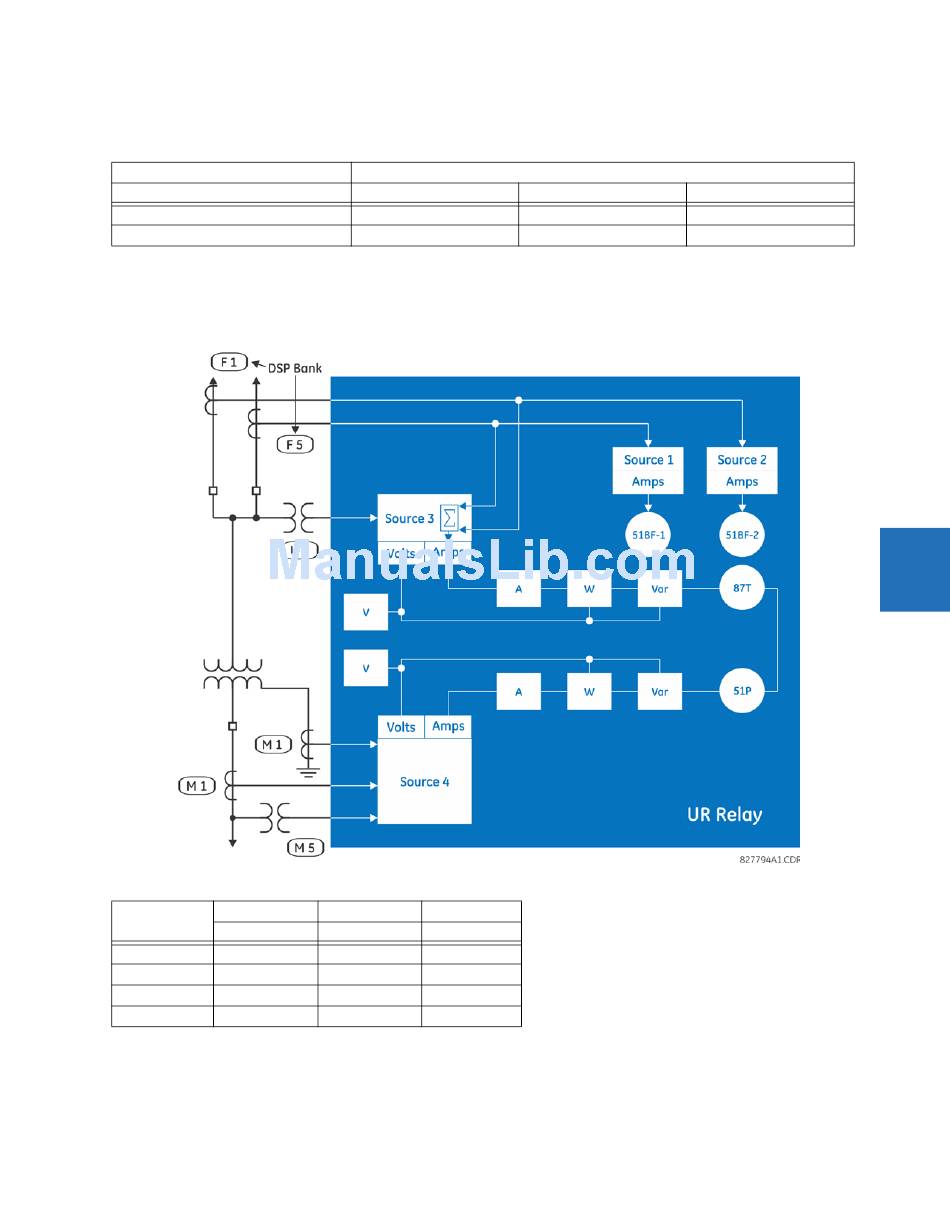

system. The following figure shows the arrangement of sources used to provide the functions required in this application,
and the CT/VT inputs that are used to provide the data.
Y LV
SRC 1
Phase CT M1
Ground CT M1
Phase VT M5
Aux VT None
D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
Increasing slot position letter -->
CT/VT module 1
8 CTs
CTs
Figure 5-68: Example of use of sources
D HV AUX
SRC 2 SRC 3
F1+F5 None
None None
None None
None U1
CT/VT module 2 CT/VT module 3
4 CTs, 4 VTs 4 CTs, 4 VTs
VTs not applicable
