CHAPTER 4: INTERFACES
2.

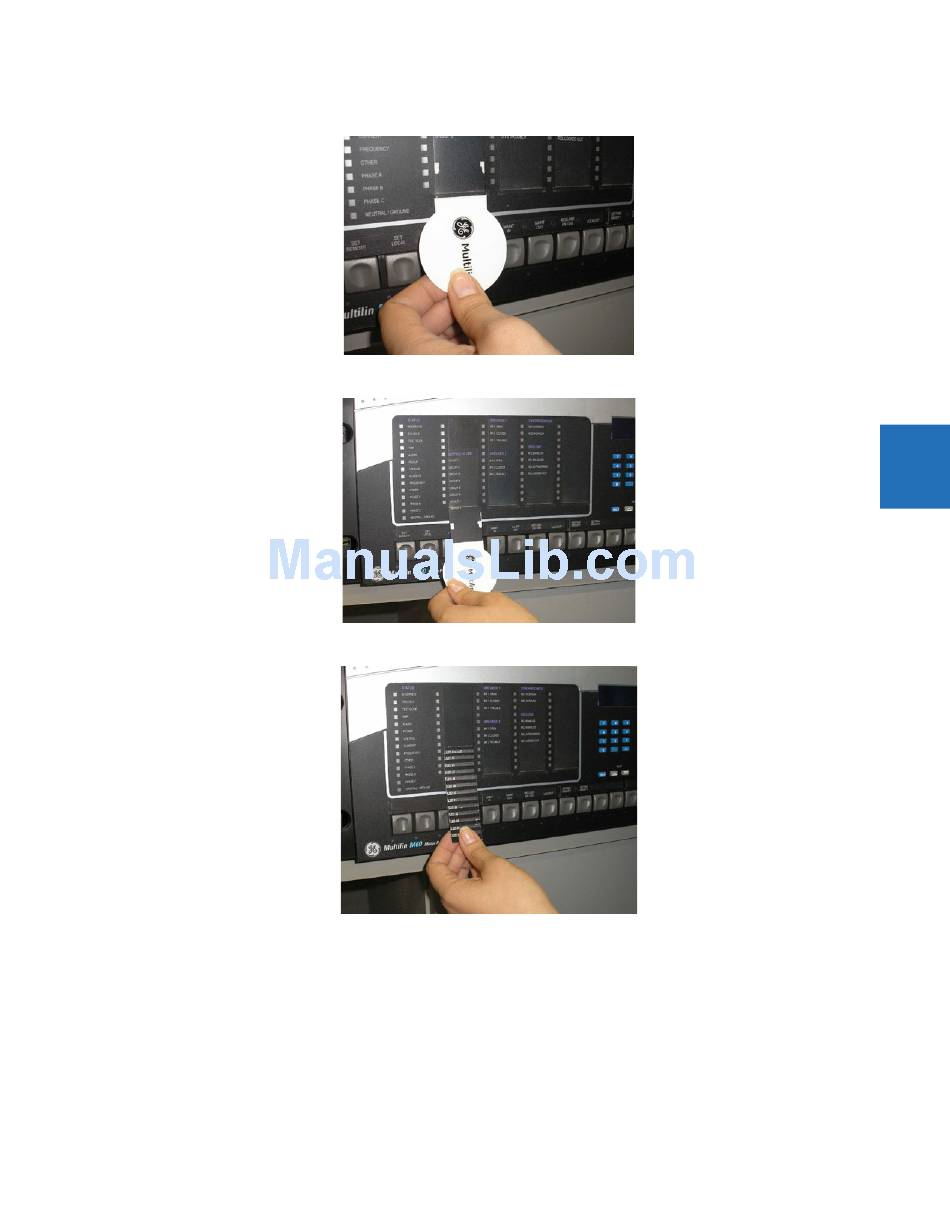

Slide the label tool under the LED label until the tabs snap out as shown. This attaches the label tool to the LED label.
3.
Remove the tool and attached LED label as shown.
4.
Slide the new LED label inside the pocket until the text is properly aligned with the LEDs, as shown.
To remove the user-programmable pushbutton labels from the D60 front panel and insert the custom labels:
1.
Use the knife to lift the pushbutton label and slide the tail of the label tool underneath, as shown. Ensure that the bent
D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
FRONT PANEL INTERFACE
4-47
4
