CHAPTER 5: SETTINGS
STATUS INPUTS 1 to 16
Range: OFF, ON, any FlexLogic operand
Default: OFF
This setting identifies the potential inputs for use in the STATUS INDEX fields, for display of the status of FlexLogic
operands.
A maximum of eight Status Inputs can be used per metering page, and 16 in all metering pages.
Select the metering input from the drop-down list. The options reflect the FlexLogic operands applicable to the D60. They
are inputs for all five metering pages, not just the current page.
D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL

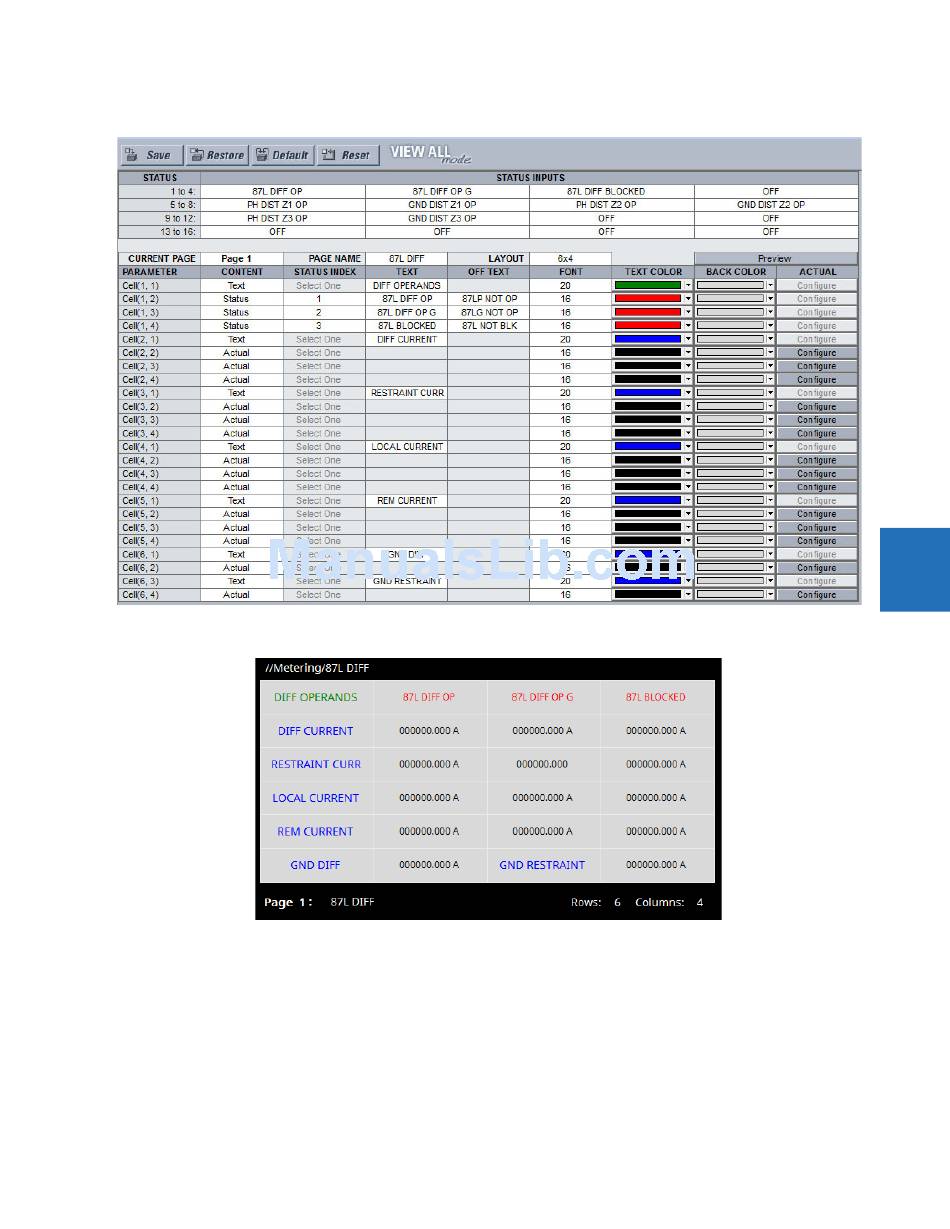

Figure 5-8: Metering Editor window
Figure 5-9: Preview for graphical front panel
