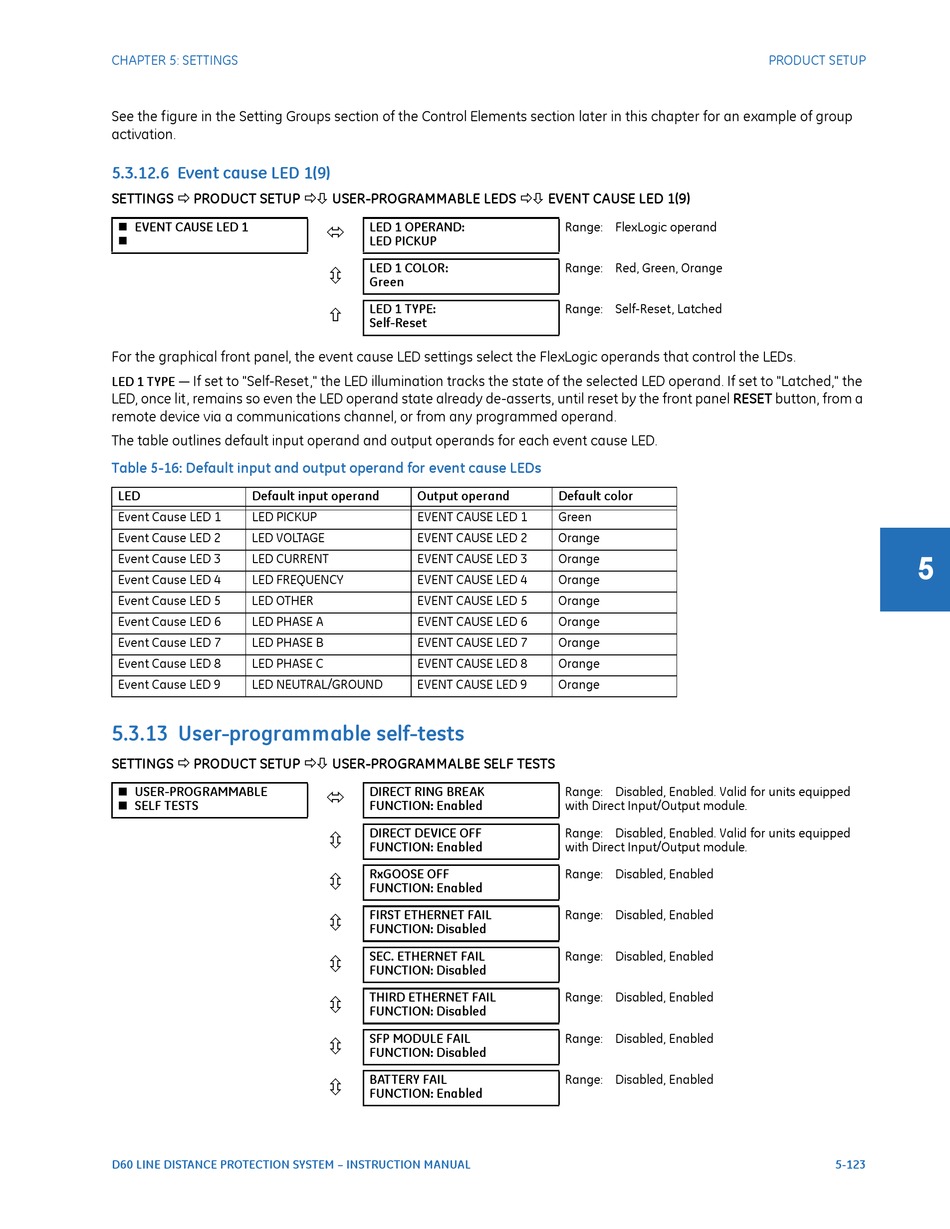

CHAPTER 5: SETTINGS
See the figure in the Setting Groups section of the Control Elements section later in this chapter for an example of group
activation.
5.3.12.6 Event cause LED 1(9)
SETTINGS  PRODUCT SETUP  USER-PROGRAMMABLE LEDS  EVENT CAUSE LED 1(9)
 EVENT CAUSE LED 1

For the graphical front panel, the event cause LED settings select the FlexLogic operands that control the LEDs.
— If set to "Self-Reset," the LED illumination tracks the state of the selected LED operand. If set to "Latched," the
LED 1 TYPE
LED, once lit, remains so even the LED operand state already de-asserts, until reset by the front panel RESET button, from a
remote device via a communications channel, or from any programmed operand.
The table outlines default input operand and output operands for each event cause LED.
Table 5-16: Default input and output operand for event cause LEDs
LED Default input operand
Event Cause LED 1 LED PICKUP
Event Cause LED 2 LED VOLTAGE
Event Cause LED 3 LED CURRENT
Event Cause LED 4 LED FREQUENCY
Event Cause LED 5 LED OTHER
Event Cause LED 6 LED PHASE A
Event Cause LED 7 LED PHASE B
Event Cause LED 8 LED PHASE C
Event Cause LED 9 LED NEUTRAL/GROUND

5.3.13 User-programmable self-tests

SETTINGS  PRODUCT SETUP  USER-PROGRAMMALBE SELF TESTS
 USER-PROGRAMMABLE
 SELF TESTS
D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
LED 1 OPERAND:

LED PICKUP
LED 1 COLOR:

Green
LED 1 TYPE:

Self-Reset
Output operand
EVENT CAUSE LED 1
EVENT CAUSE LED 2
EVENT CAUSE LED 3
EVENT CAUSE LED 4
EVENT CAUSE LED 5
EVENT CAUSE LED 6
EVENT CAUSE LED 7
EVENT CAUSE LED 8
EVENT CAUSE LED 9
DIRECT RING BREAK

FUNCTION: Enabled
DIRECT DEVICE OFF

FUNCTION: Enabled
RxGOOSE OFF

FUNCTION: Enabled
FIRST ETHERNET FAIL

FUNCTION: Disabled
SEC. ETHERNET FAIL

FUNCTION: Disabled
THIRD ETHERNET FAIL

FUNCTION: Disabled
SFP MODULE FAIL

FUNCTION: Disabled
BATTERY FAIL

FUNCTION: Enabled
Range: FlexLogic operand
Range: Red, Green, Orange
Range: Self-Reset, Latched
Default color
Green
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Range: Disabled, Enabled. Valid for units equipped
with Direct Input/Output module.
Range: Disabled, Enabled. Valid for units equipped
with Direct Input/Output module.
Range: Disabled, Enabled
Range: Disabled, Enabled
Range: Disabled, Enabled
Range: Disabled, Enabled
Range: Disabled, Enabled
Range: Disabled, Enabled
PRODUCT SETUP
5
