CHAPTER 3: INSTALLATION
If using a blue or grey Ethernet cable, skip the rest of the this section. If using an orange cross-over Ethernet cable, the
computer needs to be set up as follows.
1.
Use an orange Ethernet cross-over cable to connect the computer to the rear Ethernet port. In case you need it, the
following figure shows the pinout for an Ethernet cross-over cable.
Next, assign the computer an IP address compatible with the relay's IP address.
1.
From the Windows desktop, right-click the My Network Places icon and select Properties to open the network
connections window. Or in Windows 7, access the Network and Sharing Center in the Control Panel.
2.
Right-click the Local Area Connection icon and select Properties.
D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL

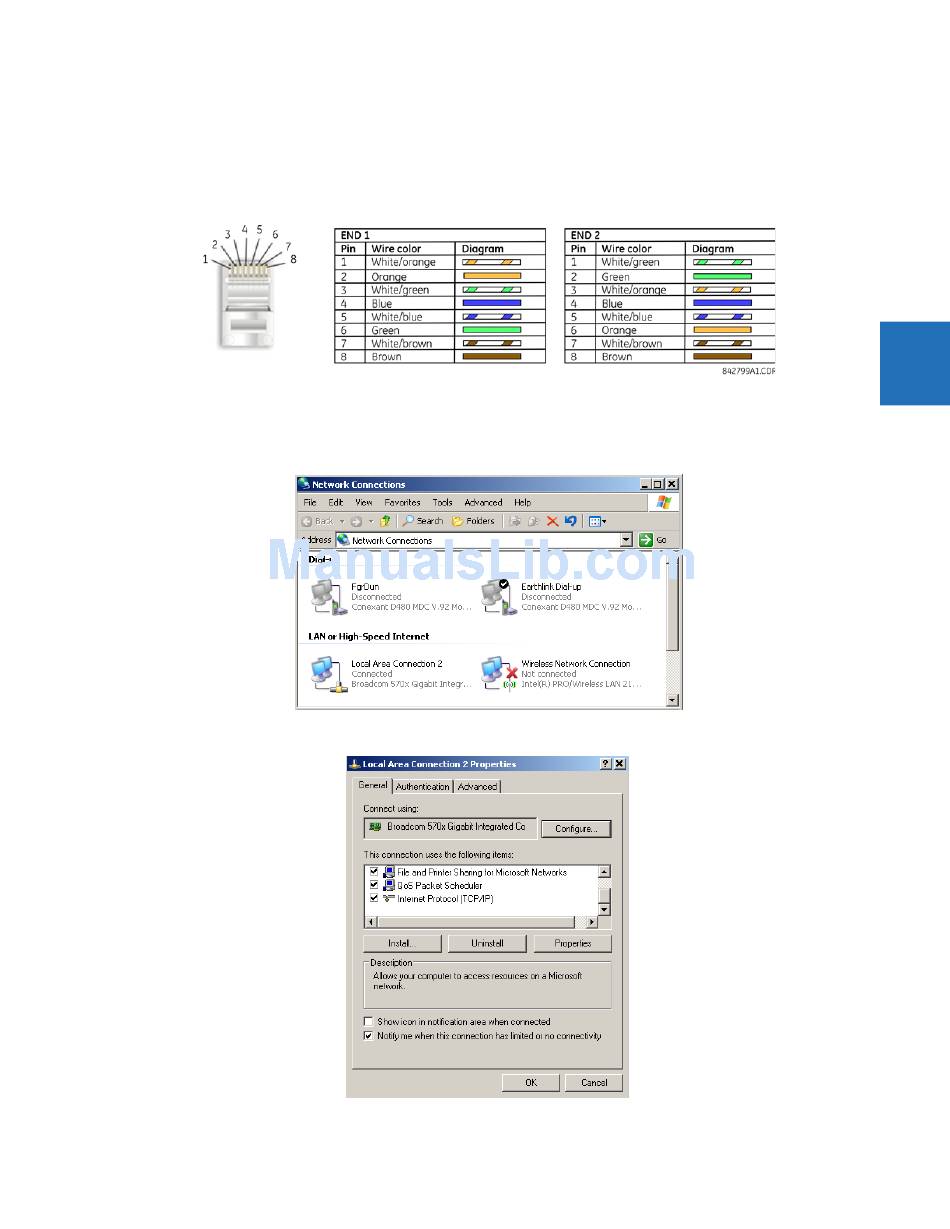

Figure 3-62: Ethernet cross-over cable PIN layout
ADD DEVICE TO SOFTWARE
3-55
3
