Measuring Departure and Approach Angle

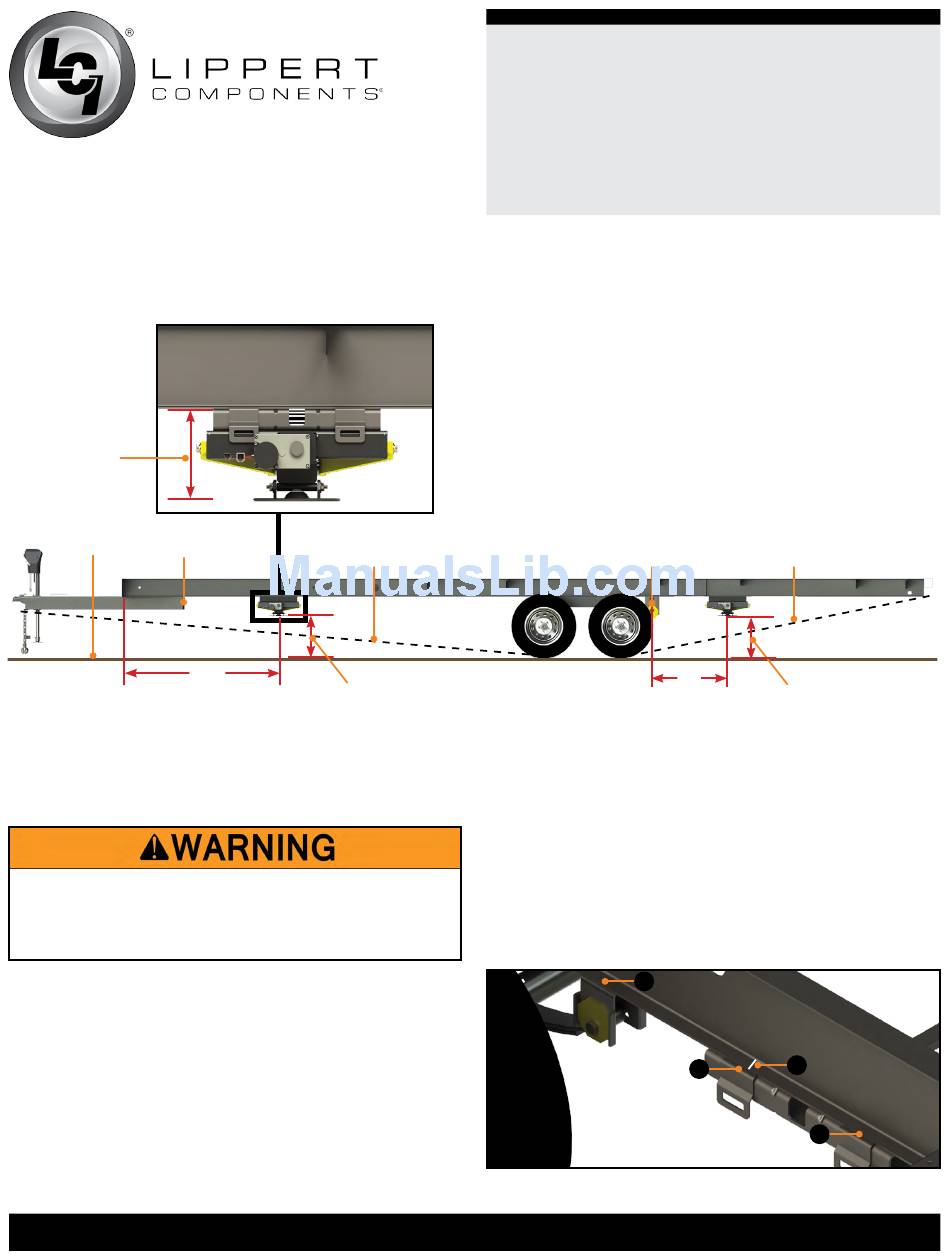

Departure and approach angles are measured by running a string line from the meeting point of the tire and ground up at
an angle to the lowest point on the front or rear of the trailer. These string lines are shown as dotted lines (Fig.1).
NOTE: C-Jacks
shown for
reference only
to mark proper
locations.
1/2
9 " is
required
above the
string line
draw bar
ground
Fig.1 maximum
NOTE: Before checking ground clearance make sure the
trailer is level front to back.

Installation

THE TRAILER MUST BE SUPPORTED PER
MANUFACTURER SPECIFICATIONS BEFORE WORKING
UNDERNEATH. FAILURE TO DO SO MAY RESULT IN
DEATH OR SERIOUS INJURY.

Bolt on Spacer Kits

Rear Spacer Kit
NOTE: This bracing system is to be mounted across the
frame (roadside to curbside) and jacks are to be installed
roadside to curbside as well.
NOTE: Ensure that all wires and hoses are clear from the
path going from the curbside I-beam mounting bracket to
the roadside I-beam mounting bracket before starting the
installation.
lippertcomponents.com
approach angle
string line
60"
ground clearance is
10.5" to 15"
574-537-8900
Ground Control
Leveling OneControl
Touch Panel
Installation and Owner's Manual
(For Aftermarket Applications)
NOTE: Measure from the front of the frame and make a
mark at 60". This will be the maximum allowable distance
for the location of the center of the C-Jack foot pad.
The final location should be as close to the draw bar as
possible, staying within the approach angle (Fig.1).
NOTE: Measure from the center of the rear axle hanger
to the center of the rear C-Jack foot pad. The minimum
allowable distance is 18" and the maximum is 48", staying
within the departure angle (Fig.1).
axle hanger
1. Measure the I-beam mounting bracket and make a mark
at the center. This will be the center of the C-Jack foot pad.
2. Measure from the center of the rear axle hanger (Fig.2A)
and make a mark on the I-beam at 18" (Fig.2B) and at 48"
(not shown) for the minimum and maximum distance. Align
the center of the I-beam mounting bracket between the 18"
mark and the 48" mark, staying within the departure angle
(Fig.1). Ensure the bracket lip (Fig.2C) is flush with the outside
lip of the I-beam.
A
Fig.2
4
Rev: 08.17 - GC
®
TT
®
departure angle
string line
18"
ground clearance is
minimum
10.5" to 15"
48"
maximum
B
C
C
