SpectraLink 8000 Telephony Gateway Administration Guide
Line 1 RX
Line 2 RX
Line 3 RX
Line 4 RX
Line 5 RX
Line 6 RX
Line 7 RX
Line 8 RX
Telephone
Ports
Line 9 RX
Line 10 RX
Note:
RX denotes
Line 11 RX
data received by
the telephone
system from
Line 12 RX
Gateway
Line 13 RX
Line 14 RX
Line 15 RX
Line 16 RX
Unused
Pairs
DO NOT
USE
28

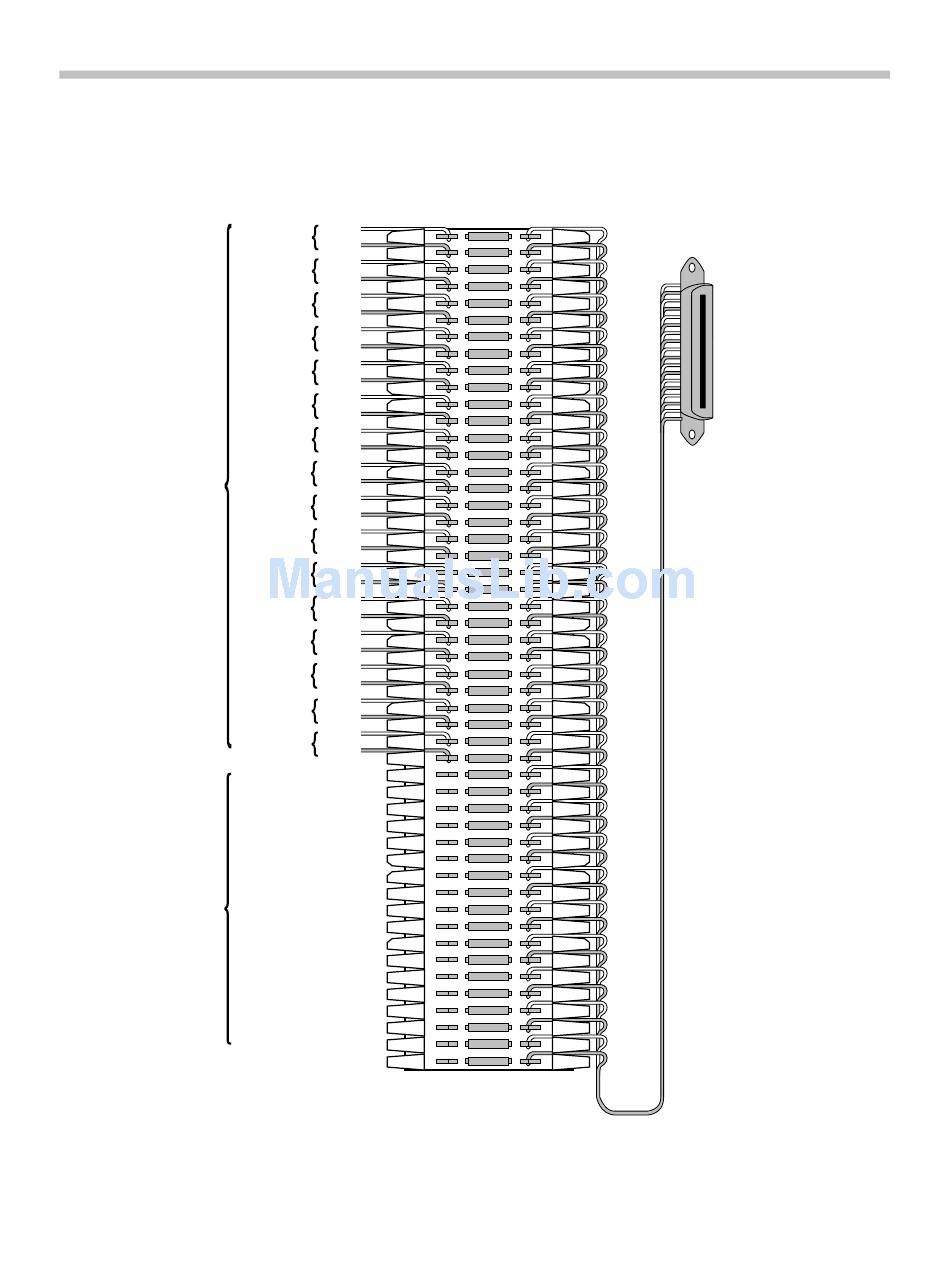

Four-wire digital demarc block (Connector B)
tip
ring
tip
ring
tip
ring
tip
ring
tip
ring
tip
ring
tip
ring
tip
ring
tip
ring
tip
ring
tip
ring
tip
ring
tip
ring
tip
ring
tip
ring
tip
ring
Four-Wire Connector B
25 PAIR MALE
CONNECTOR
CABLE TO
GATEWAY
CONNECTOR B
