Two-wire analog or digital demarc block

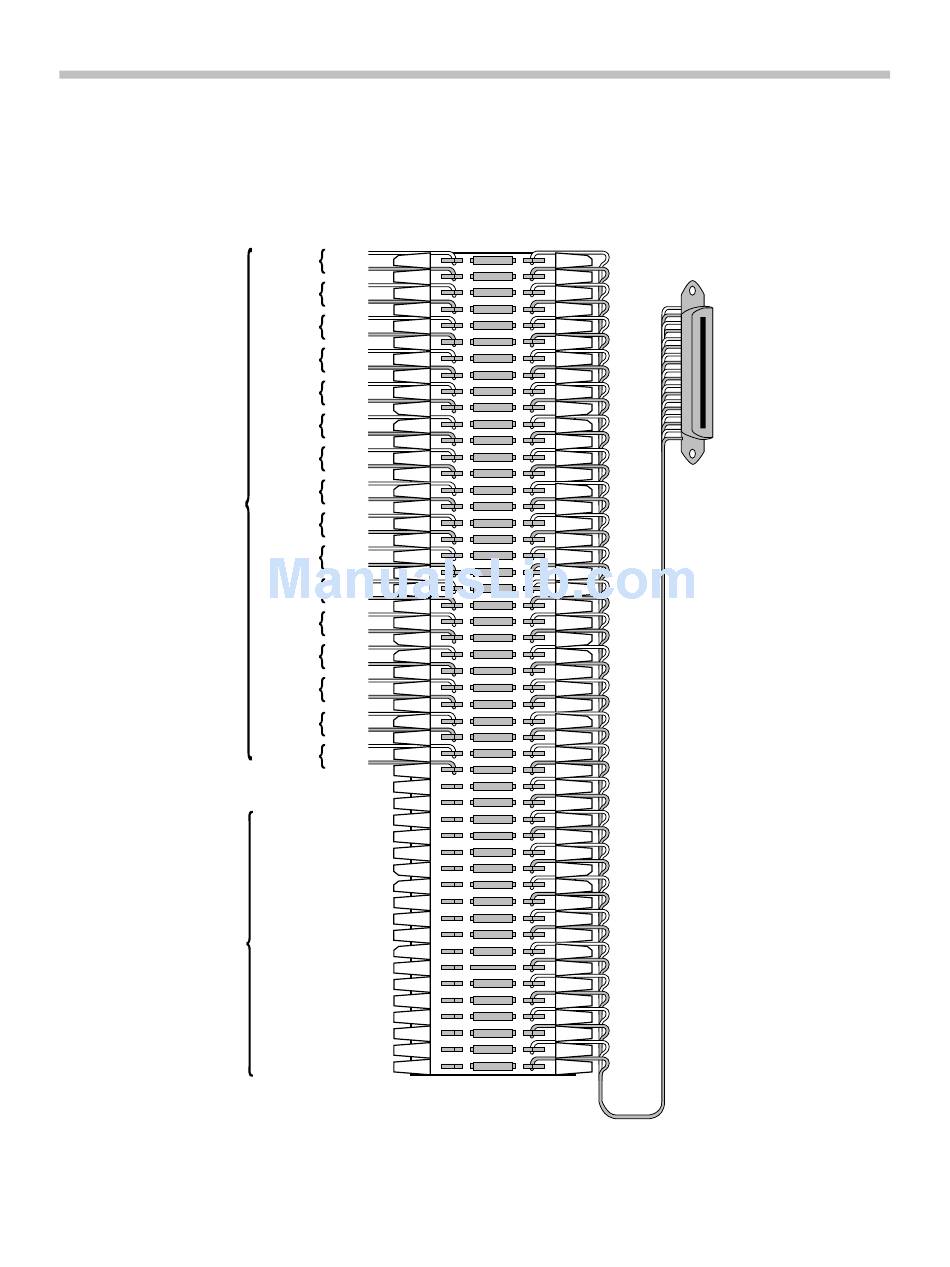

The demarc block for the two-wire analog or digital interface should
be wired as follows.
tip
LINE1
ring
tip
LINE 2
ring
tip
LINE 3
ring
tip
LINE 4
ring
tip
LINE 5
ring
tip
LINE 6
ring
tip
LINE 7
ring
tip
LINE 8
ring
tip
LINE 9
ring
tip
LINE 10
ring
tip
LINE 11
ring
tip
LINE 12
ring
tip
LINE 13
ring
tip
LINE 14
ring
tip
LINE 15
ring
tip
LINE 16
ring
Two-Wire Connector
25 PAIR MALE
CONNECTOR
CABLE TO
GATEWAY
CONNECTOR A
