CSAT-5060 50W C-Band Transceiver
Installation
5. Refer to Figure 2-
24. Position
Unistrut bracket
(Table 2-2, Item 1)
with pipe blocks
(Table 2-2, Item 11)
against the
mounting pole, slide
the pipe blocks
(Table 2-2, Item 11)
until they contact
the mounting pole.
6. Ensure the pipe blocks (Table
2-2, Item 11) are centered to
the Unistrut brackets (Table 2-
2, Item 1).
7. Tighten the hardware.
8. Attach bracket (Table 2-2,
Item 5, Figure 2-1) to the strap
(Table 2-2, Item 4) using two
nuts (Table 2-2, Item 10), two
flat washers, (Table 2-2, Item
7), and two splitlock washers
(Table 2-2, Item 8).
9. Place the assembly against the pole with the strap around the pole and trim the
strap (Table 2-2, Item 4) to fit as shown in Figure 2-23, using the tin snips.
10. Attach bracket (Table 2-2, Item 3, Figure 2-1) to the strap (Table 2-2, Item 4)
using two nuts (Table 2-2, Item 10), two flat washers (Table 2-2, Item 7), and
two splitlock washers (Table 2-2, Item 8).
11. Slide tensioner bracket (Table 2-2, Item 2) into channel of the top Unistrut
bracket (Table 2-2, Item 1).

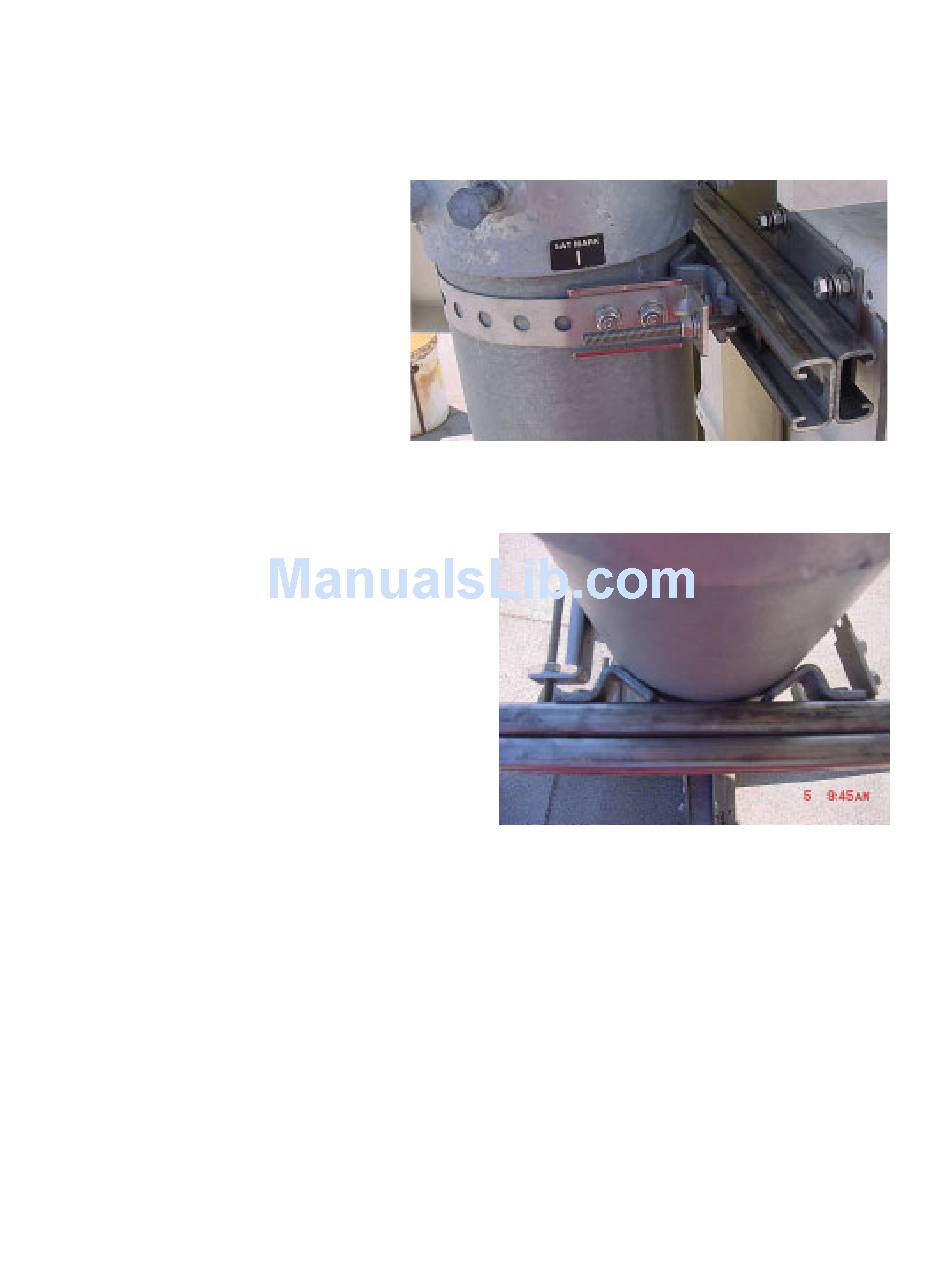

Figure 2-23. Pipe Blocks

Figure 2-24. Looking down at Pipe Blocks
