CSAT-5060 50W C-Band Transceiver
Installation
14. Repeat procedure for second Unistrut bracket.
15. Install brackets (Table 2-3, Item 1, Figure 2-2) and secure to Unistrut bracket
with bolts (Table 2-2, Item 6), flat washers (Table 2-3, Item 2) and split lock
washers (Table 2-2, Item 4).
IMPORTANT
16. Install four bolts (Table 2-3, Item 6, figure 2-2), flat washers (Table 2-3, Item
2) and splitlock washers (Table 2-3, Item 3) on the CSAT unit.
17. Lift the CSAT unit and slide bolts
(Table 2-3, Item 6) into the grooves
of the brackets (Table 2-3, Item 1).
18. Ensure the washers are against the
bracket.
19. Tighten the bolts.
Ensure the brackets are centered in each Unistrut. Ensure the
unit is positioned with the fan facing outward and free of any
obstructions. Do not tighten bolt (Table 2-3, Item 5) at this time.
2–9
MN/CSAT506050.IOM

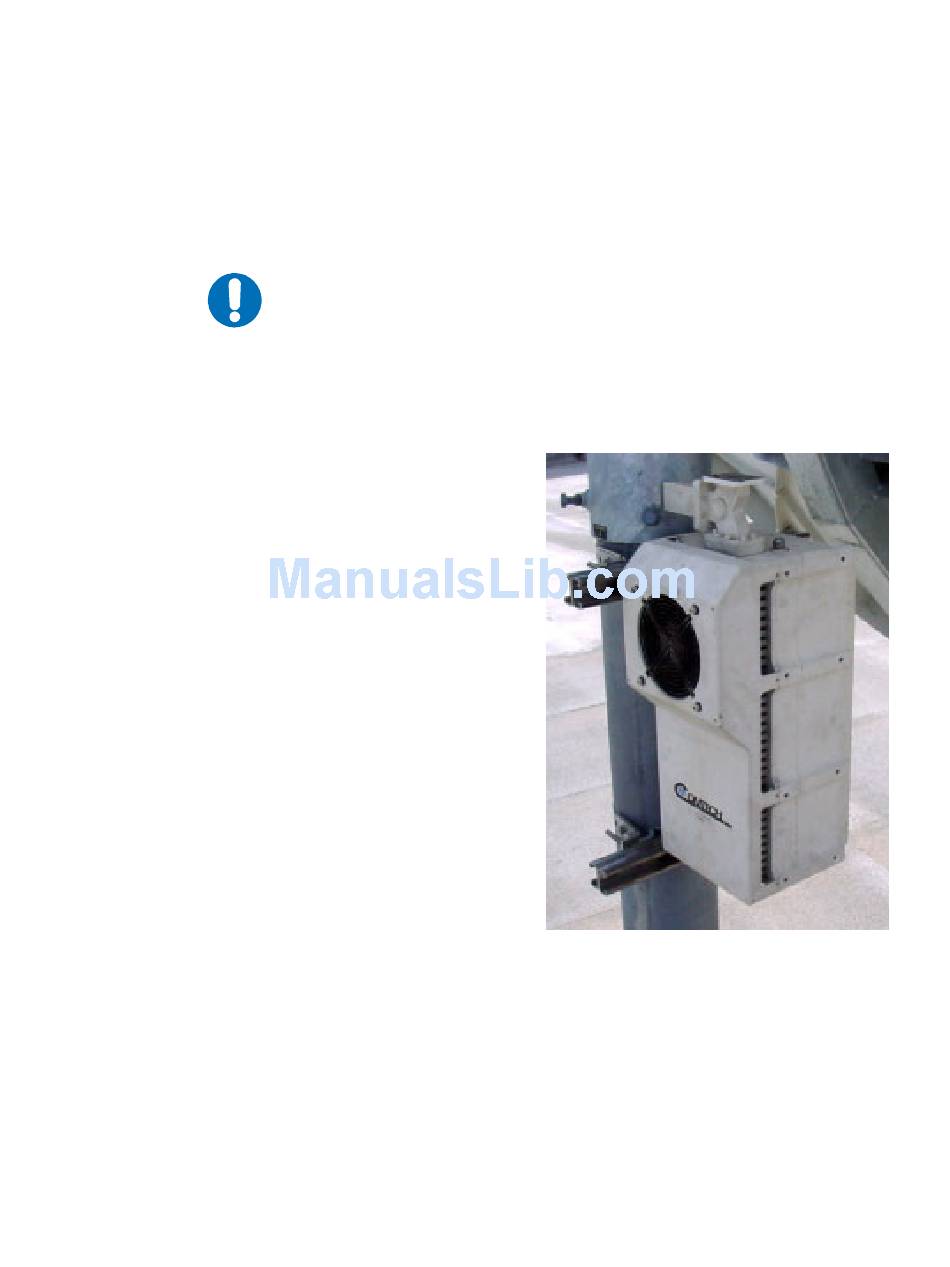

Figure 2-7. Install CSAT 50 Watt Unit

Revision 0
