CSAT-5060 50W C-Band Transceiver
Installation
Item No. Part No.
1 FP/WG0034
2 FP/WG0043
3 GA/GSKTCP137FUL
4 HW/M5FLAT
5 HW/M5LOCK
6 HW/M5X.08X12MMHEX
7 SW/WG3AGSM

Table 2-12. Waveguide Switch, TX 1:1, AS/0462

Nomenclature
Waveguide Termination, Small Fins
Waveguide CPRG137, 90° "E" 5.50 Flex x 2.00
Gasket, CP137, Full Thick
Washer, M5 Flat
Lockwasher, M5 SS, Metric
Bolt, M5X.08X12MM Hexhead SS
Switch, CPR137G, +24V, Sealed Metric

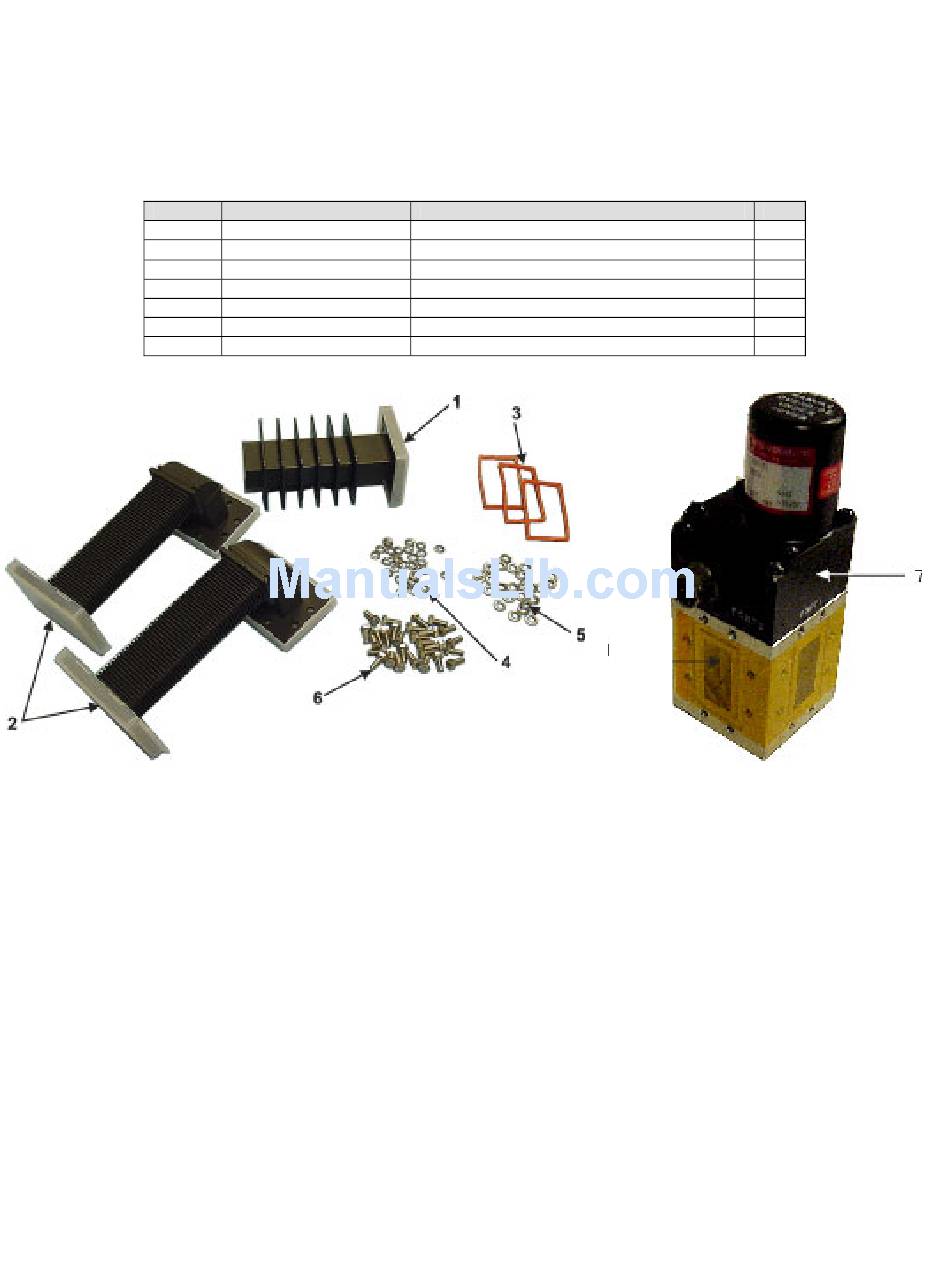

Figure 2-16. Waveguide Switch, TX 1:1, AS/0462

2–18
Revision 0
MN/CSAT506050.IOM
QTY
1
2
3
28
28
28
1
