CSAT-5060 50W C-Band Transceiver
Installation
2.5 C I
ABLE NSTALLATION
Take care during cable installation. Install the cables using the most direct route
and secure with clamps and ties. Avoid all sharp bends.
Cable connectors used in outdoors application shall be sealed to avoid leakage,
particularly, N-type connectors. Moisture can seep into junctions at the plug end
of the connector, between the fixed and movable parts, and where the cable
connects to the connector. Signal attenuation and possible loss of signal can occur
in the presence of moisture. All cable junctions shall be sealed with a self-
amalgamating tape, such as 3M, Type 23 Scotch Self-Amalgamating tape, or
equivalent, including military style (MS) connectors.
The Downconverter RF input connector is wired to supply DC voltage to an LNA.
This voltage is capable of damaging any test equipment connected to the
connector. Do not connect test equipment to this connector without a coaxial DC
WARNING
block between the connector and the test equipment.
NOTE: All cables connecting to the CSAT unit
connectors located on the bottom surface are
customer-supplied.

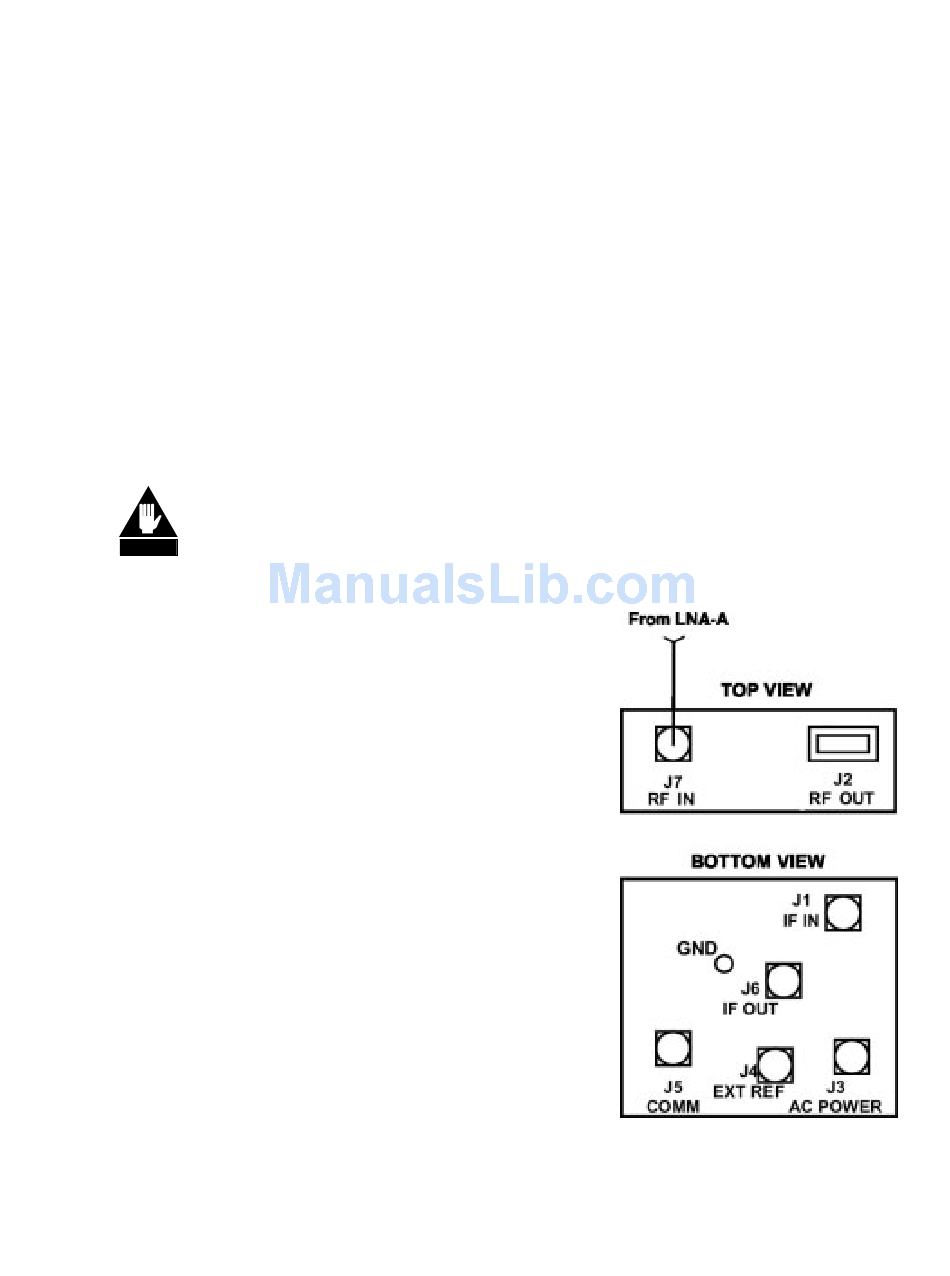

Figure 2-9. Cable Connections

2–11
Revision 0
MN/CSAT506050.IOM
