Comtech EF Data Documentation Update
Subject:
Date:
Document:
Part Number:
Collating Instructions:
Comments:
Change Specifics:
Item Part No.
1 15D1002
2 FP/BR0076
3 28P1084
4 Not Used
5 SW/WG2AGSM
6 Not Used
7 HW/M6X1X15MMHEX
8 HW/M6LOCK
9 HW/M6X1X15MMFLATSS
10 CN/CX50NMALE
11 GA/GSKTCPR229FULL
12 HW/M6FLAT
AS-0502
Filename: T_ERRATA
Errata B
Delete C-Band Filter from Mounting Kit AS/0438
September 17, 2002
CSAT5060 50Watt, C-Band Transceiver, Installation and
Operation Manual, Rev. 0, dated April 23, 2002
MN/C506050.EB0
Attach this page to page 2-14
Deleted C-Band Filter P/N RF/TRF-CBND-WG from Mounting Kit
AS/0438. Filter to be ordered separately.
Nomenclature
Cover
Bracket, Switch
Adapter
Switch, CPR229 +24V, Sealed
Bolt, Hex head
Washer, Lock
Screw, Flat
CN – 5Ω, N Male Termination
Gasket, CPR229
Washer, Flat
TX/RX Filter Support Bracket

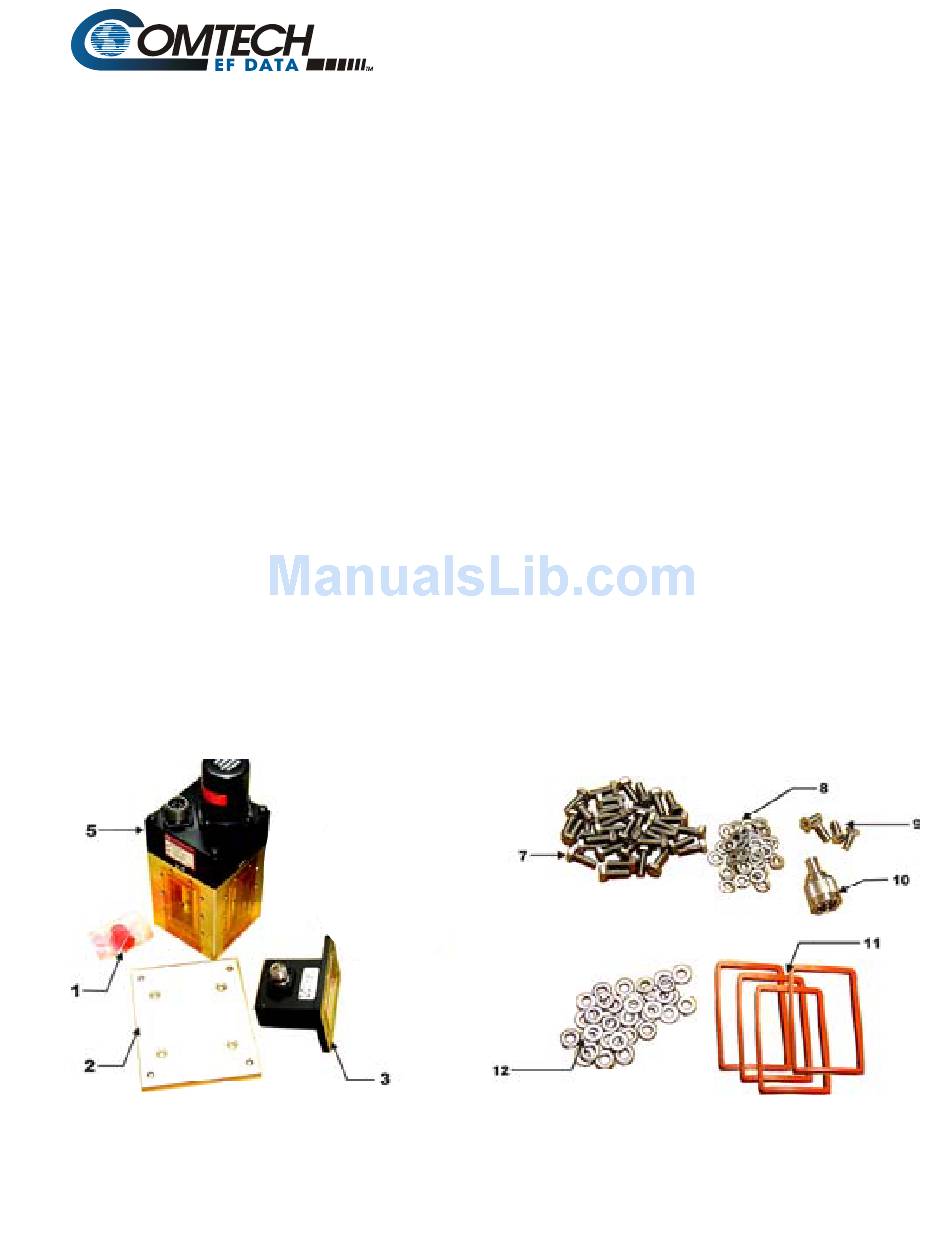

Figure 2-1. Mounting LNA Switch Kit, AS/0438
1
QTY
2
1
1
1
36
36
4
1
4
36
1
