Figure 2-22. Preparing The Pole Bracket - Comtech EF Data CSAT-5060 Installation And Operation Manual

CSAT-5060 50W C-Band Transceiver
Installation
2.6.2.3 A R
SSEMBLE EDUNDANT
1. Place Unistrut bracket
(Table 2-2, Item 1,
Figure 2-1) on a flat
surface.
2. Slide two springnuts
(Table 2-2, Item 9) into
the channel of the
Unistrut bracket.
3. Fasten two pipe blocks (Table 2-2, Item 11) loosely to the springnuts using
two bolts (Table 2-2, Item 6), two flat washers (Table 2-2, Item 7), and two
splitlock washer (Table 2-2, Item 8).
4. Repeat procedure for second Unistrut bracket (Table 2-2, Item 1)
C
ONFIGURATION

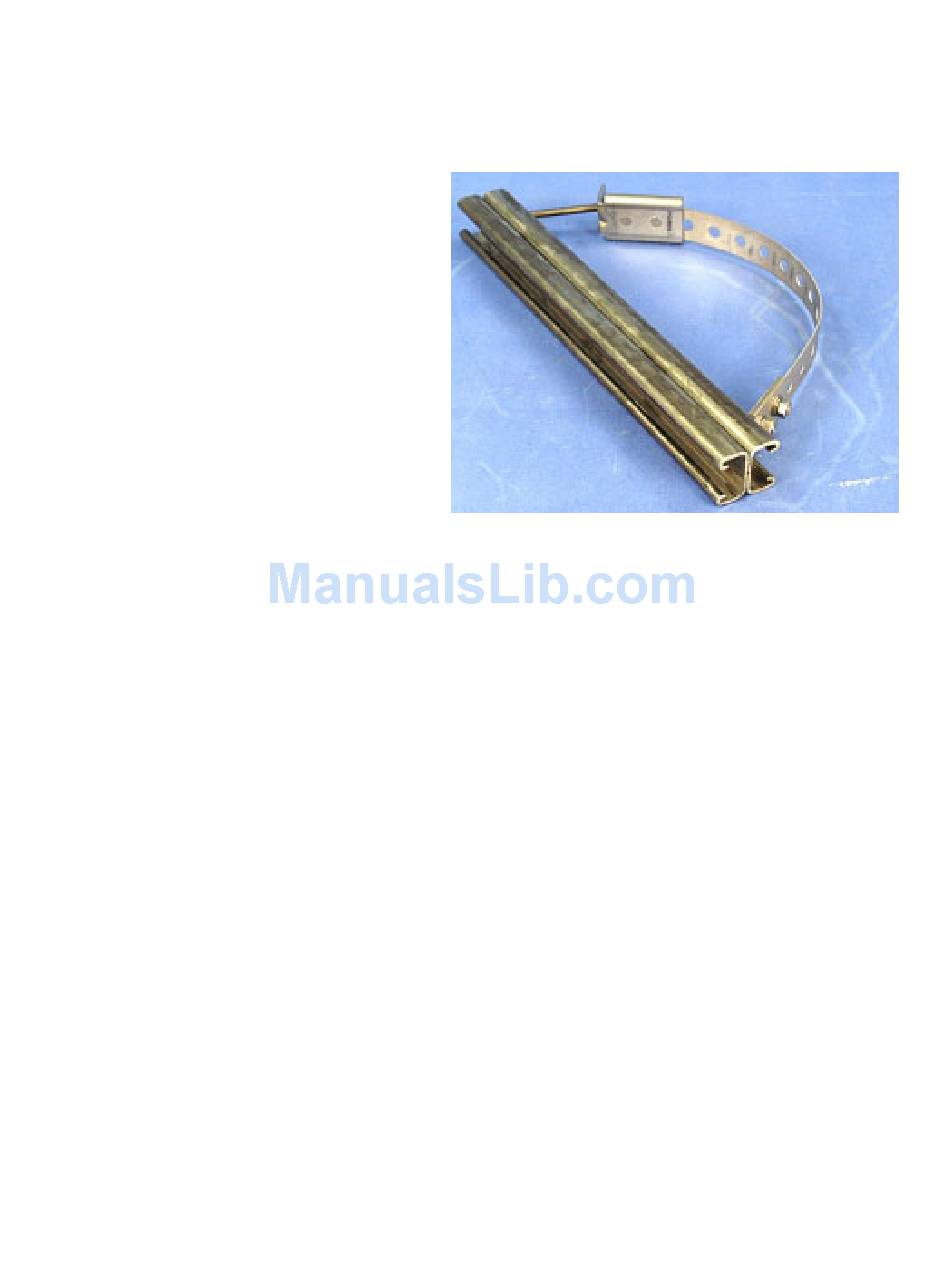

Figure 2-22. Preparing the Pole Bracket

2–24
Revision 0
MN/CSAT506050.IOM
