Step 6 Consider Read Range and Scan Width

a) Verify that the labels to be scanned will pass through the readable range. Opti-
mum decode rates can be expected at the center of the depth of field (halfway
between minimum and maximum read range) for a given bar code density.
b) Note The Approximate Scan Width At The Specific Distance The Labels Will Be
Passing Through.
Read range is the distance from the scanner in which a passing label can be read.
For the MS-850, read range varies from
on label density and optical version of scanner.
Scan width is that distance across the scan arc in which a label can be read. For a
moving label, the closer to the scanner, the shorter the time it will be within the
scan width, and hence the fewer scans it will receive.

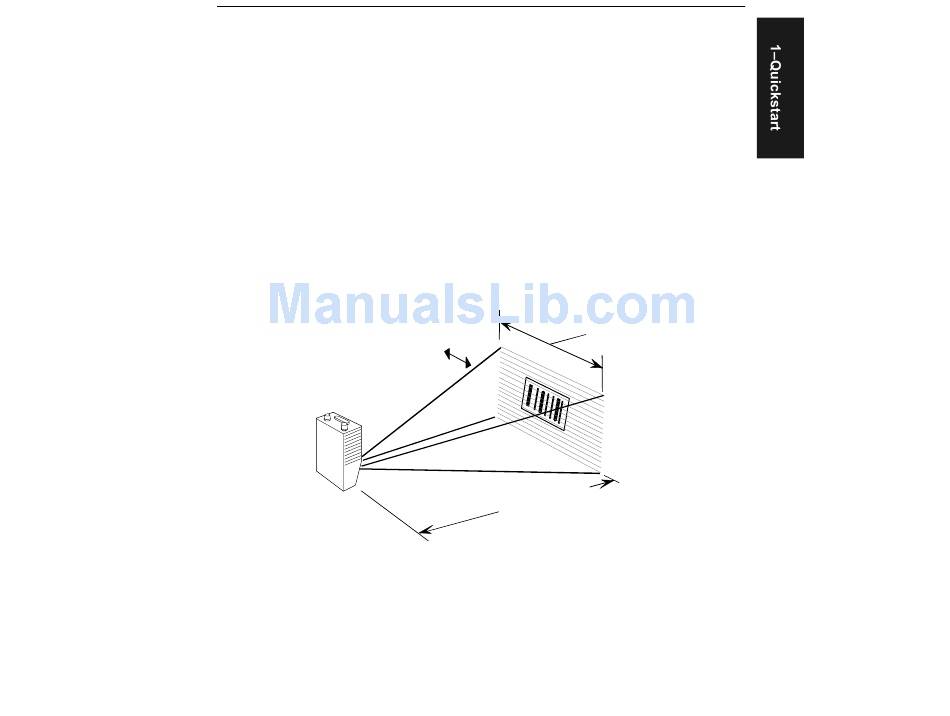

Direction
of travel
Scanner
MS-850 Raster Scanner User's Manual
Consider Read Range and Scan Width
2 to 25 inches (standard model) depending
Scan
Width
Read Range
2" to 25"
(5.08 to 63.5 cm)
