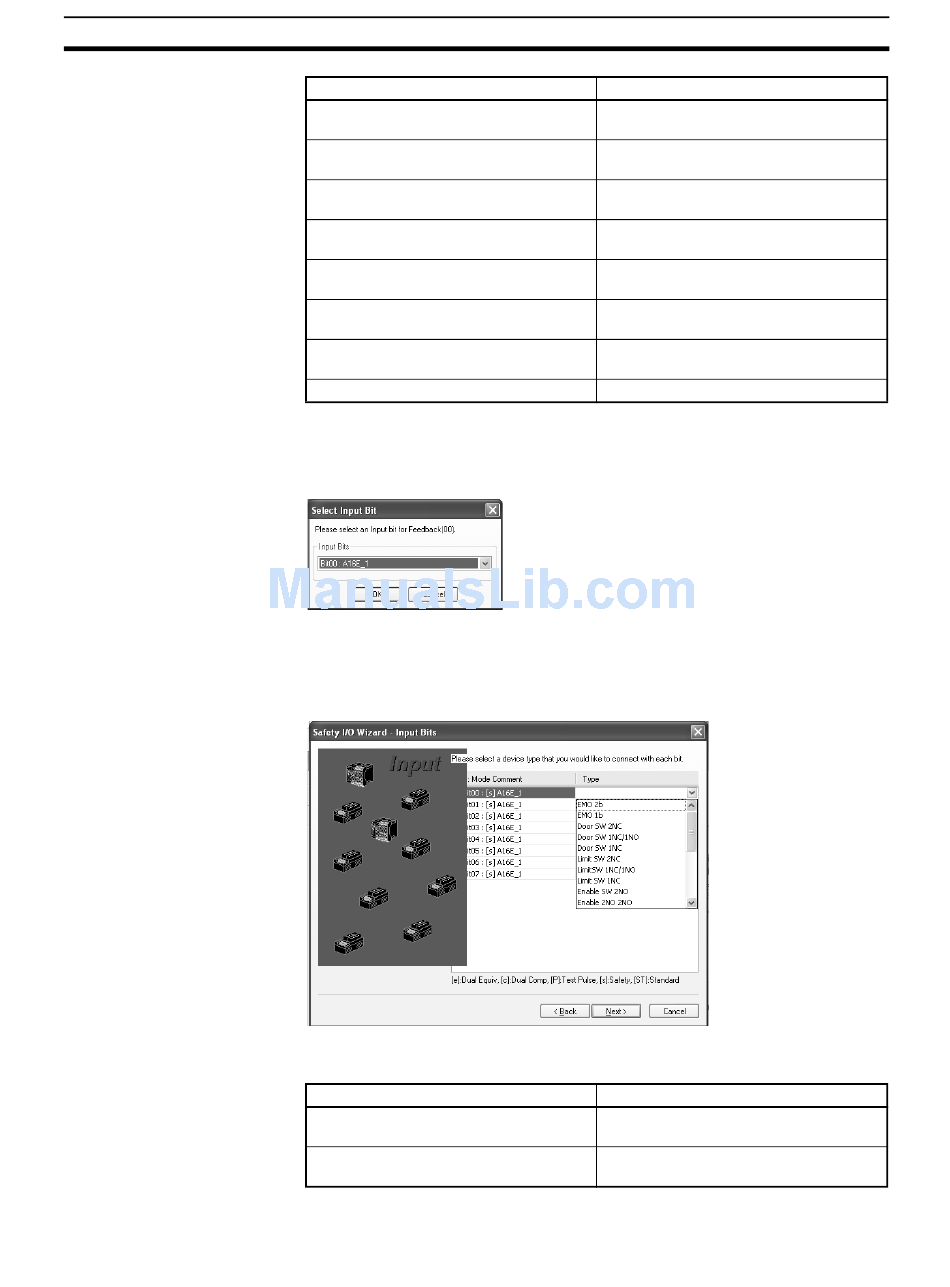

Editing Parameters
Note
Type
Other 2 Safety Outputs w/o pulse
(See note.)
Other Safety Output w/o pulse
2 Contactors with welding check
(See note.)
2 Contactors w/o welding check
(See note.)
1 Contactor with welding check
1 Contactor w/o welding check
Other Standard Output
Not Use
Can be selected only when the terminal number is an even number.
• The following dialog box will be displayed if a type with welding check is
selected when the terminal is set.
• In this dialog box, select the input for which welding is to be checked, and
then click the OK Button.
3. Click the Next Button.
The window for setting input terminals will be displayed.
4. In the above window, specify the type of device to be connected to each
terminal. The following types can be specified.
Type
EMO 2b (DPST-NC, see note 1.)
EMO 1b (SPST-NC)
Section 3-1
Description
Specify to connect to two outputs that do
not require pulse to be checked.
Specify to connect to one output that
does not require pulse to be checked.
Specify to connect to two contactor out-
puts (with welding check for each).
Specify to connect to two contactor out-
puts (with no welding check).
Specify to connect to one contactor out-
put (with welding check).
Specify to connect to one contactor out-
put (with no welding check).
Specify to use the output for non-safety
applications.
Specify to not use the output.
Description
Specify to connect two inputs from an
emergency OFF button.
Specify to use one input from an emer-
gency OFF button.
