Omron DST1-ID12SL-1 Operation Manual page 156

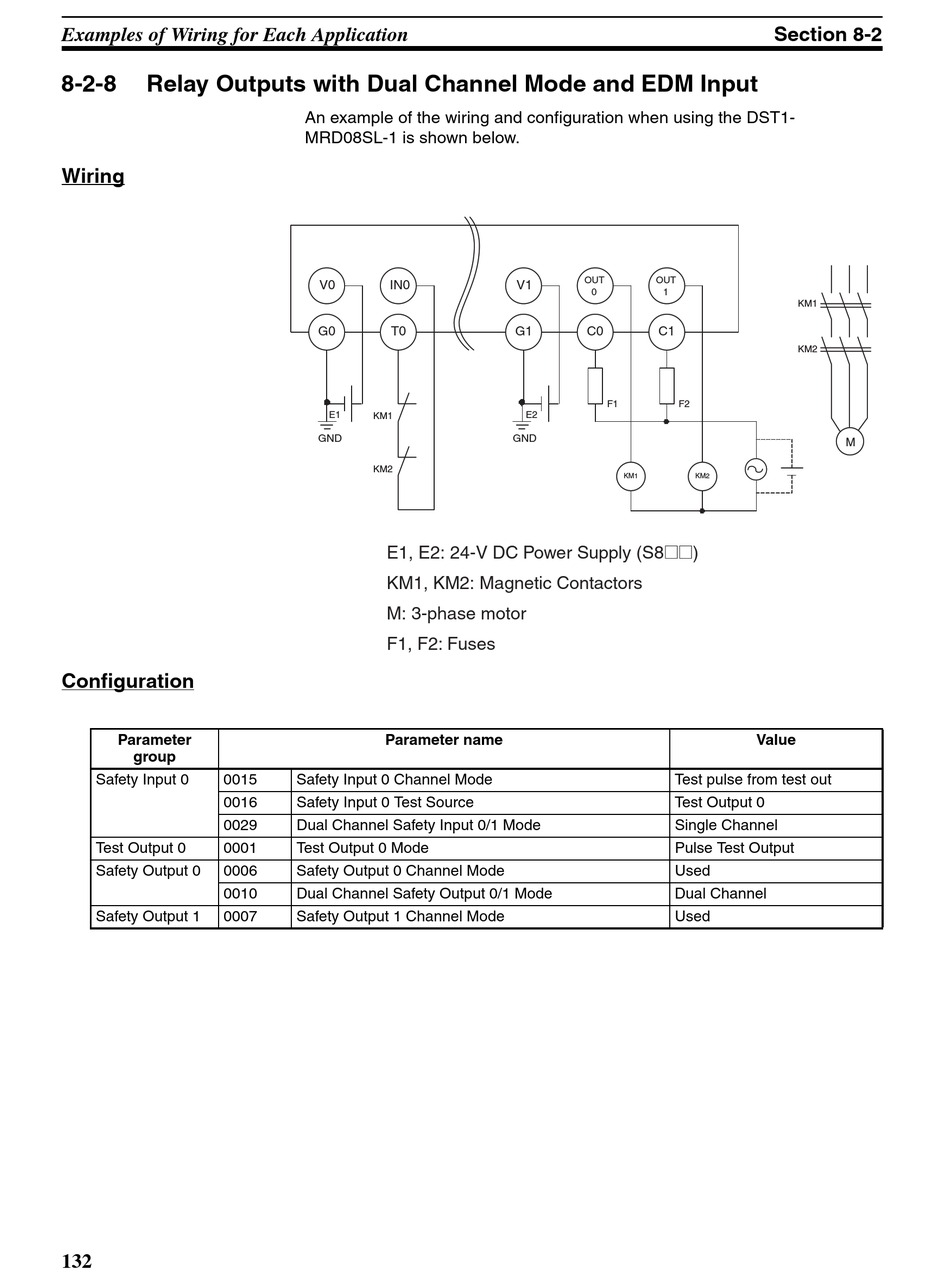

Examples of Wiring for Each Application
8-2-8 Relay Outputs with Dual Channel Mode and EDM Input
Wiring
Configuration
Parameter
group
Safety Input 0 0015
0016
0029
Test Output 0 0001
Safety Output 0 0006
0010
Safety Output 1 0007
132
An example of the wiring and configuration when using the DST1-
MRD08SL-1 is shown below.
V0 IN0
G0 T0
E1
KM1
GND
KM2
E1, E2: 24-V DC Power Supply (S8@@)
KM1, KM2: Magnetic Contactors
M: 3-phase motor
F1, F2: Fuses
Parameter name
Safety Input 0 Channel Mode
Safety Input 0 Test Source
Dual Channel Safety Input 0/1 Mode
Test Output 0 Mode
Safety Output 0 Channel Mode
Dual Channel Safety Output 0/1 Mode
Safety Output 1 Channel Mode
OUT OUT
V1
0 1
G1 C0 C1
F1 F2
E2
GND
KM1
Test pulse from test out
Test Output 0
Single Channel
Pulse Test Output
Used
Dual Channel
Used
Section 8-2
KM1
KM2
M
KM2
Value
