Editing Parameters
3-1
Editing Parameters
Note
3-1-1
Setting Parameters Using the Wizard
54
Device parameters can be edited using any of the following methods.
1. Double-click a device icon.
2. Select a device, and then select Device - Parameter - Edit from the menu
bar.
3. Select a device, and then click the Edit Parameter Button on the toolbar.
4. Right-click the device and select Parameter - Edit.
5. Select the device, and then select Device - Parameter - Wizard.
With Network Configurator version 2.0@ or higher, basic parameters can be
set using a wizard. Using this parameter will reduce errors in the parameter
settings.
With Network Configurator Ver. 2.0@ or higher, I/O parameters for DST1-
series Safety I/O Terminals can be set using a wizard. This section explains
the procedure.

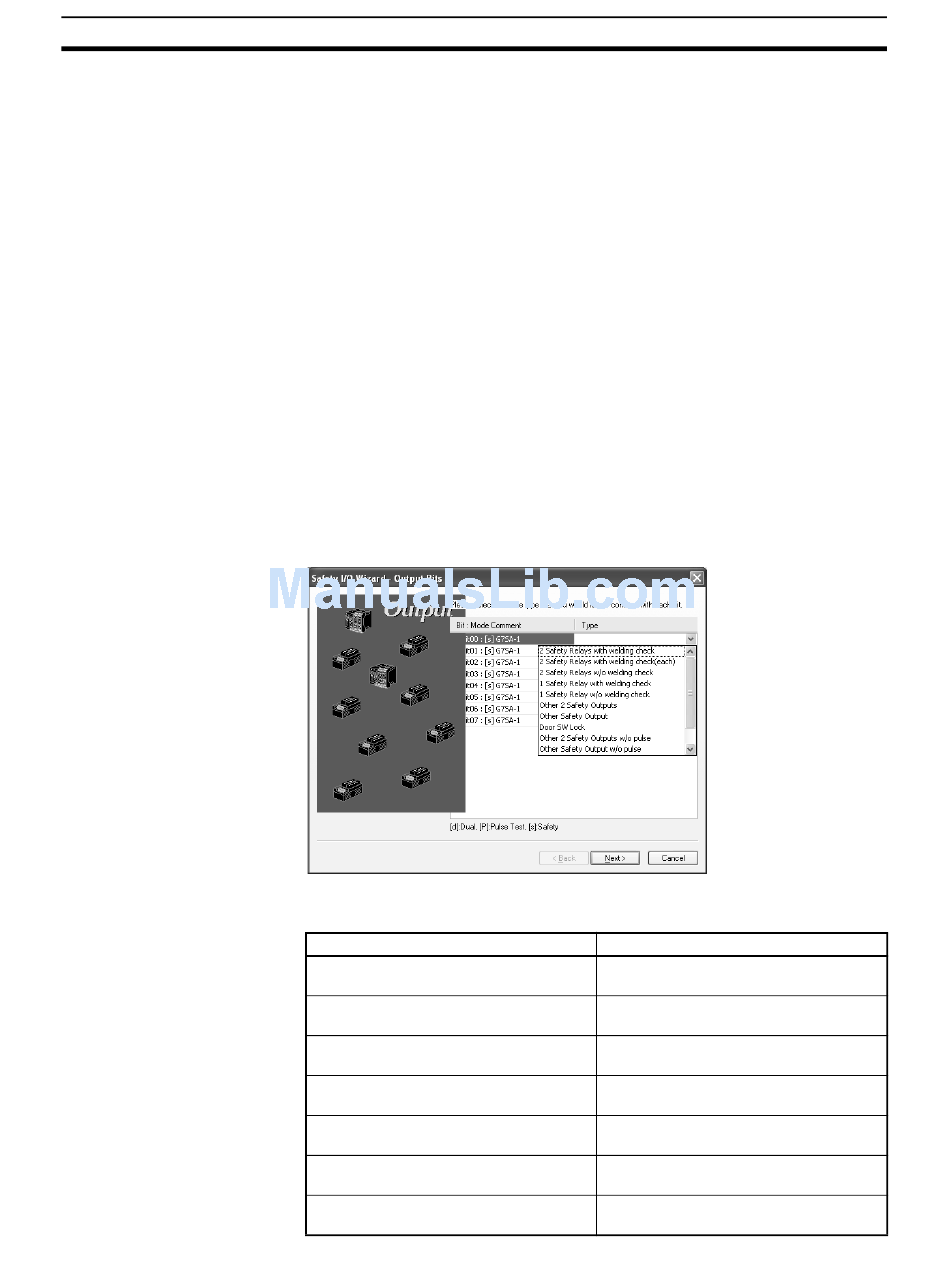

1. Select a DST1-series Safety I/O Terminal, and then select Device - Pa-
rameter - Wizard. The following window will be displayed.
If there are no output terminals (DST1-ID12SL-1), the window for setting
input terminals will be displayed.
2. In the window above, specify the type of device to be connected to each
terminal. The following types can be specified.
Type
2 Safety Relays with welding check
(See note.)
2 Safety Relays w/o welding check
(See note.)
1 Safety Relay with welding check
1 Safety Relay w/o welding check
Other 2 Safety Outputs (See note.)
Other Safety Output
Door SW Lock
Section 3-1
Description
Specify to connect to two Safety Relay
outputs (with welding check for each).
Specify to connect to two Safety Relay
outputs (with no welding check).
Specify to connect to one Safety Relay
output (with welding check).
Specify to connect to one Safety Relay
output (with no welding check).
Specify to connect to two outputs without
welding check.
Specify to connect to one output without
welding check.
Specify to connect to an electromagnetic
door switch.
