Monitoring The Error History - Omron DST1-ID12SL-1 Operation Manual

Monitoring Functions
1-6-3

Monitoring the Error History

Description
Monitoring Using the Network Configurator
The error history of a DST1-series Safety I/O Terminal can be monitored
using the Network Configurator.
Ten records can be saved internally in a DST1-series Safety I/O Terminal.
When the number of errors exceeds the number of records, the oldest records
will be deleted.

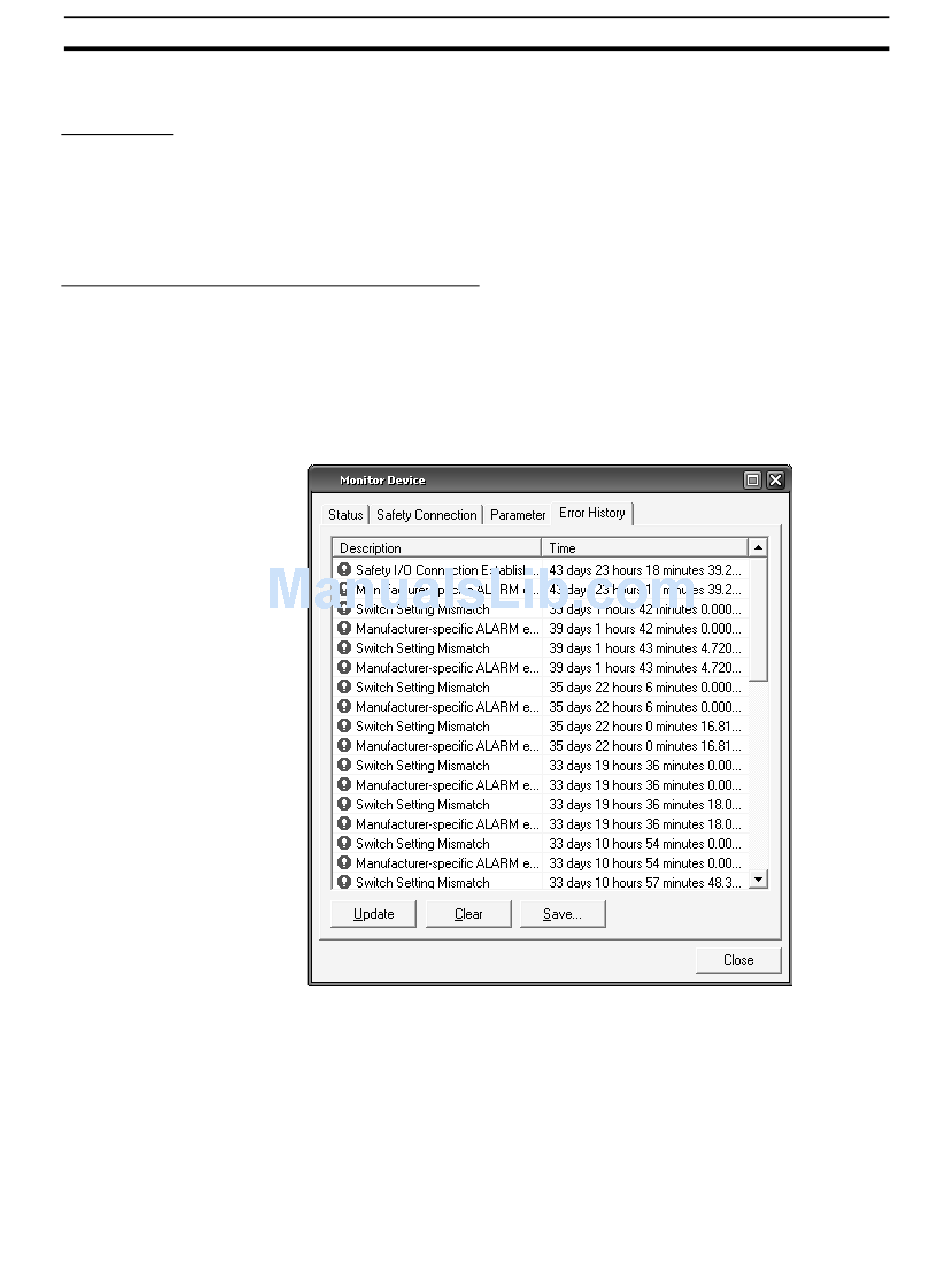

The user can monitor the error history using any of the following methods:
1. Select a device and select Device – Monitor from the menu bar. Click the
Error History Tab in the displayed window.
2. Select a device and click the Monitor Device Button on the toolbar. Click
the Error History Tab in the displayed window.
3. Right-click a device and select Monitor from the pop-up menu. Click the
Error History Tab in the displayed window.
Section 1-6
25
