Maintenance Functions of DST1-series Safety I/O Terminals
Monitoring Using the Network Configurator
44
The user can monitor the operation time using any of the following methods:
1. Select a device and select Device - Maintenance Information from the
menu bar.
2. Select a device and click the Maintenance Information Button on the tool
bar.
3. Right-click a device and select Maintenance Information from the pop-up
menu.

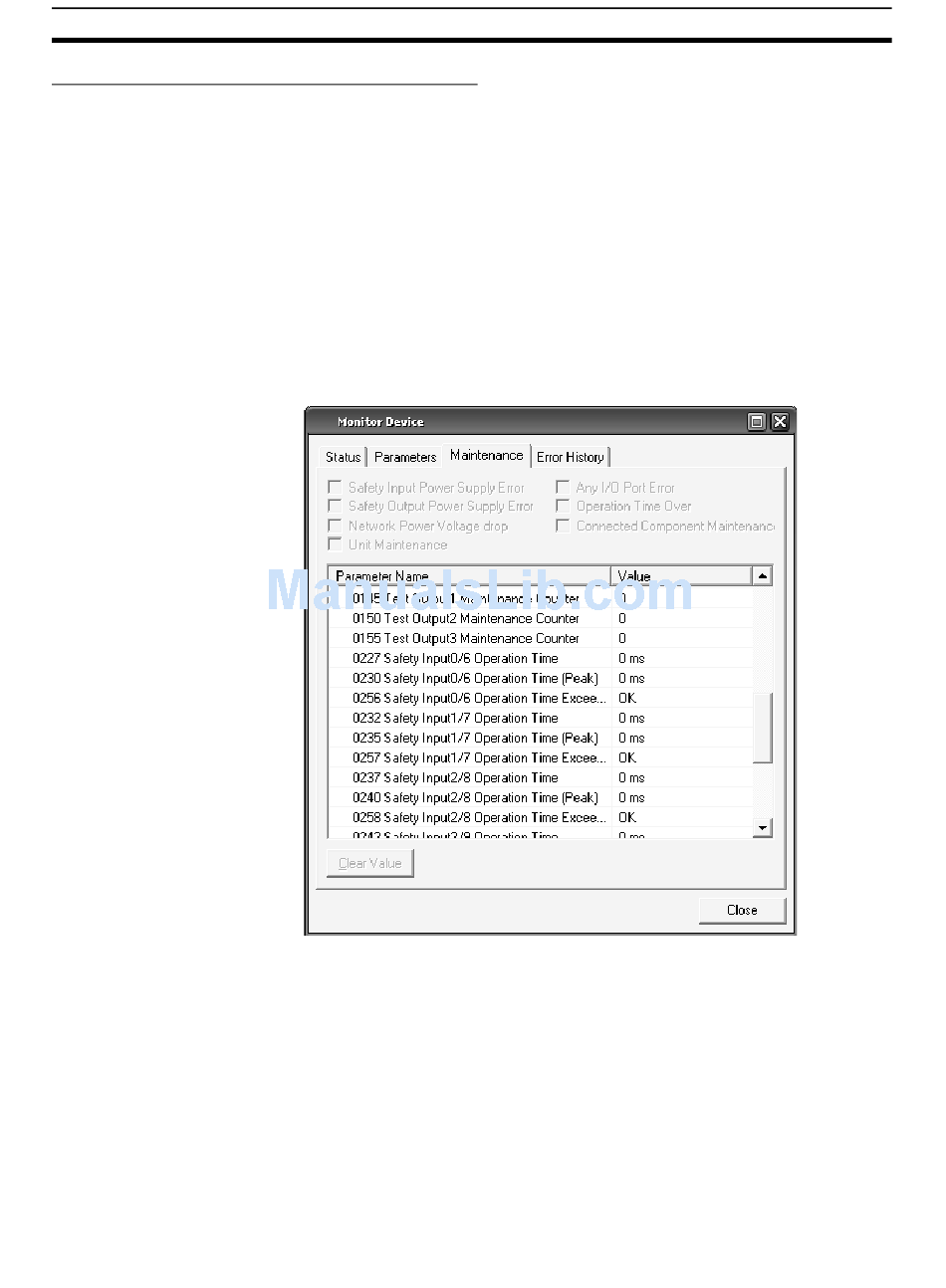

4. Select a device and select Device - Monitor from the menu bar. Click the
Maintenance Tab in the displayed window.
5. Select a device and click the Monitor Device Button on the toolbar. Click
the Maintenance Tab in the displayed window.
6. Right-click a device and select Monitor from the pop-up menu. Click the
Maintenance Tab in the displayed window.
• The present value of the operation time is displayed for the Operation
Time.
• The slowest value of the operation time is displayed for the Operation
Time (Peak).
• If the Threshold Response Time is set and the value exceeds the thresh-
old value even once, "Alarm" will be displayed for the Operation Time
Exceed Hold.
The user can clear the Operation Time (peak) and Operation Time Exceed
Hold values. Select an item to clear and click the Clear Value Button.
Section 1-7
