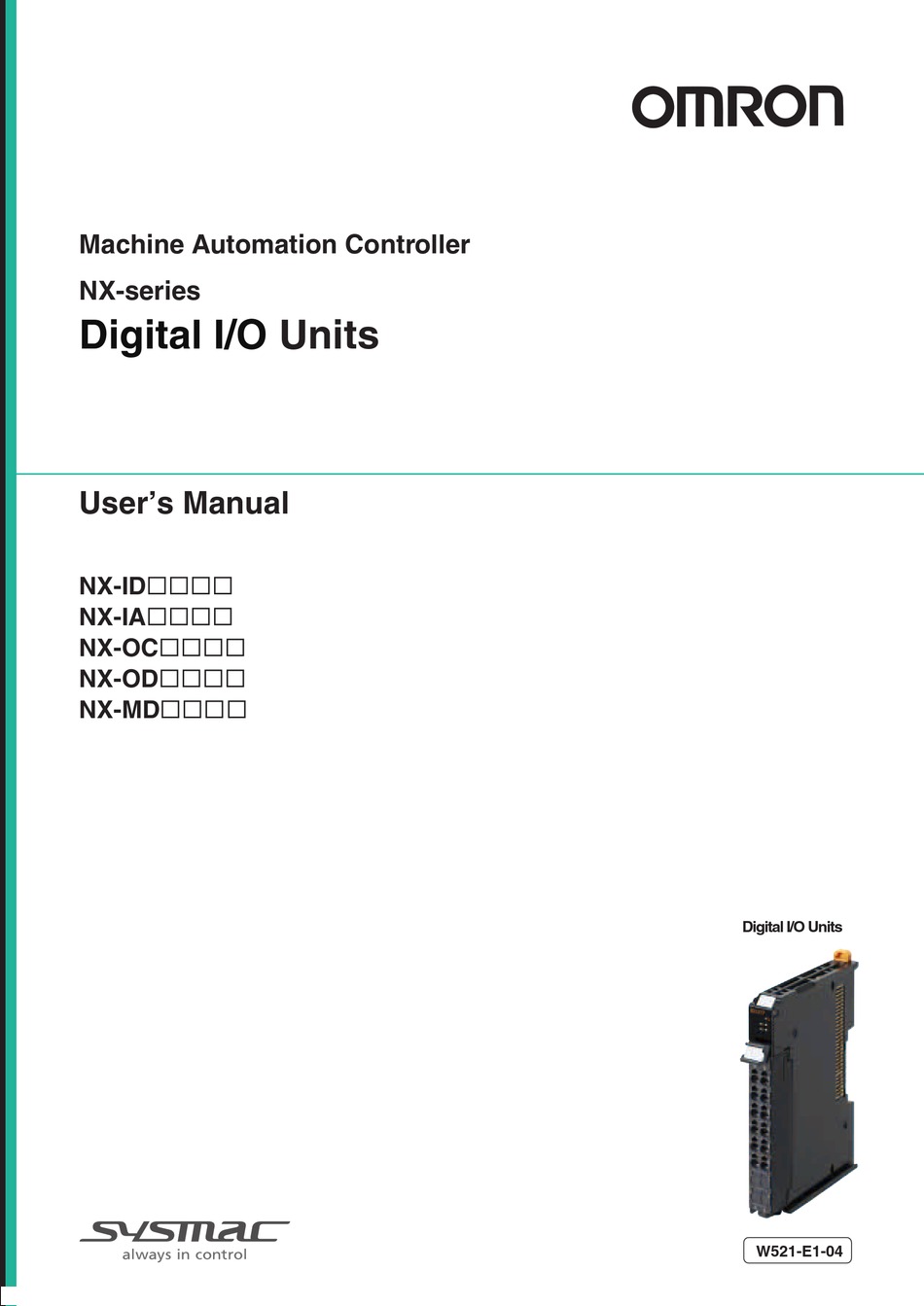

Page 1 Machine Automation Controller NX-series Digital I/O Units User’s Manual NX-ID NX-IA NX-OC NX-OD NX-MD Digital I/O Units W521-E1-04...
Page 2 No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice. Every precaution has been taken in the preparation of this manual. Neverthe- less, OMRON assumes no responsibility for errors or omissions.
Page 3: Introduction
Introduction Introduction Thank you for purchasing an NX-series Digital I/O Unit. This manual contains information that is necessary to use the NX-series Digital I/O Unit. Please read this manual and make sure you understand the functionality and performance of the NX-series Digital I/O Unit before you attempt to use it in a control system.
Page 4: Table Of Contents
CONTENTS CONTENTS Introduction ......................1 Intended Audience............................1 Applicable Products ............................. 1 Relevant Manuals ..................... 6 Manual Structure ...................... 7 Page Structure and Icons ..........................7 Special Information ............................8 Precaution on Terminology .......................... 8 Terms and Conditions Agreement ................9 Warranty, Limitations of Liability ........................
Page 5 CONTENTS Model List..........................1-6 1-3-1 Model Notation..........................1-6 1-3-2 Digital Input Units........................1-9 1-3-3 Digital Output Units........................1-11 1-3-4 Digital Mixed I/O Units ......................1-13 List of Functions........................1-14 1-4-1 Digital Input Units........................1-14 1-4-2 Digital Output Units........................1-15 1-4-3 Digital Mixed I/O Units ......................1-16 Support Software.........................
Page 6 CONTENTS 5-2-3 Selecting NX Units ........................5-4 5-2-4 Free-Run Refreshing........................5-5 5-2-5 Synchronous Input Refreshing....................5-9 5-2-6 Synchronous Output Refreshing ....................5-13 5-2-7 Time Stamp Refreshing......................5-18 5-2-8 Input Refreshing with Input Changed Time................5-19 5-2-9 Output Refreshing with Specified Time Stamp................5-24 5-2-10 An Example of Turning ON Outputs at Specific Times After the Sensor Inputs Change ..
Page 7 CONTENTS 9-3-2 Event Codes and Corrections for Errors..................9-7 9-3-3 Meaning of Error ......................... 9-9 Resetting Errors ........................9-16 Troubles Specific To Each Type of NX Units..............9-17 9-5-1 Digital Inputs ..........................9-17 9-5-2 Digital Outputs .......................... 9-18 Troubleshooting Flowchart ....................9-19 Section 10 Inspection and Maintenance 10-1 Cleaning and Inspection .....................
Page 8: Relevant Manuals
Relevant Manuals Relevant Manuals The table below provides the relevant manuals for the NX-series Digital I/O Units. Read all of the manuals that are relevant to your system configuration and application to make the most of the NX-series Digital I/O Units. Other manuals, such as related product manuals, are necessary for specific system configurations and applications.
Page 9: Manual Structure
Manual Structure Manual Structure Page Structure and Icons The following page structure and icons are used in this manual. Level 1 heading 4 Installation and Wiring Level 2 heading Level 3 heading Mounting Units Level 2 heading Gives the current Level 3 heading headings.
Page 10: Special Information
Manual Structure Special Information Special information in this manual is classified as follows: Precautions for Safe Use Precautions on what to do and what not to do to ensure safe usage of the product. Precautions for Correct Use Precautions on what to do and what not to do to ensure proper operation and performance. Additional Information Additional information to read as required.
Page 11: Terms And Conditions Agreement
Omron’s exclusive warranty is that the Products will be free from defects in materials and workman- ship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
Page 12: Application Considerations
Disclaimers Performance Data Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements. Actual perfor- mance is subject to the Omron’s Warranty and Limitations of Liability.
Page 13: Safety Precautions
Safety Precautions Safety Precautions Definition of Precautionary Information The following notation is used in this manual to provide precautions required to ensure safe usage of an NX-series Digital I/O Unit. The safety precautions that are provided are extremely important to safety. Always read and heed the information provided in all safety precautions.
Page 14: Warnings
Safety Precautions Warnings WARNING During Power Supply Do not touch the terminal section while power is ON. Electric shock may occur. Do not attempt to take any Unit apart. In particular, high-voltage parts are present in Units that supply power while power is sup- plied or immediately after power is turned OFF.
Page 15: Cautions
Safety Precautions Voltage and Current Inputs Make sure that the voltages and currents that are input to the Units and slaves are within the specified ranges. Inputting voltages or currents that are outside of the specified ranges may cause accidents or fire.
Page 16 Safety Precautions Online Editing Execute online editing only after confirming that no adverse effects will be caused by devia- tions in the timing of I/O. If you perform online editing, the task execution time may exceed the task period, I/O may not be refreshed with external devices, input signals may not be read, and output timing may change.
Page 17: Precautions For Safe Use
Precautions for Safe Use Precautions for Safe Use Transporting • When transporting any Unit, use the special packing box for it. Also, do not subject the Unit to excessive vibration or shock during transportation. • Do not drop any Unit or subject it to abnormal vibration or shock. Doing so may result in Unit malfunction or burning.
Page 18 Precautions for Safe Use Wiring • Double-check all switches and other settings and double-check all wiring to make sure that they are correct before turning ON the power supply. Use the correct wiring parts and tools when you wire the system. •...
Page 19 Precautions for Safe Use Actual Operation • Before you start operation, always register the NX Units that are connected to the Communications Coupler Unit in the host communications master as the Unit Configuration Information. • Check the user program, data, and parameter settings for proper execution before you use them for actual operation.
Page 20 Precautions for Safe Use Sysmac Studio and you can check the actual slave revisions from the Sysmac Studio or on slave nameplates. • After you transfer the user program, the CPU Unit is restarted and communications with the Ether- CAT slaves are cut off. During that period, the slave outputs behave according to the slave settings. The time that communications are cut off depends on the EtherCAT network configuration.
Page 21: Precautions For Correct Use
Precautions for Correct Use Precautions for Correct Use Storage, Mounting, and Wiring • Follow the instructions in this manual to correctly perform installation. • Do not operate or store the Units in the following locations. Doing so may result in malfunction, in operation stopping, or in burning.
Page 22: Regulations And Standards
Concepts  EMC Directives OMRON devices that comply with EC Directives also conform to the related EMC standards so that they can be more easily built into other devices or the overall machine. The actual products have been checked for conformity to EMC standards.*1 Whether the products conform to the standards in the system used by the customer, however, must be checked by the customer.
Page 23: Conformance To Ul And Csa Standards
NX-series product must also comply with the standards, consult with your OMRON representative. Application conditions are defined according to the installation location. Application may not be possible for some installation locations.
Page 24: Unit Versions
Gives the unit version of the Unit. Lot number Gives the lot number of the Unit. DDMYY: Lot number, : Used by OMRON. “M” gives the month (1 to 9: January to September, X: October, Y: November, Z: December) NX-series Digital I/O Unit User’s Manual (W521)
Page 25 Gives the lot number and unit version of the Unit. unit version • DDMYY: Lot number, : Used by OMRON. “M” gives the month (1 to 9: January to September, X: October, Y: November, Z: December) • 1: Unit version The decimal portion of the unit version is omitted.
Page 26: Unit Versions And Sysmac Studio Versions
Unit Versions • Unit version • Serial number • Lot number • Hardware version • Software version • Total power-ON time The software version is displayed only for Units that contain software. Version Information The total power-ON time is provided by function to monitor the total power-ON time. The func- tion to monitor the total power-ON time was added for a version upgrade.
Page 27: Related Manuals
Related Manuals Related Manuals The following table shows related manuals. Use these manuals for reference. Manual name Cat. No. Model numbers Application Description NX-series Digital I/O W521 NX-ID Learning how to The hardware, setup methods, and Units User’s Manual use NX-series Dig- functions of the NX-series Digital I/O NX-IA...
Page 28 Related Manuals Manual name Cat. No. Model numbers Application Description NX-series EtherCAT W519 NX-ECC201 Learning how to The following items are described: the Coupler Unit User’s use an NX-series overall system and configuration meth- NX-ECC202 Manual EtherCAT Coupler ods of an EtherCAT Slave Terminal Unit and Ether- (which consists of an NX-series Ether- CAT Slave Termi-...
Page 29 Related Manuals Manual name Cat. No. Model numbers Application Description NJ-series Instructions W502 NJ501- Learning detailed The instructions in the instruction set Reference Manual specifications on (IEC 61131-3 specifications) are NJ301- the basic instruc- described. tions of an When programming, use this manual NJ-series CPU together with the NJ-series CPU Unit Unit.
Page 30: Terminology
Terminology Terminology Abbre- Term Description viation application layer status, AL status Status for indicating information on errors that occur in an application on a slave. CAN application protocol over Ether- A CAN application protocol service implemented on EtherCAT. CAN in Automation CiA is the international users' and manufacturers' group that develops and supports higher-layer protocols.
Page 31 Terminology Abbre- Term Description viation process data object A structure that describes the mappings of parameters that have one or more process data entities. receive PDO RxPDO A process data object received by an EtherCAT slave. Safe-Operational A state in EtherCAT communications where only SDO communications and reading input data from slaves are possible.
Page 32: Revision History
Revision History Revision History A manual revision code appears as a suffix to the catalog number on the front and back covers of the manual. Cat. No. W521-E1-04 Revision code Revision code Date Revised content April 2013 Original production June 2013 Added time stamp refreshing, models on time stamp refreshing and cor- rected mistakes.
Page 33: Sections In This Manual
Sections in this Manual Sections in this Manual Features and System Inspection and Configuration Maintenance Appendices Specifications Part Names and Index Functions Installation and Wiring I/O Refreshing Digital Input Units Digital Output Units Digital Mixed I/O Units Troubleshooting NX-series Digital I/O Unit User’s Manual (W521)
Page 34 Sections in this Manual NX-series Digital I/O Unit User’s Manual (W521)
Page 35: Features And System Configuration
Features and System Configura- tion This section describes NX system configuration and the types of Digital I/O Units. 1-1 Features and Types of Digital I/O Units ......1-2 1-1-1 Digital I/O Unit Features .
Page 36: Features And Types Of Digital I/O Units
1 Features and System Configuration Features and Types of Digital I/O Units This section describes features and types of Digital I/O Units. 1-1-1 Digital I/O Unit Features The Digital I/O Units are NX Units to process inputs and outputs of digital signals (ON/OFF signals). The NX-series Digital I/O Units have the following features.
Page 37: Digital I/O Unit Types
1 Features and System Configuration 1-1-2 Digital I/O Unit Types The types of Digital I/O Units are as follows. Type Purpose Digital Input Units These are Units with functionality to process input of digital signals from sensors and other connected external devices. Digital Output Units These are Units with functionality to process output of digital signals to relays and other connected external devices.
Page 38: System Configuration Of Slave Terminals
1 Features and System Configuration System Configuration of Slave Termi- nals 1-2-1 Overview The Slave Terminal is a building-block remote I/O slave that is created by mounting a group of NX Units to a Communications Coupler Unit. The NX Units can be flexibly combined with a Communications Coupler Unit to achieve the optimum remote I/O slave for the application with less wiring, less work, and less space.
Page 39 Communications cable Use a double-shielded cable with aluminum tape and braiding of Ethernet cat- egory 5 (100Base-TX) or higher, and use straight wiring. *1. An EtherCAT Slave Terminal cannot be connected to any of the OMRON CJ1W-NC   82 Position Control Units even though they can operate as EtherCAT masters.
Page 40: Model List
1 Features and System Configuration Model List 1-3-1 Model Notation The Digital I/O Unit models are assigned based on the following rules. NX - - Unit type ID : DC input IA : AC input OD : Transistor output OC : Relay output MD : DC input/Transistor output Number of points 2 : 2 points...
Page 41: Digital Input Units
1 Features and System Configuration Other Specifications  Digital Input Units ON/OFF response I/O refreshing method time Free-Run refreshing only Input voltage Exceeds Input refreshing with input 1 μs max. Switching Synchronous I/O 1 μs changed time only refreshing and Free-Run refreshing 12 to 24 VDC ...
Page 42 1 Features and System Configuration  Digital Mixed I/O Units Input section Output section Other func- ON/OFF response time tions Rated Rated input Load I/O refreshing volt- Load voltage current method Exceeds 1 μs max. short-circuit 1 μs protection 12 to Switching Synchro- ...
Page 43: Digital Input Units
Switching Synchro- 20 μs max./400 μs NX-ID3317 12 to 24 VDC P. A-7 nous I/O refreshing max. and Free-Run NX-ID3343 P. A-8 refreshing 100 ns max./100 ns 24 VDC Input refreshing with max. NX-ID3344 input changed time P. A-9...
Page 44 1 Features and System Configuration AC Input Units (Screwless Clamping Terminal Block, 12 mm Width) I/O refreshing ON/OFF response Model Rated input voltage Reference method time poin 200 to 240 VAC, 50/60 Hz 10 ms max./40 ms NX-IA3117 point Free-Run refreshing P.
Page 45: Digital Output Units
1 Features and System Configuration 1-3-3 Digital Output Units This section shows the specifications for Digital Output Units. Refer to A-1-3 Digital Output Units on page A-24 for details on the specifications of individual Digital Output Units. Transistor Output Units (Screwless Clamping Terminal Block, 12 mm Width) Maximum Num-...
Page 46 1 Features and System Configuration Transistor Output Units (MIL Connector, 30 mm Width) Maximum Num- ON/OFF Internal I/O value of Rated volt- I/O refresh- Refer- Model ber of response common load cur- ing method ence points time rent 0.1 ms 12 to 24 NX-OD5121-5 max./0.8 ms...
Page 47: Digital Mixed I/O Units
1 Features and System Configuration 1-3-4 Digital Mixed I/O Units This section shows the specifications for Digital Mixed I/O Units. Refer to A-1-4 Digital Mixed I/O Units on page A-49 for details on the specifications of individual Mixed I/O Units. DC Input/Transistor Output Units (MIL Connector, 30 mm Width) Maximum Num-...
Page 48: List Of Functions
1 Features and System Configuration List of Functions This section provides an overview of functions that the Digital I/O Units have. Refer to the specifications of each model in A-1 Data Sheet on page A-2 for details on the functions. 1-4-1 Digital Input Units Function name...
Page 49: Digital Output Units
1 Features and System Configuration 1-4-2 Digital Output Units Function name Description Reference Free-Run Refreshing With this I/O refreshing method, the refresh cycle of the NX 5-2-4 Free-Run Refreshing on bus and the I/O refresh cycles of the NX Units are asynchro- page 5-5 nous.
Page 50: Digital Mixed I/O Units
1 Features and System Configuration 1-4-3 Digital Mixed I/O Units Function name Description Reference Free-Run Refreshing With this I/O refreshing method, the refresh cycle of the NX 5-2-4 Free-Run Refreshing on bus and the I/O refresh cycles of the NX Units are asynchro- page 5-5 nous.
Page 51: Support Software
1 Features and System Configuration Support Software Refer to A-7 Version Information on page A-105 for information on the Support Software that can per- form the settings of the Slave Terminal. 1 - 17 NX-series Digital I/O Unit User’s Manual (W521)
Page 52 1 Features and System Configuration 1 - 18 NX-series Digital I/O Unit User’s Manual (W521)
Page 53: Specifications
Specifications This section describes the general specifications and individual specifications of Digital I/O Units. 2-1 General Specifications ......... 2-2 2-2 Individual Specifications .
Page 54: General Specifications
*2. Varies with NX Unit Models. Refer to A-1 Data Sheet on page A-2 for the specifications of individual NX Units. *3. Refer to the OMRON website (www.ia.omron.com) or ask your OMRON representative for the most recent ap- plicable standards for each model.
Page 55: Individual Specifications
2 Specifications Individual Specifications Refer to A-1 Data Sheet on page A-2 for the specifications of individual Digital I/O Units. 2 - 3 NX-series Digital I/O Unit User’s Manual (W521)
Page 56 2 Specifications 2 - 4 NX-series Digital I/O Unit User’s Manual (W521)
Page 57: Part Names And Functions
Part Names and Functions This section describes the names and functions of the Digital I/O Unit parts. 3-1 Part Names ........... 3-2 3-1-1 Screwless Clamping Terminal Block Type .
Page 58: Part Names
NX Units (12 mm Width) Let- Name Function Marker attachment loca- The locations where markers are attached. The markers made by OMRON tions are installed for the factory setting. Commercially available markers can also be installed. Refer to 4-1-2 Attaching Markers on page 4-4 NX bus connector This connector is used to connect each Unit.
Page 59 3 Part Names and Functions Terminal Blocks There are two models of Screwless Clamping Terminal Blocks: NX-TB2 and NX-TB1. Each model has three types of terminal blocks: 8-terminal type, 12-terminal type, and 16-terminal type.  NX-TB2 16-terminal type 8-terminal type 12-terminal type ...
Page 60 3 Part Names and Functions Let- Name Function Terminal number indi- Terminal numbers for which A and B indicate the column, and 1 to 8 indicate cations the line are displayed. The terminal number is a combination of column and line, i.e. A1 to A8 and B1 to B8.
Page 61 3 Part Names and Functions  Applicable Terminal Blocks for Each Unit Model The following indicates the Terminal Blocks that are applicable to each Unit. Terminal Block Unit model number Number of Model Ground terminal Current capacity terminals NX-ID3 NX-TBA121 Not provided NX-TBA122 10 A...
Page 62: Connector Types
 Units with MIL Connectors (1 Connector with 20 Terminals) Let- Name Function Marker attachment loca- The locations where markers are attached. The markers made by OMRON tion are installed for the factory setting. Commercially available markers can also be installed. Refer to 4-1-2 Attaching Markers on page 4-4.
Page 63  Units with MIL Connectors (1 Connector with 40 Terminals) Let- Name Function Marker attachment loca- The locations where markers are attached. The markers made by OMRON tion are installed for the factory setting. Commercially available markers can also be installed. Refer to 4-1-2 Attaching Markers on page 4-4.
Page 64  Units with MIL Connectors (2 Connectors with 20 Terminals) Let- Name Function Marker attachment loca- The locations where markers are attached. The markers made by OMRON tion are installed for the factory setting. Commercially available markers can also be installed. Refer to 4-1-2 Attaching Markers on page 4-4.
Page 65: Indicators
3 Part Names and Functions Indicators There are the indicators to show the current operating status of the Unit or the signal I/O status on the Digital I/O Units. The following indicator patterns are available depending on width of the Unit and the number of I/O points.
Page 66 3 Part Names and Functions Let- Name Function Model number indications The model numbers of the NX Unit are displayed. (Example) "ID3317" in the case of NX-ID3317 The NX Units are separated in the following color depending on the type of inputs and outputs.
Page 67: Ts Indicator
3 Part Names and Functions 3-2-1 TS Indicator This indicator shows the current status of the Digital I/O Unit and its communications status with the Communications Coupler Unit. The meanings of light statuses are described as follows: Color Status Description Green The Unit is operating normally.
Page 68: In/Out Indicator
3 Part Names and Functions 3-2-2 IN/OUT Indicator This indicator shows the signal I/O status of each terminal of the Digital I/O Units. For Digital Mixed I/O Units, the indicator shows as follows. OUT indicator IN indicator Color Status Description Yellow Digital I/O is ON Not lit...
Page 69: Installation And Wiring
Installation and Wiring This section describes how to install the NX Units, the types of power supplies used in the Slave Terminal, their wiring methods, and how to wire the NX Units. 4-1 Installing NX Units ..........4-2 4-1-1 Installing NX Units .
Page 70: Installing Nx Units
4 Installation and Wiring Installing NX Units This section describes how to install NX Units. Refer to the user's manual of the Communications Coupler Unit for information on preparations of installation and installation in a control panel. 4-1-1 Installing NX Units This section describes how to mount two NX Units to each other.
Page 71 4 Installation and Wiring From the front of the previously mounted NX Unit, engage the Unit hookup guides on a new Unit with the Unit hookup guides on the previously mounted NX Unit. Unit hookup guides Unit hookup guides Slide the NX Unit in on the hookup guides. Press the NX Unit with a certain amount of force against the DIN Track until you hear the DIN Track mounting hook lock into place.
Page 72: Attaching Markers
Attaching Markers You can attach markers to the NX Units to identify them. The plastic markers made by OMRON are installed for the factory setting. The ID information can be written on them. Commercially available markers can also be installed.
Page 73: Removing Nx Units
DEK 5/8 Special marker printer UM EN BLUEMARK X1 PrintJet PRO The markers made by OMRON cannot be printed on with commercially available special printers. 4-1-3 Removing NX Units Precautions for Safe Use Always turn OFF the Unit power supply and I/O power supply before you remove the NX Unit.
Page 74 4 Installation and Wiring Put your fingers on the protrusions for removing multiple NX Units including the Unit to be removed, then pull out straight forward to remove. Protrusion for removing the Unit Protrusion for removing the Unit Precautions for Correct Use •...
Page 75: Installation Orientation
4 Installation and Wiring 4-1-4 Installation Orientation Orientation is possible in the following six directions. (A) is the upright orientation and (B) to (F) are other orientations. Upper Lower However, there are restrictions on the installation orientation and restrictions to specifications that can result from the Communications Coupler Units and NX Units that are used.
Page 76: Wiring The Power Supply To The Slave Terminal
4 Installation and Wiring Wiring the Power Supply to the Slave Terminal This section describes how to supply power to the Slave Terminal and wiring. 4-2-1 Power Supply Types There are the following two types of power supplies that supply power to the Slave Terminal. Power supply name Description Unit power supply...
Page 77: Supplying Each Power Supply And Wiring
4 Installation and Wiring 4-2-2 Supplying Each Power Supply and Wiring The supply method for each power supply to the NX Units is as follows. Power supply name Description NX Unit power sup- This power is supplied to the NX Units through the NX bus connectors by connecting a Unit power supply to the Unit power supply terminals on the Communications Coupler Unit or Additional NX Unit Power Supply Units.
Page 78 4 Installation and Wiring The following are wiring diagrams (examples) for each power supply. (Example) DC Input Unit 24 VDC I/O 24 VDC Unit power supply power supply Additional I/O Additional DC Input Unit NX Unit Power Power Supply Unit Two-wire Supply Unit sensor...
Page 79: Calculating The Total Current Consumption From I/O Power Supply
4 Installation and Wiring 4-2-3 Calculating the Total Current Consumption from I/O Power Sup- The total current consumption of I/O power supplied from the NX bus must be within the range of the maximum I/O power supply current of the Communications Coupler Unit or the Additional I/O Power Supply Unit.
Page 80: Power Supply-Related Units For The Nx-Series
Refer to the NX-series System Unit User's Manual (Cat. No. W523) for details on NX-series power sup- ply-related Units. Refer to NX-series catalogs or OMRON websites, or ask your OMRON representative for information on the most recent lineup of NX Units.
Page 81 4 Installation and Wiring Unit name Function Additional I/O Power Sup- This NX Unit provides additional I/O power supply. ply Unit Use this NX Unit in the following cases. (a) When the I/O power supply capacity is insufficient • When the total current consumption for the I/O power supply exceeds the max- imum current of I/O power supply of the Communications Coupler Unit •...
Page 82 4 Installation and Wiring Unit name Function I/O Power Supply Con- This NX Unit is used when there are not enough I/O power supply terminals for the nection Unit connected external devices that are connected to NX Units such as Digital I/O Units and Analog I/O Units.
Page 83: Wiring The Terminals
4 Installation and Wiring Wiring the Terminals This section describes how to wire the terminals on the Digital I/O Units. WARNING Make sure that the voltages and currents that are input to the Units and slaves are within the speci- fied ranges.
Page 84 4 Installation and Wiring Applicable Wires The wires that you can connect to the screwless clamping terminal block are twisted wires, solid wires, and ferrules that are attached to the twisted wires. The following section describes the dimensions and processed methods for applicable wires. ...
Page 85 4 Installation and Wiring  Using Ferrules If you use ferrules, attach the twisted wires to them. Observe the application instructions for your ferrules for the wire stripping length when attaching fer- rules. Always use one-pin ferrules. Do not use two-pin ferrules. The applicable ferrules, wires, and crimping tools are listed in the following table.
Page 86 4 Installation and Wiring  Using Twisted Wires/Solid Wires If you use the twisted wires or the solid wires, the applicable wire range and conductor length (strip- ping length) are as follows. Terminal types Applicable wire range Conductor length (stripping length) 9 to 10 mm Ground terminals 2.0 mm...
Page 87 4 Installation and Wiring Connecting/Removing Wires This section describes how to connect and remove wires.  Terminal Block Parts and Names Release hole Terminal hole  Required Tools Use a flat-blade screwdriver to connect and remove wires. Use the following flat-blade screwdriver. Side view Front view 8 to 12°...
Page 88 4 Installation and Wiring  Connecting Ferrules Insert the ferrule straight into the terminal hole. It is not necessary to press a flat-blade screwdriver into the release hole. Ferrule After you make a connection, make sure that the ferrule is securely connected to the terminal block. ...
Page 89 4 Installation and Wiring Leave the flat-blade screwdriver pressed into the release hole and insert the twisted wire or the solid wire into the terminal hole. Insert the twisted wire or the solid wire until the stripped portion is no longer visible to prevent shorting.
Page 90 4 Installation and Wiring Precautions for Safe Use • Do not press the flat-blade screwdriver straight into the release hole. Doing so may break the terminal block. • When you insert a flat-blade screwdriver into a release hole, press it down with a force of 30 N max.
Page 91 4 Installation and Wiring  Removing Wires Use the following procedure to remove the wires from the terminal block. The removal method is the same for ferrules, twisted wires, and solid wires. Press the flat-blade screwdriver diagonally into the release hole. Press at an angle of 10...
Page 92 4 Installation and Wiring Precautions for Safe Use • Do not press the flat-blade screwdriver straight into the release hole. Doing so may break the terminal block. • When you insert a flat-blade screwdriver into a release hole, press it down with a force of 30 N max.
Page 93 4 Installation and Wiring Removing a Terminal Block Press the lock lever on the terminal block and pull out the top of the terminal block to remove it. Lock lever Terminal block 4 - 25 NX-series Digital I/O Unit User’s Manual (W521)
Page 94 4 Installation and Wiring Attaching a Terminal Block Place the terminal block hook on the guide at the bottom of the NX Unit and press in on the top of the terminal block to attach it. Hook Guide Mount a Terminal Block that is applicable to each Unit model. Refer to Applicable Terminal Blocks for Each Unit Model on page 3-5 for the applicable Terminal Blocks.
Page 95 4 Installation and Wiring Preventing Incorrect Attachment of Terminal Blocks In order to prevent unintentionally installing the wrong terminal block, you can limit the combination of a Unit and a terminal block. Insert three Coding Pins (NX-AUX02) into three of the six incorrect attachment prevention holes on the Unit and on the terminal block.
Page 96 4 Installation and Wiring  Types of Coding Pins There are two types of Coding Pins, both with their own unique shape: one for terminal blocks and one for Units. Three pins come with each runner. For Terminal Block For Unit Runners Coding Pins (Use this part.) Use the following Coding Pins.
Page 97 1 through 6 in the figure below. As shown in the following table, there are 20 unique pin patterns that can be used. Terminal Block Unit Holes used by Holes used by OMRON OMRON Holes for incorrect Holes for incorrect attachment prevention attachment prevention...
Page 98 Precautions for Correct Use • OMRON uses the holes other than No. 1 to 6 in the figure on the previous page. If you insert a Coding Pin into one of the holes used by OMRON on the terminal block side, this makes it impossible to mount the terminal block on a Unit.
Page 99 4 Installation and Wiring Unit 4 - 31 NX-series Digital I/O Unit User’s Manual (W521)
Page 100: Wiring To Connectors
Depending on the connector, the following methods are used to connect the Digital I/O Units with con- nectors to external I/O devices. • Use an OMRON Connecting Cable (equipped with a special connector) to connect to a Terminal Block or Relay Terminal.
Page 101 NX-MD6121-5 DC Input/Transistor Output Units, 16 inputs, 16 20 (x 2) outputs NX-MD6256-5 Applicable Cable-side Connectors Connection Pins OMRON set DDK parts Pressure-welded XG4M-4030-T FRC5-A040-3TOS XG4M-2030-T FRC5-A020-3TOS  Wire Size We recommend using cable with wire gauges of AWG 24 or AWG 28 (0.2 mm to 0.08 mm...
Page 102: Checking The Wiring
4 Installation and Wiring 4-3-3 Checking the Wiring Check the wiring from the I/O Map or Watch Tab Page of the Sysmac Studio. For Input Units, you can turn ON/OFF the inputs from external devices that are connected to the target Units and monitor the results.
Page 103: Wiring Examples
4 Installation and Wiring Wiring Examples This section gives some wiring examples for the Digital I/O Units and precautions for wiring. 4-4-1 Wiring the Input Units Wiring to the DC Input Units (When I/O Power Is Supplied from the NX Bus) ...
Page 104 4 Installation and Wiring This is the wiring for three-wire sensors. Communications Coupler Unit or Additional I/O Power Supply Unit Three-wire sensor Output DC Input Unit  PNP Type Input Units This is the wiring for contact output type external devices. Communications Coupler Unit or Additional I/O Power Supply Unit Contact output...
Page 105 4 Installation and Wiring This is the wiring for two-wire sensors. Communications Coupler Unit or Additional I/O Power Supply Unit Two-wire sensor DC Input Unit This is the wiring for three-wire sensors. Communications Coupler Unit or Additional I/O Power Supply Unit Three-wire sensor DC Input Unit Output...
Page 106 4 Installation and Wiring  Precautions when Connecting a Two-wire DC Sensor When a two-wire sensor is used with a DC Input Unit, check that the following conditions are met. Failure to meet these conditions may result in operating errors. (a) Relation between ON voltage of the DC Input Unit and sensor residual voltage The DC Input Unit cannot detect sensor output ON unless the following conditions are satisfied: ≤...
Page 107 4 Installation and Wiring (b) Relation between input current to the DC Input Unit and sensor control output (load current) The DC Input Unit cannot detect sensor output ON unless the following conditions are satisfied: (min) ≤ I ≤ I (max) (min): Minimum value of load current (max): Maximum value of load current...
Page 108 4 Installation and Wiring The voltages and currents related to the conditions for NPN type sensors are shown in the figure below. Communications Coupler Unit or Additional I/O Power Supply Unit Two-wire sensor DC Input Unit The voltages and currents related to the conditions for PNP type sensors are shown in the figure below.
Page 109 4 Installation and Wiring (c) Relation between OFF current of the DC Input Unit and sensor leakage current The DC Input Unit cannot detect sensor output OFF unless the following conditions are satisfied: ≥ I leak When I is greater than I , connect a bleeder resistor R.
Page 110 A programming example is shown below. The sensor's power supply voltage is used as the input bit to Sensor_power. A 100-ms timer delay (the time required for an OMRON Proximity Sensor to stabilize) is created in the user program. After the timer changes to TRUE, input bit X causes the output Output to change to TRUE after the input of the sensor changes to TRUE.
Page 111 4 Installation and Wiring Wiring to the DC Input Units (When I/O Power Is Supplied from an External Source) Use the following information for reference when selecting or connecting input devices.  DC Input Units The following types of DC input devices can be connected. Contact output Two-wire DC output DC Input Unit...
Page 112 4 Installation and Wiring  Precautions when Connecting a Two-wire DC Sensor When a two-wire sensor is used with a DC Input Unit, check that the following conditions are met. Failure to meet these conditions may result in operating errors. (a) Relation between ON voltage of the DC Input Unit and sensor residual voltage ≤...
Page 113 A programming example is shown below. The sensor's power supply voltage is used as the input bit to Sensor_power. A 100-ms timer delay (the time required for an OMRON Proximity Sensor to stabilize) is created in the user program. After the timer changes to TRUE, input bit X causes the output Output to change to TRUE after the input of the sensor changes to TRUE.
Page 114 4 Installation and Wiring Wiring to the AC Input Units  Contact Output AC Input Unit  AC Switching Proximity AC Input Unit switch main circuit Precautions for Safe Use If you use reed switches for the input contacts for AC Input Units, use switches with an allow- able current of 1 A or greater.
Page 115: Precautions When Wiring To The Output Units
4 Installation and Wiring 4-4-2 Precautions when Wiring to the Output Units Output Short-circuit Protection If a load connected to the output terminals is short-circuited, output components and printed circuit boards may be damaged. To guard against this, use the NX Units with load short-circuit protection. When using the NX Units without load short-circuit protection, incorporate a protective fuse in the exter- nal circuit.
Page 116 4 Installation and Wiring  Countermeasure 2 Mount a limiting resistor. When I/O power is supplied from the NX bus, the method is as shown in the following figure. NPN type PNP type Communications Communications Coupler Unit or Coupler Unit or Additional I/O Power Additional I/O Power Supply Unit...
Page 117: I/O Refreshing
I/O Refreshing This section describes the types and functions of I/O refreshing for the NX Units. 5-1 I/O Refreshing for Slave Terminals ....... . 5-2 5-1-1 I/O Refreshing from CPU Unit to Slave Terminal .
Page 118: I/O Refreshing For Slave Terminals
5 I/O Refreshing I/O Refreshing for Slave Terminals This section describes I/O refreshing for NX-series Slave Terminals. 5-1-1 I/O Refreshing from CPU Unit to Slave Terminal The CPU Unit cyclically performs I/O refres hing with the Slave Terminal through the Communications Master and Communications Coupler Units.
Page 119: I/O Refreshing Methods
5 I/O Refreshing I/O Refreshing Methods This section describes I/O refreshing methods for the NX Units. 5-2-1 Types of I/O Refreshing Methods The I/O refreshing methods that you can use between the Communications Coupler Unit and the NX Units are determined by the Communications Coupler Unit that is used. When an EtherCAT Coupler Unit is connected to the built-in EtherCAT port on the NJ-series CPU Unit, the I/O refreshing methods that you can use between the EtherCAT Coupler Unit and the NX Units are as follows.
Page 120: Setting The I/O Refreshing Methods
5 I/O Refreshing 5-2-2 Setting the I/O Refreshing Methods The I/O refreshing method between the EtherCAT Coupler Unit and each NX Unit is determined by whether the distributed clock is enabled or disabled in the EtherCAT Coupler Unit. Distributed clock NX Units that support NX Units that support enable/disable setting...
Page 121: Free-Run Refreshing
5 I/O Refreshing 5-2-4 Free-Run Refreshing With this I/O refreshing method, the refresh cycle of the NX bus and I/O refresh cycles of the NX Units are asynchronous. Digital I/O Units read inputs or refresh outputs at the time of I/O refreshing. This method is used when it is not necessary to be aware of factors such as the I/O timing jitter and the concurrency of the timing to read inputs and refresh outputs between the NX Units.
Page 122 5 I/O Refreshing  Inputs (a) I/O refreshing for each Unit in order (d) Interval of the timing to read inputs is not constant. I/O refreshing Input refreshing Output refreshing of the NX bus ON/OFF response time Timing to read inputs Digital Input Unit A ON/OFF response time...
Page 123 5 I/O Refreshing I/O Port  Digital Input Units This uses the I/O ports of the input values. Four-point Input Units Default I/O port name Type Name Description value Input Bit 00 BOOL Input Bit 00 The input value for input bit 00. FALSE Input Bit 01 BOOL...
Page 124 5 I/O Refreshing  Digital Output Units This uses the I/O ports of the output set values. Two-point Output Units Default I/O port name Type Name Description value Output Bit 00 BOOL Output Bit 00 The output set value for output bit 00. FALSE Output Bit 01 BOOL...
Page 125: Synchronous Input Refreshing
5 I/O Refreshing 5-2-5 Synchronous Input Refreshing With this I/O refreshing method, the timing to read inputs is synchronized on a fixed interval between more than one NX Unit on the Slave Terminal. This method is used when the problem such as input timing jitter or offset of timing to read inputs between more than one NX Unit happens.
Page 126 5 I/O Refreshing I/O refreshing synchronization (c) Interval of I/O refreshing The longest AD conversion time is not constant. is within one cycle. (d) Interval of Sync0 is constant. (b) The Communications Coupler Unit reads the latched data at I/O refreshing. Offset between Not constant.
Page 127 5 I/O Refreshing Settings Set the following items.  Adding to the NX Unit Configuration Enable the distributed clock in the EtherCAT slave parameters on the EtherCAT Coupler Unit that is added to the EtherCAT network configuration and add the NX Units that support synchronous I/O refreshing to the NX Unit configuration.
Page 128 5 I/O Refreshing  Sixteen-point Input Units I/O port name Type Name Description Default value Input Bit 16 bits WORD Input Bits 16 bits The input values for 16 bits. 0000 hex  Thirty-two-point Input Units I/O port name Type Name Description Default value...
Page 129: Synchronous Output Refreshing
5 I/O Refreshing 5-2-6 Synchronous Output Refreshing With this I/O refreshing method, the timing to refresh outputs is synchronized on a fixed interval between more than one NX Unit on the Slave Terminal. This method is used when the problem such as input timing jitter or offset of timing to refresh outputs between more than one NX Unit happens.
Page 130 5 I/O Refreshing Offset between Sync0 and timing to refresh outputs This time is automatically calculated by the Sysmac Studio. (b) The Communication Coupler Unit refreshes I/O refreshing synchronization the output values at I/O refreshing. The longest DA conversion time (c) Interval of I/O refreshing (d) Interval of Sync0 is constant.
Page 131 5 I/O Refreshing Settings Set the following items.  Adding to the NX Unit Configuration Enable the distributed clock in the EtherCAT slave parameters on the EtherCAT Coupler Unit that is added to the EtherCAT network configuration and add the NX Units that support synchronous I/O refreshing to the NX Unit configuration.
Page 132 5 I/O Refreshing I/O Port This uses the I/O ports of the output set values.  Two-point Output Units Default I/O port name Type Name Description value Output Bit 00 BOOL Output Bit 00 The output set value for output bit 00. FALSE Output Bit 01 BOOL...
Page 133 5 I/O Refreshing  Thirty-two-point Mixed I/O Units (Output Section) Default I/O port name Type Name Description value Output Bit 16 bits WORD Output Bits 16 bits The output set values for 16 bits. 0000 hex 5 - 17 NX-series Digital I/O Unit User’s Manual (W521)
Page 134: Time Stamp Refreshing
5 I/O Refreshing 5-2-7 Time Stamp Refreshing With this I/O refreshing method, the NX Units record the DC times when inputs change or perform out- puts at specified DC times. These times are asynchronous to the NX bus refresh cycles. Data exchange between the NX Units and EtherCAT Coupler Unit are performed cyclically on the NX bus refresh cycles.
Page 135: Input Refreshing With Input Changed Time
5 I/O Refreshing 5-2-8 Input Refreshing with Input Changed Time With this I/O refreshing method, the Input Units record the DC times when the inputs changed. The DC times are asynchronous to the NX bus refresh cycles. The EtherCAT Coupler Unit cyclically reads both the input values and the DC times when the inputs changed on the NX bus refresh cycles.
Page 136 5 I/O Refreshing I/O refreshing synchronization (c) Interval of I/O refreshing The longest AD conversion time is not constant. is within one cycle. (d) Interval of Sync0 is constant. (b) The Communications Coupler Unit reads the latched data at I/O refreshing. Offset between Not constant.
Page 137 5 I/O Refreshing • You can select to either detect changes at the input rising edge, or at the input falling edge. Make the setting in advance. Sync0 Sync0 Sync0 I/O refreshing Input refreshing of the NX bus Output refreshing DC time The trigger setting is The trigger setting is...
Page 138 5 I/O Refreshing Settings Set the following items.  Adding to the NX Unit Configuration Enable the distributed clock in the EtherCAT slave parameters on the EtherCAT Coupler Unit that is added to the EtherCAT network configuration and add the NX Units that support input refreshing with input changed time to the NX Unit configuration.
Page 139 5 I/O Refreshing I/O Port This uses the I/O ports of the input values.  Four-point Input Units Default I/O port name Type Name Description Unit value  Input Bit 00 BOOL Input Bit 00 The input value for input bit 00. FALSE ...
Page 140: Output Refreshing With Specified Time Stamp
5 I/O Refreshing 5-2-9 Output Refreshing with Specified Time Stamp With this I/O refreshing method, the Output Units refresh outputs at the DC times specified by the user program. The specified DC times are asynchronous to the NX bus refresh cycles. The EtherCAT Coupler Unit cyclically sets the output set values and the DC times to refresh outputs to the Output Units on the NX bus refresh cycles.
Page 141: Change
5 I/O Refreshing Description of Operation • This method is used when you connect the NX Units that support output refreshing with specified time stamp to the EtherCAT Coupler Unit, that is connected to the built-in EtherCAT port on the NJ-series CPU Unit.
Page 142 5 I/O Refreshing Sets the SpecifiedTime1 and the output set value in the user program. Tcycle Tcycle Tcycle Tcycle Tcycle Tcycle CPU Unit UPG MC UPG MC UPG MC InputChangedTime1 +Tcycle×3 (d) InputChangedTime0 SpecifiedTime1 ST1+Tcycle×2 (c) DC time Tcycle×2 Tcycle×3 EtherCAT Coupler Unit Time Stamp of...
Page 143 5 I/O Refreshing Settings Set the following items.  Adding to the NX Unit Configuration Enable the distributed clock in the EtherCAT slave parameters on the EtherCAT Coupler Unit that is added to the EtherCAT network configuration and add the NX Units that support output refreshing with specified time stamp to the NX Unit configuration.
Page 144 5 I/O Refreshing I/O Port This uses the I/O ports of the output set values.  Two-point Output Units Default I/O port name Type Name Description Unit value  Output Bit 00 BOOL Output Bit 00 The output set value for output FALSE bit 00.
Page 145: An Example Of Turning On Outputs At Specific Times After The Sensor Inputs Change
5 I/O Refreshing 5-2-10 An Example of Turning ON Outputs at Specific Times After the Sensor Inputs Change The following shows an example that uses an Input Unit NX-ID3344 that supports input refreshing with input changed time and an Output Unit NX-OD2154 that supports output refreshing with specified time stamp to turn ON the output to the external output device at a specific time after the input changed time from the sensor.
Page 146 5 I/O Refreshing Network Configuration The network configuration is as follows. A Slave Terminal with the following configuration is connected at EtherCAT node address 1. The device names that are given in the following table are used. Unit number Model Unit Device name NX-ECC201...
Page 147 5 I/O Refreshing I/O Map The following I/O map settings are used. However, add 0x200A: 02 (Time Stamp of Synchronous Output) to an I/O entry mapping of the Ether- CAT Coupler Unit. Data Variable Position Port Description Variable type type Node1 Time Stamp of Contains the time stamp...
Page 148 5 I/O Refreshing Internal Name Data type Default value Comment Variables State UINT Internal status of program Error BOOL FALSE Error flag ErrorCode WORD 16#0000 Error code InputTimeStamp ULINT Recorded input changed time SetOutputTimeStamp ULINT DC time set for the specified time OffsetTimeStamp ULINT...
Page 149 5 I/O Refreshing State0: Wait for input bit 00 to change. If the specified time is 3 task periods or less, error end. Transit to set the specified time and to check the output. <> MOVE State InputTimeStamp InputTimeStamp N1_Input_Bit_00_ UINT#0 N1_Input_Bit_00_ Time_Stamp...
Page 150 5 I/O Refreshing Internal Name Data type Default value Comment Variables State UINT Internal status of program Error BOOL FALSE Error flag ErrorCode WORD 16#0000 Error code InputTimeStamp ULINT Recorded input changed time SetOutputTimeStamp ULINT DC time set for the specified time OffsetTimeStamp ULINT...
Page 151 5 I/O Refreshing CASE State OF //Wait for input bit 00 to change. IF( InputTimeStamp <> N1_Input_Bit_00_Time_Stamp )THEN InputTimeStamp:=N1_Input_Bit_00_Time_Stamp; //Save the input changed time for input bit 00. IF( OffsetTimeStamp <= (OffsetErrorTaskExeCnt * TaskPeriod) )THEN //If the specified time is 3 task periods or less, error end. State:=0;...
Page 152 5 I/O Refreshing 5 - 36 NX-series Digital I/O Unit User’s Manual (W521)
Page 153 Digital Input Units This section describes the types and functions of Digital Input Units. 6-1 Types of Digital Input Units ........6-2 6-2 Specifications of I/O Data .
Page 154: Types Of Digital Input Units
Switching Synchro- 20 μs max./400 μs NX-ID3317 12 to 24 VDC P. A-7 nous I/O refreshing max. and Free-Run NX-ID3343 P. A-8 refreshing 100 ns max./100 ns 24 VDC Input refreshing with max. NX-ID3344 input changed time P. A-9...
Page 155 6 Digital Input Units AC Input Units (Screwless Clamping Terminal Block, 12 mm Width) I/O refreshing ON/OFF response Model Rated input voltage Reference method time poin 200 to 240 VAC, 50/60 Hz 10 ms max./40 ms NX-IA3117 point Free-Run refreshing P.
Page 156: Specifications Of I/O Data
6 Digital Input Units Specifications of I/O Data This section describes I/O data for the Digital Input Units. 6-2-1 Allocable I/O Data This section describes the allocable I/O data in the Digital Input Unit. An I/O entry mapping is assigned to the I/O allocation settings for the Digital Input Unit. A specific I/O entry is assigned to the I/O entry mapping for each NX Unit model.
Page 157 6 Digital Input Units  Eight-point Input Units Data Default I/O port Subin- Data name Description Index type value name Input Bit 8 bits The input values for 8 BYTE 00 hex Input Bit 8 6001 hex 01 hex bits. bits The following 8 BOOL data are included.
Page 158 6 Digital Input Units  Thirty-two-point Input Units Data Default I/O port Subin- Data name Description Index type value name Input Bit 32 bits The input values for 32 DWORD 00000000 Input Bit 32 6003 hex 01 hex bits. bits The following 32 BOOL data are included.
Page 159: List Of Settings
6 Digital Input Units List of Settings The followings are the setting descriptions, setting ranges, and default values of the functions that can be used in the Digital Input Units. The settings are reflected after the Unit is restarted. Precautions for Safe Use The Unit is required to restart after the transfer of Unit operation settings on the Sysmac Studio is completed.
Page 160 6 Digital Input Units *2. The descriptions of Input Filter Mode Setting are as follows. Setting description Default value Setting range value Enable ON Filter and OFF Filter Enable Only OFF Filter NX-ID3343/ID3443 Default Setting Subin- Refer- Setting name Description Unit...
Page 161 6 Digital Input Units  Eight-point Input Units Default Setting Subin- Refer- Setting name Description Unit Index value range ence  Input Filter Value Setting Set the filter time of input 5000 01 hex P. 6-14 signal.  Input Filter Mode Setting Set the operating mode 02 hex for the filter.
Page 162 6 Digital Input Units  Sixteen-point Input Units Default Setting Subin- Refer- Setting name Description Unit Index value range ence  Input Filter Value Setting Set the filter time of input 5000 01 hex P. 6-14 signal.  Input Filter Mode Setting Set the operating mode 02 hex P.
Page 163 6 Digital Input Units  Thirty-two-point Input Units Default Setting Subin- Refer- Setting name Description Unit Index value range ence  Input Filter Value Setting Set the filter time of input 5000 01 hex P. 6-14 signal.  Input Filter Mode Setting Set the operating mode 02 hex P.
Page 164 6 Digital Input Units NX Units in Input Refreshing with Input Changed Time  Four-point Input Units Default Setting Subin- Refer- Setting name Description Unit Index value range ence  Input Bit 00 Trigger Set- Set the trigger to read the FALSE TRUE or 5005...
Page 165: Function
6 Digital Input Units Function This section describes the Digital Input Unit functions. Refer to the specifications of each model in A-1 Data Sheet on page A-2 for details on the functions. 6-4-1 List of Digital Input Unit Functions Function name Description Reference Free-Run Refreshing...
Page 166: Input Filter
6 Digital Input Units 6-4-2 Input Filter Purpose This function prevents data changes and unstable data caused by changes of input data and unstable status of input bits due to chattering and noise. You can also use this function to make the settings to easily read the pulses that ON time is short. Details on the Function ...
Page 167 6 Digital Input Units Operation when the input turns from ON to OFF (OFF filter) Input filter time Input filter time Values of input terminals OFF ON OFF OFF OFF OFF OFF OFF Input value is ON Input value is OFF because all inputs because all inputs are not OFF during...
Page 168 6 Digital Input Units You can use this function to set the following parameters. • Input Filter Value Setting • Input Filter Mode Setting The values you can set for the Input Filter Value Setting depend on the model of Digital Input Units. Default Target Units Setting name...
Page 169 6 Digital Input Units Target NX Units The Digital Input Units that support switching Free-Run refreshing and Synchronous I/O refreshing. You cannot use this function for the NX Units that support input refreshing with input changed time. Setting Method  Use the Sysmac Studio Use any of the following methods to display the Edit Unit Operation Settings Tab Page on the Edit Slave Terminal Configuration Tab Page.
Page 170 6 Digital Input Units Select the NX Unit, then click the Edit Unit Operation Settings Button. The Edit Unit Operation Settings Tab Page is displayed. 6 - 18 NX-series Digital I/O Unit User’s Manual (W521)
Page 171 6 Digital Input Units Select the filter time you want to set from the upper list of Input Filter Setting. Select the input filter mode you want to set from the lower list of Input Filter Setting. Additional Information • If you set a value different from the default value, the Value on the Sysmac Studio is dis- played in a different color.
Page 172 6 Digital Input Units Click the Transfer to Unit Button. The settings are transferred from the Sysmac Studio to the NX Unit. The settings are reflected after the Unit is restarted. Precautions for Safe Use The Unit is required to restart after the transfer of Unit operation settings on the Sysmac Studio is completed.
Page 173: Digital Output Units
Digital Output Units This section describes the types and functions of Digital Output Units and points to con- sider when these Units are used. 7-1 Types of Digital Output Units ........7-2 7-2 Specifications of I/O Data .
Page 174: Types Of Digital Output Units
7 Digital Output Units Types of Digital Output Units Digital Input Units are parts of NX Units, and process outputs of digital signals (ON/OFF signals). The Digital Output Unit types are described below. Transistor Output Units (Screwless Clamping Terminal Block, 12 mm Width) Maximum ON/OFF...
Page 175 7 Digital Output Units Transistor Output Units (MIL Connector, 30 mm Width) Maximum Num- ON/OFF Internal I/O value of Rated volt- I/O refresh- Refer- Model ber of response common load cur- ing method ence points time rent 0.1 ms 12 to 24 NX-OD5121-5 max./0.8 ms P.
Page 176: Specifications Of I/O Data
7 Digital Output Units Specifications of I/O Data This section describes I/O data for the Digital Output Units. 7-2-1 Allocable I/O Data This section describes the allocable I/O data in the Digital Output Unit. An I/O entry mapping is assigned to the I/O allocation settings for the Digital Output Unit except the Unit that supports output refreshing with specified time stamp.
Page 177 7 Digital Output Units  Four-point Output Units Data Default I/O port Subin- Data name Description Index type value name Output Bit 00 The output set value for BOOL FALSE Output Bit 00 7000 hex 01 hex output bit 00. Output Bit 01 The output set value for BOOL...
Page 178 7 Digital Output Units  Sixteen-point Output Units Data Default I/O port Subin- Data name Description Index type value name Output Bit 16 bits The output values for 16 WORD 0000 hex Output Bit 16 7002 hex 01 hex bits. bits The following 16 BOOL data are included.
Page 179 7 Digital Output Units NX Units in Output Refreshing with Specified Time Stamp  Two-point Output Units Data Default I/O port Subin- Data name Description Index Unit type value name  Output Bit 00 The output set BOOL FALSE Output Bit 00 7000 hex 01 hex value for output bit ...
Page 180: List Of Settings
7 Digital Output Units List of Settings The followings are the setting descriptions, setting ranges, and default values of the functions that can be used in the Digital Output Units. The settings are reflected after the Unit is restarted. Precautions for Safe Use The Unit is required to restart after the transfer of Unit operation settings on the Sysmac Studio is completed.
Page 181 7 Digital Output Units  Eight-point Output Units Default Setting Subin- Refer- Setting name Description Unit Index value range ence  Load Rejection Output Set the output at load OFF 00 hex 5011 01 hex P. 7-12 for Output Bit (8 bits) in units of 8 bits.
Page 182 7 Digital Output Units  Thirty-two-point Output Units Default Setting Subin- Refer- Setting name Description Unit Index value range ence  Load Rejection Output Set the output at load OFF 000000 0000000 5013 01 hex P. 7-12 for Output Bit (32 bits) in units of 32 bits.
Page 183: Function
7 Digital Output Units Function This section describes the Digital Output Unit functions. Refer to the specifications of each model in A-1 Data Sheet on page A-2 for details on the functions. 7-4-1 List of Digital Output Unit Functions Function name Description Reference Free-Run Refreshing...
Page 184: Load Rejection Output Setting
7 Digital Output Units 7-4-2 Load Rejection Output Setting Purpose This function maintains a safe output status by performing the preset output operations when Digital Output Units cannot receive the output data from the Communications Coupler Unit due to a host error on the Communications Coupler Unit or an error on the NX bus.
Page 185 7 Digital Output Units  Eight-point Output Units Default Setting name Description Unit value  Load Rejection Output for Set the output at load OFF in units of 8 bits. 00 hex Output Bit (8 bits) Bit 0: Setting for output bit 00 Bit 1: Setting for output bit 01 Bit 2: Setting for output bit 02 Bit 3: Setting for output bit 03...
Page 186 7 Digital Output Units Setting Method  Use the Sysmac Studio Use any of the following methods to display the Edit Unit Operation Settings Tab Page on the Edit Slave Terminal Configuration Tab Page. Double-click the NX Unit. Right-click the NX Unit, then select Edit Unit Operation Settings from the menu. 7 - 14 NX-series Digital I/O Unit User’s Manual (W521)
Page 187 7 Digital Output Units Select the NX Unit, then click the Edit Unit Operation Settings Button. The Edit Unit Operation Settings Tab Page is displayed. 7 - 15 NX-series Digital I/O Unit User’s Manual (W521)
Page 188 7 Digital Output Units Make the following settings according to the type of NX Unit you want to set. Two-point or Four-point Output Unit (Data type: BOOL) Select False (OFF) or True (Hold the present value) from the list of Load Rejection Output Setting for which the output bit you want to set.
Page 189 7 Digital Output Units Click the Transfer to Unit Button. The settings are transferred from the Sysmac Studio to the NX Unit. The settings are reflected after the Unit is restarted. Precautions for Safe Use The Unit is required to restart after the transfer of Unit operation settings on the Sysmac Studio is completed.
Page 190: Load Short-Circuit Protection
7 Digital Output Units 7-4-3 Load Short-circuit Protection Purpose This function is used to protect the output circuits of the Digital Output Units when an external connec- tion load short-circuit occurs. Details on the Function As shown in the figure below, normally when the output bit (OUT) turns ON, the transistor turns ON and then output current (Iout) will flow.
Page 191 7 Digital Output Units  Restrictions on Use The load short-circuit protection function only protects internal circuits for a short period. As shown in the figure above, the load short-circuit protection of this NX Unit is automatically released when the Tj equals to Tr. Therefore, unless the cause of short-circuit is removed, ON/OFF operations are repeated in the out- put.
Page 192: Push-Pull Output
7 Digital Output Units Push-pull Output The Digital Output Units with the ON/OFF response time of 1 μs or less use a push-pull output to increase the speed of the output ON/OFF response. For this type of the Output Units, use the single load power supply for the I/O power and connected external devices.
Page 193: Precautions When Using The Relay Output Units
7 Digital Output Units Precautions when Using the Relay Output Units This section describes precautions when using the Relay Output Units. Relay Service Life The service life of Relay Output Units depends on the type of load, contact current and ambient temper- ature.
Page 194 7 Digital Output Units Inductive Load The life of the Relay varies with the load inductance. If any inductive load is used, we recommend that you use a contact protection circuit. Contact Protec- tion Circuit on page 7-22). Be sure to connect a contact protection circuit in parallel with every DC inductive load that is connected to the Contact Output Unit because the usage of a contact protection circuit has a significant effect on the service life of the contact.
Page 195 7 Digital Output Units Current Circuit Feature Required element Diode × Yes The diode connected in The reversed dielectric strength method parallel with the load value of the diode must be at changes energy accu- least 10 times as large as the mulated by the coil into a circuit voltage value.
Page 196 7 Digital Output Units Precautions for Correct Use Do not connect a contact protection circuit with an inductive load as shown in the diagram below. Power supply This contact protection circuit is very effective for preventing spark discharge when the circuit is opened.
Page 197: Digital Mixed I/O Units
Digital Mixed I/O Units This section describes the types and functions of Digital Mixed I/O Units and points to consider when these Units are used. 8-1 Types of Digital Mixed I/O Units ........8-2 8-2 Specifications of I/O Data .
Page 198: Types Of Digital Mixed I/O Units
8 Digital Mixed I/O Units Types of Digital Mixed I/O Units Digital Mixed I/O Units are parts of NX Units, and process both inputs and outputs of digital signals (ON/OFF signals). The Digital Mixed I/O Unit types are described below. DC Input/Transistor Output Units (MIL Connector, 30 mm Width) Num- Maximum...
Page 199: Specifications Of I/O Data
8 Digital Mixed I/O Units Specifications of I/O Data This section describes I/O data for the Digital Mixed I/O Units. 8-2-1 Allocable I/O Data This section describes the allocable I/O data in the Digital Mixed I/O Units. An I/O entry mapping is assigned to the I/O allocation settings for the Digital Mixed I/O Units. A specific I/O entry is assigned to the I/O entry mapping for each NX Unit model.
Page 200 8 Digital Mixed I/O Units Output section Data Default I/O port Subin- Data name Description Index type value name Output Bit 16 bits The output values for 16 WORD 0000 hex Output Bit 16 7002 hex 01 hex bits. bits The following 16 BOOL data are included.
Page 201: List Of Settings
8 Digital Mixed I/O Units List of Settings The following are the setting descriptions, setting ranges, and default values of the functions that can be used in the Digital Mixed I/O Units. The settings are reflected after the Unit is restarted. Precautions for Safe Use The Unit is required to restart after the transfer of Unit operation settings on the Sysmac Studio is completed.
Page 202: Output Settings
8 Digital Mixed I/O Units *2. The descriptions of Input Filter Mode Setting are as follows. Setting description Default value Setting range value Enable ON Filter and OFF Filter Enable Only OFF Filter 8-3-2 Output Settings NX Units in Free-Run Refreshing or Synchronous I/O Refreshing ...
Page 203: Function
8 Digital Mixed I/O Units Function This section describes the Digital Mixed I/O Unit functions. Refer to the specifications of each model in A-1 Data Sheet on page A-2 for details on the functions. 8-4-1 Input Functions Function name Description Reference Free-Run Refreshing With this I/O refreshing method, the refresh cycle of the NX...
Page 204 8 Digital Mixed I/O Units 8 - 8 NX-series Digital I/O Unit User’s Manual (W521)
Page 205: Troubleshooting
Troubleshooting This section describes the error information and corrections for errors that can occur when the Digital I/O Units are used. 9-1 How to Check for Errors ........9-2 9-2 Checking for Errors with the Indicators .
Page 206: How To Check For Errors
9 Troubleshooting How to Check for Errors Use one of the following error checking methods. • Checking the indicators • Troubleshooting with the Sysmac Studio Refer to the user’s manual for the connected Communications Coupler Unit for details on troubleshoot- ing with the Sysmac Studio.
Page 207: Checking For Errors With The Indicators
9 Troubleshooting Checking for Errors with the Indicators You can use the TS indicators on the NX Units to check the NX Unit status and level of errors. This section describes the meanings of errors that the TS indicator shows and the troubleshooting pro- cedures for them.
Page 208 9 Troubleshooting TS indicator Cause Correction Green Not Lit FS (1 s) NX Unit Output Synchronization Refer to Event NX Unit Output Synchronization Error Error on page 9-13. Not Lit NX Unit Clock Not Synchronized Refer to Event NX Unit Clock Not Synchronized Error Error on page 9-14.
Page 209: Checking For Errors And Troubleshooting On The Sysmac Studio
9 Troubleshooting Checking for Errors and Trouble- shooting on the Sysmac Studio Error management on the NX Series is based on the methods used for the NJ-series Controllers. This allows you to use the Sysmac Studio to check the meanings of errors and troubleshooting proce- dures.
Page 210 9 Troubleshooting Log of Past Errors Open the Sysmac Studio's Controller Event Log Tab Page to check the times, levels, sources, source details, event names, event codes, details, attached information 1 to 4, and corrections for previous errors. Additional Information Number of Logs of Past Errors Event logs in the Digital I/O Units are stored in the Communications Coupler Unit.
Page 211: Event Codes And Corrections For Errors
9 Troubleshooting 9-3-2 Event Codes and Corrections for Errors The errors (i.e.,events) that occur in the Digital I/O Unit is shown below. The following abbreviations are used in the event level column. Abbreviation Name Major fault level Partial fault level Minor fault level Observation Info...
Page 212 9 Troubleshooting Level Event code Event name Meaning Assumed cause Reference Obs Info 80210000 hex NX Unit Out- An output synchro- • The NX Unit is not mounted P. 9-13 put Synchro- nization error properly. nization Error occurred in the NX •...
Page 213: Meaning Of Error
Continues: Execution of the user program will continue. Stops: Execution of the user program stops. Starts: Execution of the user program starts. *5. “System information” indicates internal system information that is used by OMRON. 9 - 9 NX-series Digital I/O Unit User’s Manual (W521)
Page 214 9 Troubleshooting Event name Non-volatile Memory Hardware Error Event code 00200000 hex Meaning An error occurred in non-volatile memory. Source Depends on where the Sysmac Source details NX Unit Detection When power is Studio is connected and the sys- timing turned ON to tem configuration.
Page 215 9 Troubleshooting Event name Control Parameter Error in Master Event code 10410000 hex Meaning An error occurred in the control parameters that are saved in the master. Source Depends on where the Sysmac Source details NX Unit Detection When power is Studio is connected and the sys- timing turned ON to...
Page 216 9 Troubleshooting Event name NX Unit I/O Communications Error Event code 80200000 hex Meaning An I/O communications error occurred between the Communications Coupler Unit and the NX Unit. Source Depends on where the Sysmac Source details NX Unit Detection Continuously Studio is connected and the sys- timing tem configuration.
Page 217 9 Troubleshooting Event name NX Unit Output Synchronization Error Event code 80210000 hex Meaning An output synchronization error occurred in the NX Unit. Source Depends on where the Sysmac Source details NX Unit Detection Continuously Studio is connected and the sys- timing tem configuration.
Page 218 9 Troubleshooting Event name NX Unit Clock Not Synchronized Error Event code 80240000 hex Meaning An error occurred in the clock information between the EtherCAT Coupler Unit and the NX Unit. Source Depends on where the Sysmac Source details NX Unit Detection Continuously Studio is connected and the sys-...
Page 219 9 Troubleshooting Event name Event Log Cleared Event code 90400000 hex Meaning The event log was cleared. Source Depends on where the Sysmac Source details NX Unit Detection When Studio is connected and the sys- timing commanded tem configuration. from user Error Level Information...
Page 220: Resetting Errors
9 Troubleshooting Resetting Errors Refer to the user’s manual for the connected Communications Coupler Unit for details on how to reset errors. 9 - 16 NX-series Digital I/O Unit User’s Manual (W521)
Page 221: Troubles Specific To Each Type Of Nx Units
9 Troubleshooting Troubles Specific To Each Type of NX Units 9-5-1 Digital Inputs Problem Assumed cause Correction Although a connected The I/O power is not supplied. Check that the I/O power is supplied. external device is ON, The I/O power supply voltage Set the I/O power supply voltage within the rated nothing is input and the is outside the rated range.
Page 222: Digital Outputs
9 Troubleshooting 9-5-2 Digital Outputs Problem Assumed cause Correction When the output is ON, The I/O power is not supplied. Check that the I/O power is supplied. nothing is output although The I/O power supply voltage Set the I/O power supply voltage within the rated the output indicator is lit.
Page 223: Troubleshooting Flowchart
9 Troubleshooting Troubleshooting Flowchart Refer to the user’s manual for the connected Communications Coupler Unit for details on the standard troubleshooting process when an error occurs. 9 - 19 NX-series Digital I/O Unit User’s Manual (W521)
Page 224 9 Troubleshooting 9 - 20 NX-series Digital I/O Unit User’s Manual (W521)
Page 225: Cleaning And Inspection
Inspection and Maintenance This section describes how to clean, inspect, and maintain the system. 10-1 Cleaning and Inspection ........10-2 10-1-1 Cleaning .
Page 226: Cleaning And Inspection
10 Inspection and Maintenance 10-1 Cleaning and Inspection This section describes daily device maintenance such as cleaning and inspection. Make sure to perform daily or periodic inspections in order to maintain the Digital I/O Unit's functions in the best operating condition. 10-1-1 Cleaning Perform the following cleaning procedures periodically to ensure Digital I/O Units are maintained in the best operating condition.
Page 227 10 Inspection and Maintenance Periodic Inspection Items Inspec- Inspection details Criteria Correction tion item External Is the power supply voltage mea- Within the power supply Use a voltage tester to check the power power sup- sured at the terminal block within voltage range supply at the terminals.
Page 228 10 Inspection and Maintenance Tools Required for Inspections  Required Tools • Phillips screwdriver • Flat-blade screwdriver • Voltage tester or digital voltmeter • Industrial alcohol and pure cotton cloth  Tools Required Occasionally • Oscilloscope • Thermometer and hygrometer 10 - 4 NX-series Digital I/O Unit User’s Manual (W521)
Page 229: Maintenance Procedures
10 Inspection and Maintenance 10-2 Maintenance Procedures When you replace a Digital I/O Unit, follow the procedure in the user’s manual for the connected Com- munications Coupler Unit. 10 - 5 NX-series Digital I/O Unit User’s Manual (W521)
Page 230 10 Inspection and Maintenance 10 - 6 NX-series Digital I/O Unit User’s Manual (W521)
Page 231: Appendices
Appendices This section describes the data sheets of the Digital I/O Units and their dimensions. A-1 Data Sheet ........... . A-2 A-1-1 Model List .
Page 232: A-1 Data Sheet
Switching Synchro- 20 μs max./400 μs NX-ID3317 12 to 24 VDC P. A-7 nous I/O refreshing max. and Free-Run refresh- NX-ID3343 P. A-8 100 ns max./100 ns 24 VDC Input refreshing with max. NX-ID3344 input changed time P. A-9...
Page 233 Appendices AC Input Units (Screwless Clamping Terminal Block, 12 mm Width) I/O refreshing ON/OFF response Model Rated input voltage Reference method time poin 200 to 240 VAC, 50/60 Hz (170 10 ms max./40 ms NX-IA3117 point Free-Run refreshing P. A-22 to 264 VAC, 3 Hz) max.
Page 234 Appendices Transistor Output Units (MIL Connector, 30 mm Width) Maximum ON/OFF Number Internal I/O Rated volt- I/O refresh- Refer- Model value of load response of points common ing method ence current time 0.1 ms NX-OD5121-5 12 to 24 VDC max./0.8 ms P.
Page 235: Digital Input Units
Appendices A-1-2 Digital Input Units Description of Items on Data Sheet of the DC Input Units The meanings of the items on the data sheet of the DC Input Unit are explained in the table below. Item Description Unit name The name of the Unit.
Page 236 Appendices Description of Items on Data Sheet of the AC Input Units The meanings of the items on the data sheet of the AC Input Units are explained in the table below. Item Description Unit name The name of the Unit. Model The model of the Unit.
Page 237 Appendices DC Input Units (Screwless Clamping Terminal Block, 12 mm Width) Unit name DC Input Unit Model NX-ID3317 Number of points 4 points External connection Screwless clamping terminal block (12 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, input indicators Internal I/O common...
Page 238 Appendices Unit name DC Input Unit Model NX-ID3343 Number of points 4 points External connection Screwless clamping terminal block (12 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, input indicators Internal I/O common Rated input voltage 24 VDC (15 to 28.8 VDC)
Page 239 Appendices Unit name DC Input Unit Model NX-ID3344 Number of points 4 points External connection Screwless clamping terminal block (12 ter- terminals minals) I/O refreshing method Input refreshing with input changed time Indicators TS indicator, input indicators Internal I/O common Rated input voltage 24 VDC (15 to 28.8 VDC) Input current...
Page 240 Appendices Unit name DC Input Unit Model NX-ID3417 Number of points 4 points External connection Screwless clamping terminal block (12 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, input indicators Internal I/O common Rated input voltage 12 to 24 VDC (9 to 28.8 VDC) Input current...
Page 241 Appendices Unit name DC Input Unit Model NX-ID3443 Number of points 4 points External connection Screwless clamping terminal block (12 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, input indicators Internal I/O common Rated input voltage 24 VDC (15 to 28.8 VDC) Input current...
Page 242 Appendices Unit name DC Input Unit Model NX-ID3444 Number of points 4 points External connection Screwless clamping terminal block (12 ter- terminals minals) I/O refreshing method Input refreshing with input changed time Indicators TS indicator, input indicators Internal I/O common Rated input voltage 24 VDC (15 to 28.8 VDC) Input current...
Page 243 Appendices Unit name DC Input Unit Model NX-ID4342 Number of points 8 points External connection Screwless clamping terminal block (16 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, input indicators Internal I/O common Rated input voltage 24 VDC (15 to 28.8 VDC) Input current...
Page 244 Appendices Unit name DC Input Unit Model NX-ID4442 Number of points 8 points External connection Screwless clamping terminal block (16 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, input indicators Internal I/O common Rated input voltage 24 VDC (15 to 28.8 VDC) Input current...
Page 245 Appendices Unit name DC Input Unit Model NX-ID5342 Number of points 16 points External connection Screwless clamping terminal block (16 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, input indicators Internal I/O common Rated input voltage 24 VDC (15 to 28.8 VDC) Input current...
Page 246 Appendices Unit name DC Input Unit Model NX-ID5442 Number of points 16 points External connection Screwless clamping terminal block (16 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, input indicators Internal I/O common Rated input voltage 24 VDC (15 to 28.8 VDC) Input current...
Page 247 Appendices DC Input Units (MIL Connector, 30 mm Width) Unit name DC Input Unit Model NX-ID5142-5 Number of points 16 points External connection MIL connector (20 terminals) terminals I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, input indicators Internal I/O common For both NPN/PNP Rated input voltage...
Page 248 Appendices Installation orienta- Installation orientation: Possible in 6 orientations. tion and restrictions Restrictions: As shown in the following. • For upright installation Number of simultaneously ON input points vs. Ambient temperature characteristic 16 points at 45°C 12 points at 55°C I/O power supply voltage 28.8 V Ambient temperature...
Page 249 Appendices Unit name DC Input Unit Model NX-ID6142-5 Number of points 32 points External connection MIL connector (40 terminals) terminals I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, input indicators Internal I/O common For both NPN/PNP Rated input voltage 24 VDC (19 to 28.8 VDC) Input current...
Page 250 Appendices Installation orienta- Installation orientation: Possible in 6 orientations. tion and restrictions Restrictions: As shown in the following. • For upright installation Number of simultaneously ON input points vs. Ambient temperature characteristic 32 points at 45°C 32 points at 40°C 13 points/common at 55°C 10 points/common at 55°C I/O power supply voltage...
Page 251 Appendices Terminal connection diagram Signal Connector Signal 24 VDC name name COM1 COM1 IN31 IN23 IN30 IN22 IN29 IN21 IN28 IN20 IN27 IN19 IN26 IN18 IN25 IN17 24 VDC IN24 IN16 COM0 COM0 IN15 IN07 IN14 IN06 IN13 IN05 IN12 IN04 IN11 IN03...
Page 252 Appendices AC Input Units (Screwless Clamping Terminal Block, 12 mm Width) Unit name AC Input Unit Model NX-IA3117 Number of points 4 points, independent contacts External connection Screwless clamping terminal block (8 ter- terminals minals) I/O refreshing method Free-Run refreshing Indicators TS indicator, input indicators Internal I/O common...
Page 253 Appendices Terminal connection AC Input Unit diagram NX-IA3117 200 to 240 VAC 200 to 240 VAC Disconnection/ Not supported. Protective function Not supported. Short-circuit detection A - 23 NX-series Digital I/O Unit User’s Manual (W521)
Page 254: A-1-3 Digital Output Units
Appendices A-1-3 Digital Output Units Description of Items on the Data Sheet of the Transistor Output Unit The meanings of the items on the data sheet of the Transistor Output Units are explained in the table below. Item Description Unit name The name of the Unit.
Page 255 Appendices Description of Items on the Data Sheet of the Relay Output Unit The meanings of the items on the data sheet of the Relay Output Unit are explained in the table below. Item Description Unit name The name of the Unit. Model The model of the Unit.
Page 256 Appendices Transistor Output Units (Screwless Clamping Terminal Block, 12 mm Width) Unit name Transistor Output Unit Model NX-OD2154 Number of points 2 points External connection Screwless clamping terminal block (8 ter- terminals minals) I/O refreshing method Output refreshing with specified time stamp Indicators TS indicator, output indicator Internal I/O common...
Page 257 Appendices Disconnec- Not supported. Protective function Not supported. tion/Short-circuit detection A - 27 NX-series Digital I/O Unit User’s Manual (W521)
Page 258 Appendices Unit name Transistor Output Unit Model NX-OD2258 Number of points 2 points External connection Screwless clamping terminal block (8 ter- terminals minals) I/O refreshing method Output refreshing with specified time stamp Indicators TS indicator, output indicator Internal I/O common Rated voltage 24 VDC Operating load voltage...
Page 259 Appendices Unit name Transistor Output Unit Model NX-OD3121 Number of points 4 points External connection Screwless clamping terminal block (12 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, output indicator Internal I/O common Rated voltage 12 to 24 VDC Operating load voltage...
Page 260 Appendices Unit name Transistor Output Unit Model NX-OD3153 Number of points 4 points External connection Screwless clamping terminal block (12 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, output indicator Internal I/O common Rated voltage 24 VDC Operating load voltage...
Page 261 Appendices Unit name Transistor Output Unit Model NX-OD3256 Number of points 4 points External connection Screwless clamping terminal block (12 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, output indicator Internal I/O common Rated voltage 24 VDC Operating load voltage...
Page 262 Appendices Unit name Transistor Output Unit Model NX-OD3257 Number of points 4 points External connection Screwless clamping terminal block (12 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, output indicator Internal I/O common Rated voltage 24 VDC Operating load voltage...
Page 263 Appendices Disconnec- Not supported. Protective function With load short-circuit protection. tion/Short-circuit detection A - 33 NX-series Digital I/O Unit User’s Manual (W521)
Page 264 Appendices Unit name Transistor Output Unit Model NX-OD4121 Number of points 8 points External connection Screwless clamping terminal block (16 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, output indicator Internal I/O common Rated voltage 12 to 24 VDC Operating load voltage...
Page 265 Appendices Unit name Transistor Output Unit Model NX-OD4256 Number of points 8 points External connection Screwless clamping terminal block (16 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, output indicator Internal I/O common Rated voltage 24 VDC Operating load voltage...
Page 266 Appendices Unit name Transistor Output Unit Model NX-OD5121 Number of points 16 points External connection Screwless clamping terminal block (16 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, output indicator Internal I/O common Rated voltage 12 to 24 VDC Operating load voltage...
Page 267 Appendices Unit name Transistor Output Unit Model NX-OD5256 Number of points 16 points External connection Screwless clamping terminal block (16 ter- terminals minals) I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, output indicator Internal I/O common Rated voltage 24 VDC Operating load voltage...
Page 268 Appendices Transistor Output Units (MIL Connector, 30 mm Width) Unit name Transistor Output Unit Model NX-OD5121-5 Number of points 16 points External connection MIL connector (20 terminals) terminals I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, output indicator Internal I/O common Rated voltage 12 to 24 VDC...
Page 269 Appendices Disconnec- Not supported. Protective function Not supported. tion/Short-circuit detection A - 39 NX-series Digital I/O Unit User’s Manual (W521)
Page 270 Appendices Unit name Transistor Output Unit Model NX-OD5256-5 Number of points 16 points External connection MIL connector (20 terminals) terminals I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, output indicator Internal I/O common Rated voltage 24 VDC Operating load voltage 20.4 to 28.8 VDC...
Page 271 Appendices Unit name Transistor Output Unit Model NX-OD6121-5 Number of points 32 points External connection MIL connector (40 terminals) terminals I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, output indicator Internal I/O common Rated voltage 12 to 24 VDC Operating load voltage 10.2 to 28.8 VDC...
Page 272 Appendices Terminal connection diagram Signal Connector Signal name name COM1 COM1 OUT31 OUT23 OUT30 OUT22 OUT29 OUT21 OUT28 OUT20 OUT27 OUT19 OUT26 OUT18 OUT25 OUT17 OUT24 OUT16 COM0 COM0 OUT15 OUT07 OUT14 OUT06 • Be sure to wire both pins 21 OUT13 OUT05 and 22 (+V0).
Page 273 Appendices Unit name Transistor Output Unit Model NX-OD6256-5 Number of points 32 points External connection MIL connector (40 terminals) terminals I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Indicators TS indicator, output indicator Internal I/O common Rated voltage 24 VDC Operating load voltage 20.4 to 28.8 VDC...
Page 274 Appendices Terminal connection diagram Signal Connector Signal name name COM1 (+V) COM1 (+V) OUT31 OUT23 OUT30 OUT22 OUT29 OUT21 OUT28 OUT20 OUT27 OUT19 OUT26 OUT18 OUT25 OUT17 OUT24 OUT16 COM0 (+V) COM0 (+V) OUT15 OUT07 OUT14 OUT06 • Be sure to wire both pins 21 OUT13 OUT05 and 22 (COM0 (+V)).
Page 275 Appendices Relay Output Units (Screwless Clamping Terminal Block, 12 mm Width) Unit name Relay Output Unit Model NX-OC2633 Number of points 2 points, independent contacts External connection Screwless clamping terminal block (8 ter- terminals minals) I/O refreshing method Free-Run refreshing Indicators TS indicator, output indicator Relay type...
Page 276 Appendices Installation orienta- Installation orientation: Possible in 6 orientations. tion and restrictions Restrictions: No restrictions Terminal connection diagram Relay Output Unit NX-OC2633 Load Load Disconnec- Not supported. Protective function Not supported. tion/Short-circuit detection *1. Electrical service life will vary depending on the current value. Refer to Precautions when Using the Relay Output Units on page 7-21 for details.
Page 277 Appendices Unit name Relay Output Unit Model NX-OC2733 Number of points 2 points, independent contacts External connection Screwless clamping terminal block (8 ter- terminals minals) I/O refreshing method Free-Run refreshing Indicators TS indicator, output indicator Relay type N.O. + N.C. contact Maximum switching 250 VAC/2 A (cosΦ...
Page 278 Appendices Terminal connection diagram Relay Output Unit NX-OC2733 Load Load Disconnec- Not supported. Protective function Not supported. tion/Short-circuit detection *1. Electrical service life will vary depending on the current value. Refer to Relay Service Life on page 7-21 for details. A - 48 NX-series Digital I/O Unit User’s Manual (W521)
Page 279: A-1-4 Digital Mixed I/O Units
Appendices A-1-4 Digital Mixed I/O Units Description of Items on the Data Sheet of the DC Input/Transistor Output Units Item Description Unit name The name of the Unit. Model The model of the Unit. Number of points The number of input and output points provided by the Unit. External connection terminals The type of terminal block and connector that is used for connecting the Unit.
Page 280 Appendices Item Description Terminal connection diagram A diagram of the connection between the Unit and connected external devices. When an I/O Power Supply Connection Unit or a Shield Connection Unit is required to be connected to the connected external devices, the description for such is included.
Page 281 Appendices DC Input/Transistor Output Units (MIL Connector, 30 mm Width) Unit name DC Input/Transistor Output Unit Model NX-MD6121-5 Number of points 16 inputs/16 outputs External connection 2 MIL connectors (20 terminals) terminals I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Out- Internal I/O Input...
Page 282 Appendices Circuit layout CN1 (left) output circuit OUT0 to OUT15 Connector COM0 COM0 I/O power I/O power NX bus NX bus supply + supply + connector connector I/O power I/O power (left) (right) supply − supply − CN2 (right) input circuit Input indicator 3.3 kΩ...
Page 283 Appendices Installation orientation Installation orientation: Possible in 6 orientations. and restrictions Restrictions: As shown in the following. • For upright installation Number of simultaneously ON input points vs. Ambient temperature characteristic 16 points at 35°C 16 points at 45°C 13 points at 55°C 9 points at 55°C I/O power supply voltage 24 V...
Page 284 Appendices Terminal connection CN1 (left) output terminal diagram Signal Connector Signal name name OUT0 OUT8 OUT1 OUT9 OUT2 OUT10 OUT3 OUT11 OUT4 OUT12 OUT5 OUT13 OUT6 OUT14 OUT7 OUT15 COM0 COM0 12 to 24 VDC • Be sure to wire both pins 3 and 4 (COM0) of CN1. •...
Page 285 Appendices Unit name DC Input/Transistor Output Unit Model NX-MD6256-5 Number of points 16 inputs/16 outputs External connection 2 MIL connectors (20 terminals) terminals I/O refreshing method Switching Synchronous I/O refreshing and Free-Run refreshing Out- Internal I/O Input Internal I/O For both NPN/PNP common sec- common...
Page 286 Appendices Circuit layout CN1 (left) output circuit COM0 (+V) COM0 (+V) Connector OUT0 to OUT15 I/O power I/O power NX bus NX bus supply + supply + connector connector I/O power I/O power (left) (right) supply − supply − CN2 (right) input circuit Input indicator 3.3 kΩ...
Page 287 Appendices Installation orientation Installation orientation: Possible in 6 orientations. and restrictions Restrictions: As shown in the following. • For upright installation Number of simultaneously ON input points vs. Ambient temperature characteristic 16 points at 35°C 16 points at 45°C 13 points at 55°C 9 points at 55°C I/O power supply voltage 24 V...
Page 288 Appendices Terminal connection diagram CN1 (left) output terminal Signal Connector Signal name name OUT0 OUT8 OUT1 OUT9 OUT2 OUT10 OUT3 OUT11 OUT4 OUT12 OUT5 OUT13 OUT6 OUT14 OUT7 OUT15 COM0 (+V) COM0 (+V) 24 VDC • Be sure to wire both pins 3 and 4 (COM0 (+V)) of CN1. •...
Page 289: A-2 Dimensions
Appendices A-2 Dimensions A-2-1 Screwless Clamping Terminal Block Type 12 mm Width 14.1 1.35 12.0 65.2 80.1 (Unit: mm) A - 59 NX-series Digital I/O Unit User’s Manual (W521)
Page 290 Appendices Installation Height (Unit: mm) A - 60 NX-series Digital I/O Unit User’s Manual (W521)
Page 291: A-2-2 Connector Types
Appendices A-2-2 Connector Types 30 mm Width  Units with MIL Connectors (1 Connector with 20 terminals) 16.1 19.1 65.2 89.52 32.1 (Unit: mm)  Units with MIL Connectors (1 Connector with 40 terminals) 16.1 19.1 65.2 32.1 89.52 (Unit: mm) A - 61 NX-series Digital I/O Unit User’s Manual (W521)
Page 292 Appendices  Units with MIL Connectors (2 Connectors with 20 terminals) 16.1 19.1 65.2 32.1 89.52 (Unit: mm) A - 62 NX-series Digital I/O Unit User’s Manual (W521)
Page 293: Connecting Connector-Terminal Block Conversion Units And I/O Relay Terminals
Patterns for Combining Connector-Terminal Block Conversion Units and I/O Relay Terminals The following patterns can be used to connect Digital I/O Units with connectors to OMRON Connec- tor-Terminal Block Conversion Units and I/O Relay Terminals using OMRON Connecting Cables. Connection Patterns for Connector-Terminal Block Conversion...
Page 294 Appendices Connection Patterns for I/O Relay Terminals Pattern Configuration Connecting Cable I/O Relay Terminal I/O Relay Terminal I/O Relay Terminal Connecting Cable Connecting Cable I/O Relay Terminal A - 64 NX-series Digital I/O Unit User’s Manual (W521)
Page 295: A-3-2 Combinations Of Connections
Appendices A-3-2 Combinations of Connections Combinations of OMRON Connecting Cables with Connector-Terminal Block Conversion Units and I/O Relay Terminals are shown below. Connections to Connector-Terminal Block Conversion Units Num- Con- Num- Com- Con- ber of Polar- nec- ber of Connecting...
Page 296 Appendices Num- Con- Num- Com- Con- ber of Polar- nec- ber of Connecting Connector-Terminal Block Unit nection capacity con- tion branc Cable Conversion Unit termi- diagram nectors pattern  None XW2Z- XW2D-40G6 None P. A-72 None XW2Z-  XW2B-40G5 None None XW2Z- ...
Page 297 Appendices Connections to I/O Relay Terminals Number of Connec- Number Con- Polar- Connecting Unit connec- tion pat- I/O Relay Terminal nection capacity Cable tors tern branches diagram None  G7TC-ID16 G79-O 1 MIL con- NX-ID5142-5 16 inputs nector None G79-O ...
Page 298: A-3-3 Connector-Terminal Block Conversion Unit Connection Diagrams
Appendices A-3-3 Connector-Terminal Block Conversion Unit Connection Diagrams The applicable terminals on the Connector-Terminal Block Conversion Unit and external connection diagrams are provided below for Digital I/O Unit connections to Connector-Terminal Block Conversion Units. In the connection diagrams here, 1 word consists of 16 points of the I/O terminals and the first word is called Wd m.
Page 299 Appendices Digital I/O Digital I/O NX-ID6142-5 NX-ID6142-5 Unit Unit Connec- Connec- tor-Terminal XW2D-40G6 tor-Terminal XW2C-20G6-IO16 (2 Units) Block Con- XW2D-40G6-RM Block Con- version Unit version Unit Connecting Connecting XW2Z-  XW2Z-  Cable Cable Wd m 24 VDC (Wd (m+1)) −...
Page 300 Appendices Outputs Digital I/O Digital I/O NX-OD5121-5 NX-OD5256-5 Unit Unit Connec- Connec- tor-Terminal tor-Terminal XW2D-20G6 XW2D-20G6 Block Con- Block Con- version Unit version Unit Connecting Connecting   XW2Z- XW2Z- Cable Cable Connection Connection diagram diagram COM (+V) COM (+V) Note The COM terminals and +V terminals are internally Note The 0 V terminals and COM (+V) terminals are inter- connected inside the Unit, but they must all be wired.
Page 301 Appendices Digital I/O Digital I/O NX-OD6121-5 NX-OD6121-5 Unit Unit Connec- Connec- tor-Terminal tor-Terminal XW2D-40G6 XW2C-20G6-IO16 (2 Units) Block Con- Block Con- version Unit version Unit Connecting Connecting   XW2Z- XW2Z- Cable Cable Wd m (Wd (m+1)) 12 to − −...
Page 302 Appendices Digital I/O Digital I/O NX-OD6256-5 NX-OD6256-5 Unit Unit Connec- Connec- tor-Terminal tor-Terminal XW2D-40G6 XW2C-20G6-IO16 (2 Units) Block Con- Block Con- version Unit version Unit Connecting Connecting   XW2Z- XW2Z- Cable Cable Wd m (Wd (m+1)) − − COM0 (COM1) Wd m −...
Page 303 Appendices Inputs and Outputs Digital I/O Digital I/O NX-MD6121-5 NX-MD6256-5 Unit Unit Connec- Connec- tor-Terminal tor-Terminal XW2D-20G6 XW2D-20G6 Block Con- Block Con- version Unit version Unit Connecting Connecting   XW2Z- XW2Z- Cable Cable (OUT) (OUT) Wd m Wd m 07 L COM (0 V) COM (+V)
Page 304: A-3-4 Connection Diagrams For I/O Relay Terminals
Appendices A-3-4 Connection Diagrams for I/O Relay Terminals Connection examples and internal connection diagrams for I/O Relay Terminals connected to Digital I/O Units are shown below. Inputs  G7TC I/O Relay Terminals G7TC-ID16 G7TC-IA16 G7TC G7TC Relay side Relay side −...
Page 305 Appendices Outputs  G70D-V Relay Terminals G70D-VSOC16 G70D-VSOC16+G70D-ET Power supply Power supply G70D - VSOC16 G70D - VSOC16 G70D - ET Back Back side side Output Unit Output Unit TOP VIEW TOP VIEW Note 1. All outputs are independent. Note 1. All outputs are independent. They are also isolated from the Output Unit and They are also isolated from the Output Unit and I/O Relay Terminal.
Page 306 Appendices  G70D Relay Terminals G70D-SOC16 G70D-SOC08 Power supply G70D - SOC16 Power supply G70D - SOC08 Relay side Output Unit Relay side Output Unit TOP VIEW TOP VIEW Note 1. Every two outputs share a common. The current Note 1. All outputs are independent. supplied is 3 A per common.
Page 307 Appendices  G70D Relay Terminals  G70R Relay Terminals G70D-SOC16-1 G70R-SOC08 Power supply G70D - SOC16-1 Power supply G70R - SOC08 Output Unit Relay side Output Unit TOP VIEW TOP VIEW Note 1. Every two outputs share a common. The current Note 1.
Page 308 Appendices  G7TC I/O Relay Terminals G7TC-OC16/OC08 G7TC-OC16-1 Power supply Power supply G7TC G7TC Relay side Relay side Output Unit Output Unit TOP VIEW TOP VIEW Note 1. All outputs are independent. Note 1. All outputs are independent. They are also isolated from the Output Unit and They are also isolated from the Output Unit and I/O Relay Terminal.
Page 309 Appendices  G70A-ZOC16 Relay Terminal Socket G70A-ZOC16-3 + G2R-1-S (16 Units) Power supply G70A-ZOC16-3 + G2R-1-S (16 Units) Relay side Output Unit TOP VIEW Note 1. The above diagram is an example with the G2R-1-S (N) mounted to the G70A-ZOC16-3. 2.
Page 310: Emc Directive Measures For Relay Outputs
Appendices A-4 EMC Directive Measures for Relay Outputs  Conformance to EC Directives The NX-series I/O Units conform to the Common Emission Standards (EN 61131-2) of the EMC Directives. However, when incorporating in the system, noise generated by relay output switching may not satisfy these Standards.
Page 311: A-5 List Of Nx Objects
Appendices A-5 List of NX Objects This section describes the NX objects of the Digital I/O Units. A-5-1 Format of Object Descriptions In this manual, NX objects are described with the following format. Data Index Subindex Default Data allo- Object name Data range Unit attri-...
Page 312: A-5-2 Digital Input Units
*3. The product codes are assigned for each product model. Bits 0 to 31: Product code *4. OMRON vendor code *5. Bits 24 to 31: Integer part of the Unit version. Bits 16 to 23: Fractional part of the Unit version.
Page 313 Appendices Objects That Accept I/O Allocations These objects accept I/O allocations. You cannot access the objects that are described below with the Read NX Unit Object instruction or the Write NX Unit Object instruction. Refer to the NJ-series Instructions Reference Manual (Cat. No. W502-E1-07 or later) for details on the Read NX Unit Object instruction or the Write NX Unit Object instruction.
Page 314 Appendices Data Index Subindex Default Data allo- Object name Data range Unit attri- (hex) (hex) value type cat- bute         6001 BYTE Input   Number of Entries USINT pos- sible   Input Bit 8 bits 00 hex BYTE...
Page 315 Appendices Data Index Subindex Default Data allo- Object name Data range Unit attri- (hex) (hex) value type cat- bute         6003 DWORD Input   Number of Entries USINT possi   Input Bit 32 bits 00000000 00000000 to DWORD...
Page 316 Appendices Other Objects This section lists other objects. Data Index Subindex Default Data allo- Object name Data range Unit attri- (hex) (hex) value type cat- bute         5000 Input Filter Setting   Number of Entries USINT pos-...
Page 317 *1. The default value and data range for Number of Entries are as follows. NX Units Default value Data range NX-ID3343/ID3443 2 (fixed) Other models 0 (fixed) *2. The meaning of the set values for Input Filter Value Setting is as follows.
Page 318 Appendices Data Index Subindex Default Data allo- Object name Data range Unit attri- (hex) (hex) value type cat- bute         5005 Time Stamp (Trigger Set- ting)   Number of Entries USINT pos- sible ...
Page 319 Appendices Data Index Subindex Default Data allo- Object name Data range Unit attri- (hex) (hex) value type cat- bute         5006 Time Stamp (Mode Set- ting)   Number of Entries USINT pos- sible ...
Page 320: A-5-3 Digital Output Units
*3. The product codes are assigned for each product model. Bits 0 to 31: Product code *4. OMRON vendor code *5. Bits 24 to 31: Integer part of the Unit version. Bits 16 to 23: Fractional part of the Unit version.
Page 321 Appendices Objects That Accept I/O Allocations These objects accept I/O allocations. You cannot access the objects that are described below with the Read NX Unit Object instruction or the Write NX Unit Object instruction. Refer to the NJ-series Instructions Reference Manual (Cat. No. W502-E1-07 or later) for details on the Read NX Unit Object instruction or the Write NX Unit Object instruction.
Page 322 Appendices Data Index Subindex Default Data allo- Object name Data range Unit attri- (hex) (hex) value type cat- bute         7001 BYTE Output   Number of Entries USINT pos- sible  Output Bit 8 bits 00 hex 00 to FF hex BYTE...
Page 323 Appendices Data Index Subindex Default Data allo- Object name Data range Unit attri- (hex) (hex) value type cat- bute         7003 DWORD Output   Number of Entries USINT possi  Output Bit 32 bits 00000000 00000000 to DWORD...
Page 324 Appendices Data Index Subindex Default Data allo- Object name Data range Unit attri- (hex) (hex) value type cat- bute         6011 Specified Time Stamp Out- put Status   Number of Entries USINT pos- sible ...
Page 325 Appendices Other Objects This section lists other objects. Data Index Subindex Default Data allo- Object name Data range Unit attri- (hex) (hex) value type cat- bute         5010 Load Rejection Output Set- ting ...
Page 326 Appendices Data Index Subindex Default Data allo- Object name Data range Unit attri- (hex) (hex) value type cat- bute         5011 Load Rejection Byte Set- ting   Number of Entries USINT pos- sible ...
Page 327 Appendices Data Index Subindex Default Data allo- Object name Data range Unit attri- (hex) (hex) value type cat- bute         5012 Load Rejection Word Set- ting   Number of Entries USINT pos- sible ...
Page 328 Appendices Data Index Subindex Default Data allo- Object name Data range Unit attri- (hex) (hex) value type cat- bute         5013 Load Rejection DWord Setting   Number of Entries USINT possi  Load Rejection Output for 00000000 00000000 to...
Page 329: A-5-4 Digital Mixed I/O Units
*3. The product codes are assigned for each product model. Bits 0 to 31: Product code *4. OMRON vendor code *5. Bits 24 to 31: Integer part of the Unit version. Bits 16 to 23: Fractional part of the Unit version.
Page 330 Appendices *7. The year, month, and day of production are assigned to the "lot number". Bits 24 to 31: Date of production Bits 16 to 23: Month of production Bits 8 to 15: Year of production Bits 0 to 7: Reserved *8.
Page 331 Appendices Data Index Subindex Default Data allo- Object name Data range Unit attri- (hex) (hex) value type cat- bute         7002 WORD Output   Number of Entries USINT pos- sible  Output Bit 16 bits 0000 hex 0000 to FFFF WORD...
Page 332 Appendices Other Objects This section lists other objects. Data Index Subindex Default Data allo- Object name Data range Unit attri- (hex) (hex) value type cat- bute         5000 Input Filter Setting   Number of Entries USINT pos-...
Page 333 Appendices Data Index Subindex Default Data allo- Object name Data range Unit attri- (hex) (hex) value type cat- bute         5012 Load Rejection Word Set- ting   Number of Entries USINT pos- sible ...
Page 334: List Of Screwless Clamping Terminal Block Models
Appendices A-6 List of Screwless Clamping Terminal Block Models This section explains how to read the Screwless Clamping Terminal Block model numbers and shows the model number table. A-6-1 Model Notation The Screwless Clamping Terminal Block models are assigned based on the following rules. N N X -T -TB Product type TB: Terminal block...
Page 335: A-7 Version Information
Appendices A-7 Version Information This section describes the relationship between the unit versions of the NX Units, Communications Coupler Units and CPU Units, and the versions of the Sysmac Studio, and the specification changes for each unit version of each Unit. A-7-1 Relationship between Unit Versions of NX Units, Communica- tions Coupler Units and CPU Units, and Versions of Sysmac...
Page 336 NX Units sions/Versions EtherCAT Commu- Unit ver- nica- Model Sysmac sion tions CPU Units Studio Coupler Units NX-ID3317 Ver.1.0 Ver.1.0 Ver.1.05 Ver.1.06 NX-ID3343 NX-ID3344 Ver.1.1 Ver.1.07 Ver.1.06 NX-ID3417 Ver.1.0 Ver.1.05 Ver.1.06 NX-ID3443 NX-ID3444 Ver.1.1 Ver.1.07 Ver.1.06 NX-ID4342 Ver.1.0 Ver.1.05 Ver.1.06 NX-ID4442 NX-ID5142-5 Ver.1.10...
Page 337 Index I - 1 NX-series Digital I/O Unit User’s Manual (W521)
Page 338 Index Index I/O power supply ............4-8 I/O Power Supply Connection Unit ....... 4-14 I/O power supply terminal ..........4-9 AC Input Unit ..............A-22 incorrect attachment prevention hole ......4-27 Access ................A-81 Index ................A-81 Additional I/O Power Supply Unit ......... 4-13 Indicator .................
Page 339 Index Slave Terminal ..........1-4, 4-8, 5-2 Solid Wire ..............4-18 specified time ..............5-24 Subindex ..............A-81 Sync0 ..............5-9, 5-13 Terminal block ..............3-2 Terminal hole ..............3-4 Terminal number indication ..........3-4 thermal shutdown temperature ........7-18 timing to read inputs ..........5-5, 5-9 timing to refresh outputs ........
Page 340 Index I - 4 NX-series Digital I/O Unit User’s Manual (W521)
