Tally Dascom DT-210/230

3.3 For Serial Interface

WARNING!
Be sure to turn off the power supply for both the printer and host computer before
connecting the cables.

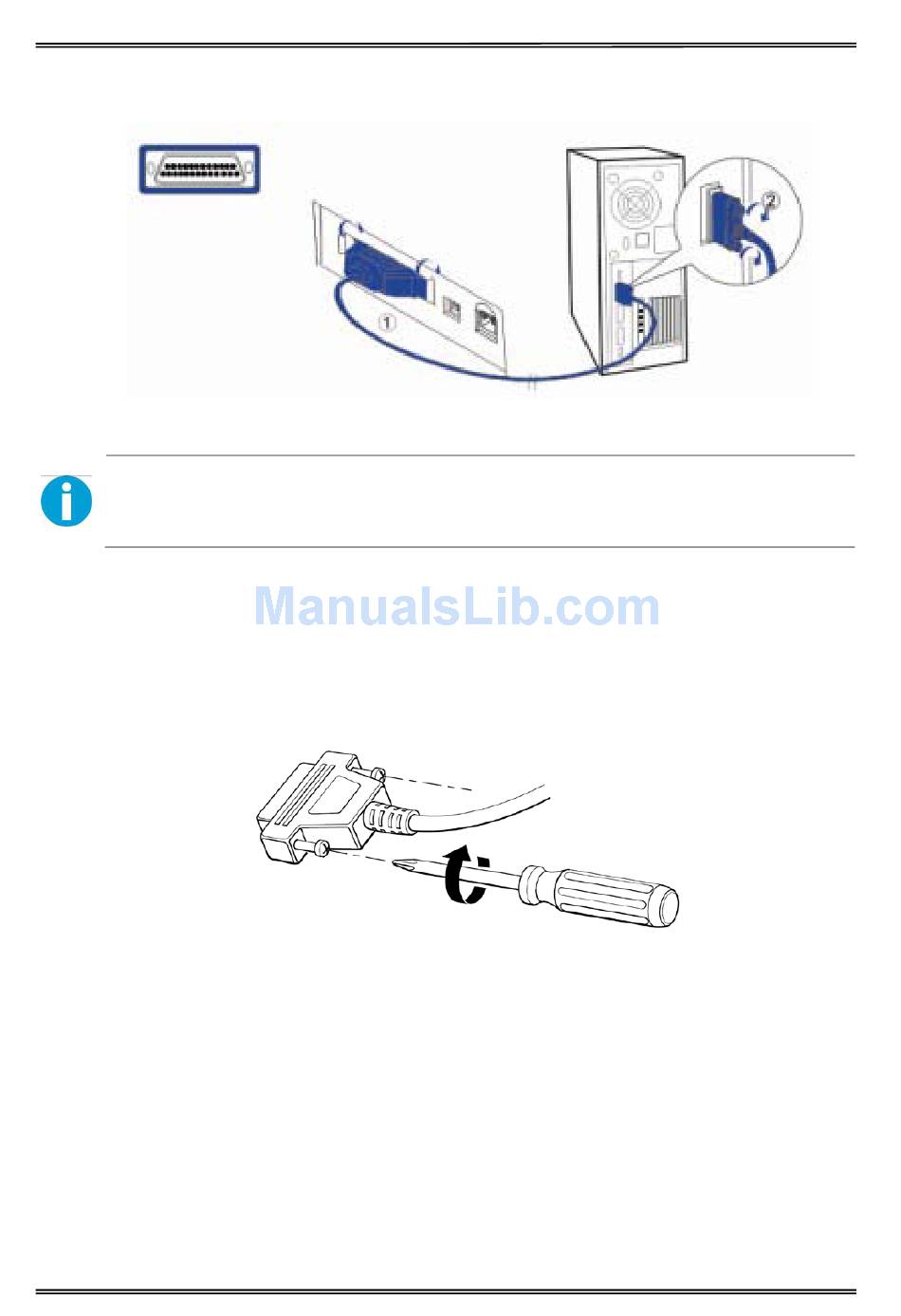

1.
Insert the interface cable connector firmly into the interface connector on the
connector panel.
2.
When using the connectors equipped with screws, tighten them to secure the
connectors firmly.
3.
When using interface cables equipped with a grounding line, attach the ground
line to the screw hole marked "FG" on the printer.
4.
Connect the other end of the interface cable to the host computer.
25
User Guide V1.3
