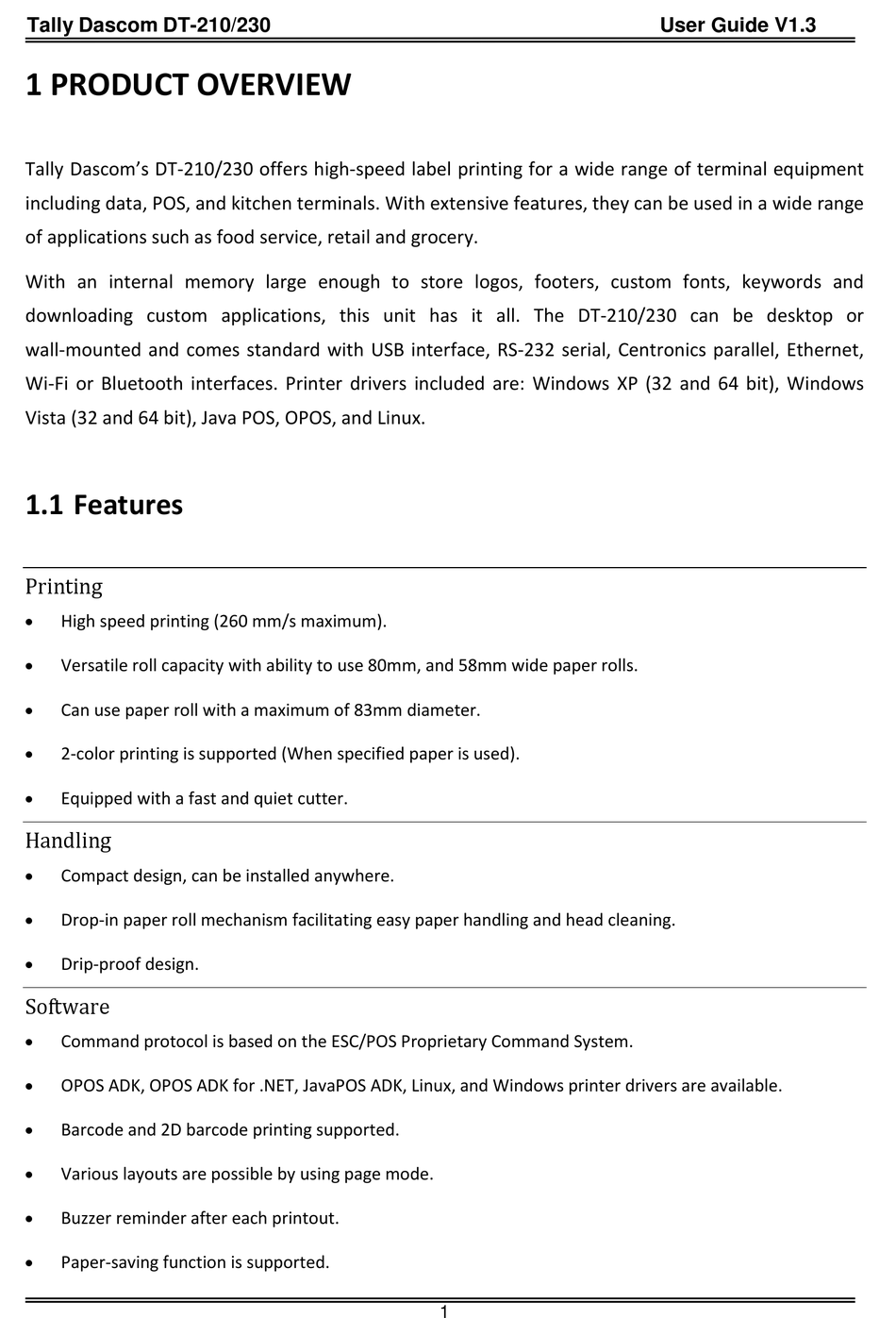

1 PRODUCT OVERVIEW

Tally Dascom's DT-210/230 offers high-speed label printing for a wide range of terminal equipment
including data, POS, and kitchen terminals. With extensive features, they can be used in a wide range
of applications such as food service, retail and grocery.
With an internal memory large enough to store logos, footers, custom fonts, keywords and
downloading custom applications, this unit has it all. The DT-210/230 can be desktop or
wall-mounted and comes standard with USB interface, RS-232 serial, Centronics parallel, Ethernet,
Wi-Fi or Bluetooth interfaces. Printer drivers included are: Windows XP (32 and 64 bit), Windows
Vista (32 and 64 bit), Java POS, OPOS, and Linux.

1.1 Features

Printing
•
High speed printing (260 mm/s maximum).
• Versatile roll capacity with ability to use 80mm, and 58mm wide paper rolls.
• Can use paper roll with a maximum of 83mm diameter.
• 2-color printing is supported (When specified paper is used).
Handling
• Equipped with a fast and quiet cutter.
• Compact design, can be installed anywhere.
• Drop-in paper roll mechanism facilitating easy paper handling and head cleaning.
Software
• Drip-proof design.
• Command protocol is based on the ESC/POS Proprietary Command System.
• OPOS ADK, OPOS ADK for .NET, JavaPOS ADK, Linux, and Windows printer drivers are available.
• Barcode and 2D barcode printing supported.
• Various layouts are possible by using page mode.
• Buzzer reminder after each printout.
• Paper-saving function is supported.
