RS-232 SERIAL INTERFACE

The DT-520 has an industry standard RS-232 interface. The default parameters are 9600 baud, 8 data
bits, 1 stop bit and no parity. Other baud rates can be programmed by control codes, or by using a setup
utility. Contact Dascom Technical Support for information regarding the setup utility.
Serial data is expected in standard RS-232C format with -12V meaning 'mark' or '1' and +12V a logical '0',
with reference to the common ground. The serial data output line, TxD, transmits XON/XOFF and status
information to the host at the same Baud rate and in the same format as the serial data input. The
hardware busy line is true (nominal -12V) when busy. Both serial output lines will relax to approximately
0V when the printer is in sleep mode, and the user must allow a short period after awakening before
relying on the values of these signals.
Some host equipment use a constant space condition (+12V) to indicate a reset condition or wait state.
Some battery powered host equipment present the same output signal when they go to sleep. The printer
can be set to ignore this condition as detailed in the Programmer's Manual, but even then this type of host
behavior may result in one or more spurious characters being received and printed.

CONNECTOR DETAILS

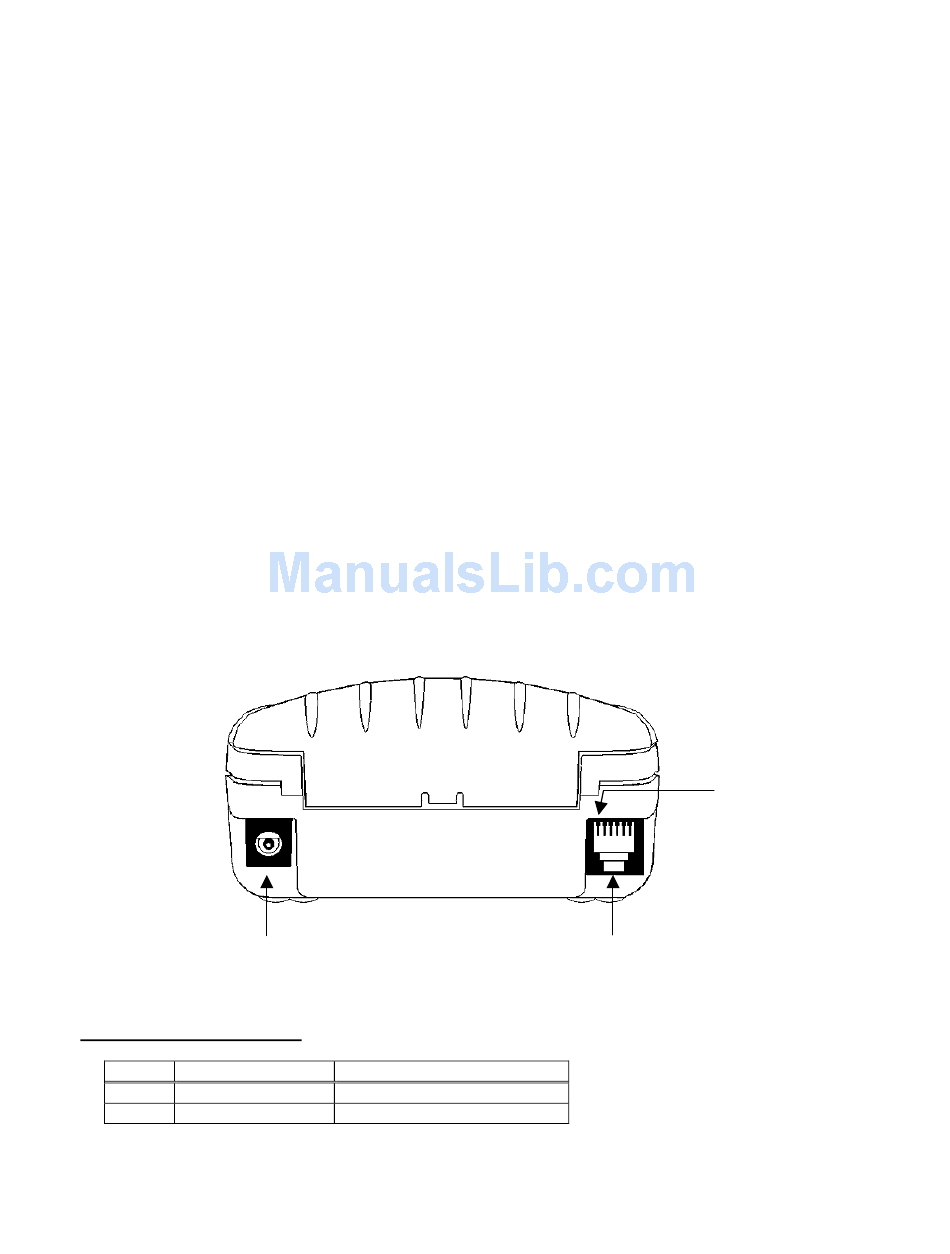

The printer has two user connectors shown below:
Charger Input

CONNECTOR PINOUTS

Charger Input Socket Detail
Pin Dimension (mm)
Inner Inside Ø 2.5
Outer Outside Ø 5.5
The maximum insertion length is 12 mm.
6

INTERFACE DETAILS

CONNECTIONS AND EMC PRECAUTIONS

Function
Positive / Charger Input
Negative / 0V Common
Pin 1
RJ12 Combined Data Socket
