7.3 Interfaces

Power Supply interface, USB interface and cash drawer interface are standard interfaces for the printer.
Serial interface, Parallel interface, Ethernet interface and Wi-Fi interface are optional interfaces for the
printer.
The interface pin assignment is listed below.

7.3.1 USB interface

USB interface pin assignment
PIN No. Description
1
2
3
4

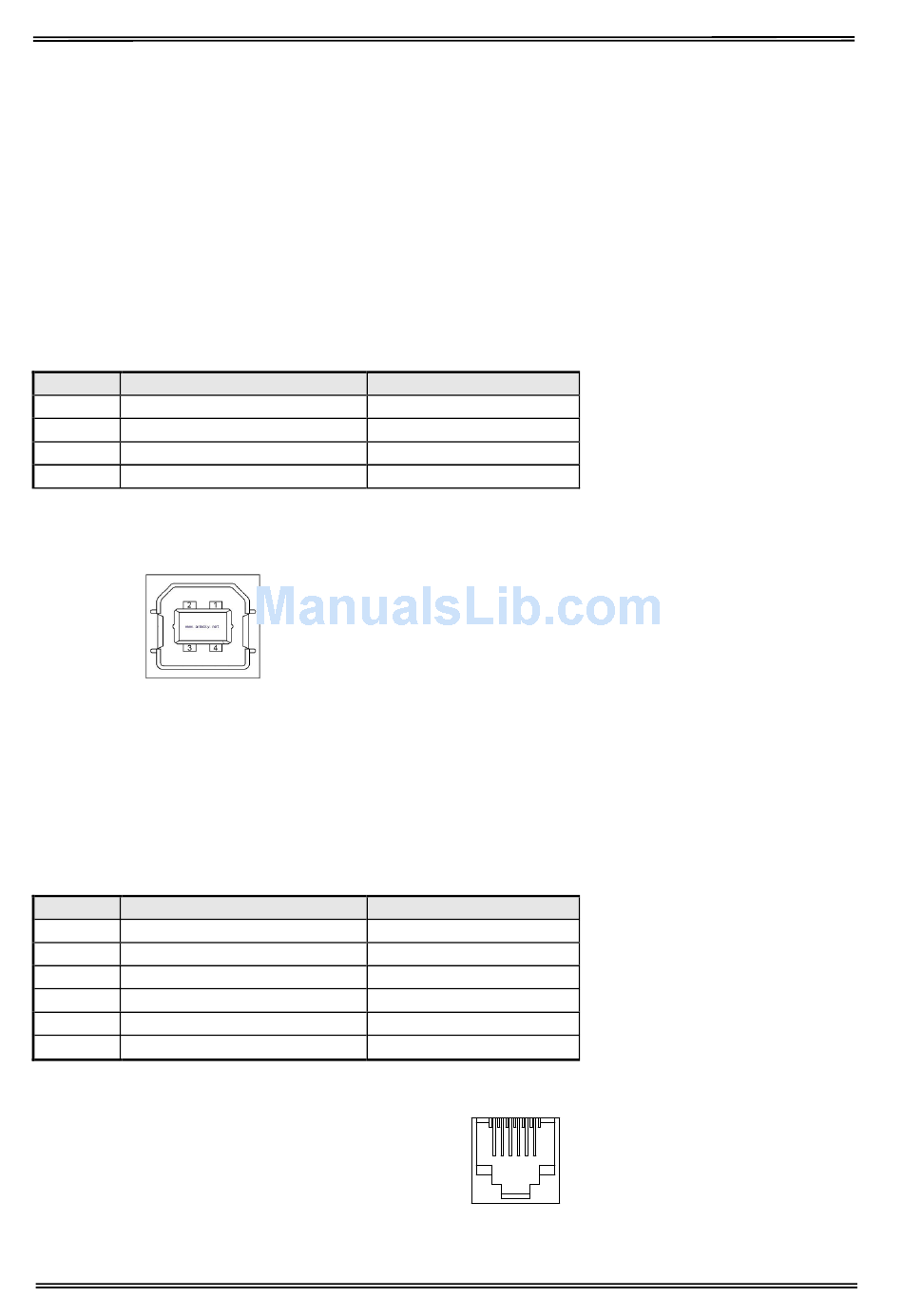

USB interface connector diagram

7.3.2 Cash Drawer interface

Cash Drawer interface pin assignment
Cash drawer interface supports DC24V, 1A, RJ-11 6P type socket.
Pin. No. Description
1 Frame Ground
Drawer kick-out drive signal 1 Output
2
Drawer open/close signal
3
+24V
4
Drawer kick-out drive signal 2 Output
5
GND
6
Cash Drawer interface connector diagram
VBUS
D-
D+
GND
-
Input
-
-
Classic wire color
Red
White
Green
Black
Direction
1 6
58
