Summary of Contents for Dascom DP-330L
- Page 1 DP‐3 330 rator’s s Manu ual DP-3 herm DASC COM Europ pe GmbH Heuweg 89168 Ul German www.dascom m.com 3799 925b...
-
Page 2: Fcc Part 15 Class B
Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Canadian Department of Communications Radio Interference Statement i www.dascom.com ... -
Page 3: Battery Disposal
All other trademarks are the property of their respective owners. © 2015 by DASCOM Europe GmbH, Ulm, Germany. All rights reserved. Read all set up and operating instructions before proceeding with operation. Do not operate in an enclosure unless properly ventilated. - Page 4 Raum, es sei denn dieser wird ordnungsgemäß belüftet. Nehmen Sie den Drucker nicht in der Nähe einer Wärmequelle in Betrieb No user-serviceable parts inside. Refer service or repairs to a qualified service professional. Use of genuine DASCOM replacement parts is required to warrant proper, safe operation. Any alteration or modification of this device voids the user warranty and may make the product unsafe to operate.
-
Page 5: Table Of Contents
Obtaining Service ..........................17 APPENDIX ..............................18 Appendix A – DP-330 Printer Specifications ................... 18 Appendix B – DP-330L Printer Specifications ................. 19 Glossary of Terms ............................. 20 Index ................................22 www.dascom.com... -
Page 6: Introduction

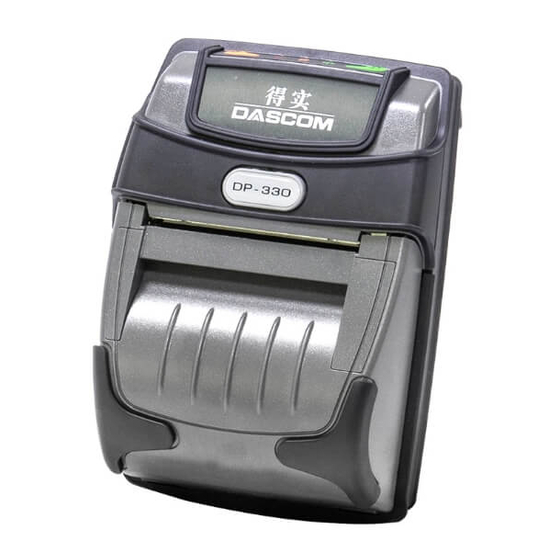

Thank you for purchasing the Tally Dascom DP-330 Series mobile thermal printer also referred to in this manual as the “DP-330” (for Receipt) or “DP-330L” (for Label). The DP-330 series prints on special thermal media supplied in roll form up to 80 mm wide. All models are equipped with a USB port which supports cabled communications. -
Page 7: Printer Features
Compatible with Windows, Windows Mobile, Apple iOS, and Android Emulations that allow the printer to be a drop-in replacement for nearly any mobile printer For detailed specifications reference Appendix A – DP-330 Printer Specifications Appendix B – DP-330L Specifications. www.dascom.com... -
Page 8: Quick Start Instructions
Quick Start Instructions A. Paper Load www.dascom.com... -
Page 9: Printer Installation
Hold the buckle and pull the strap as shown below until you achieve the desired length. C. Battery Installation www.dascom.com... -
Page 10: Charge Battery
D. Charge Battery Uncover the printer ports and plug in your AC power adapter to the Power port (must be a DASCOM- supplied accessory). The yellow LED will show solid ON while the printer battery is charging. E. Power On Depress the Power button on the control panel. -
Page 11: Control Panel
On (Red) Cannot read battery Refer to buffer status On (Green) volume Power save mode On (Green) Download mode Flashing (Green-Red) Downloading Flashing (Orange) G. Performing a Printer Self-Test With power on, press the paper feed button for three seconds. www.dascom.com... -
Page 12: Configuration
Configuration Configuration of the DP-330 printer is done through a configuration tool downloaded from the website (www.dascom.com). This allows you to configure the printer from any windows computer and is compatible with your DP-330 communication capabilities. A. Install Config Tool 1. -
Page 13: Configuration Setup
When using paper with a black on the front adjust this setting to insure the paper stops at the black mark. • If the printer is not detecting black marks reliably, set the Mark Sensitivity to a lower value. www.dascom.com... - Page 14 • If the printer is detecting false check paper conditions, set the Mark Sensitivity to a higher value. • If the printer is detecting black marks where none exist, set the Mark Sensitivity to a higher value. Rear Paper Sensor Threshold (DP-330L models only) Possible values 0-100%. Default value is 75% When using paper with a Black on the back adjust this setting to ensure the paper stops at the Black Mark.
-
Page 15: Integrating The Printer Into Your Business Applications
Using the “Add Printer” wizard, install the printer using the driver file obtained from DASCOM and the USB port number noted above. f) After the printer driver installs, the printer will appear as “Dascom 3-inch printer” under the “Printers and Faxes” heading of your Windows “Devices and Printers” screen. -
Page 16: Windows Tablets And Smartphones
C. Android Tablets & Smart phones I. Wi- Fi This feature and/or specific directions for use were not available as of this printing. D. Apple™ Tablets & Smartphones Wi-Fi This feature and/or specific directions for use were not available as of this printing. www.dascom.com... -
Page 17: Media
Media A. Standard Media DASCOM offers a variety of media types. You may contact your DASCOM sales representative for a complete and up to date description of our consumables and accessory products. B. Black Mark Media Position For automatic ticket printing, the Black Mark should be positioned as shown in the figure below. -
Page 18: Maintenance And Troubleshooting
Roller whenever you load new paper. To clean the printer areas as described below, use a Thermal Head Cleaning Pen and MCR Cleaning Card available from DASCOM, or you may use cotton swabs moistened with isopropyl alcohol. Turn the printer off. Open the Paper Door and remove the paper. -
Page 19: Additional Battery And Safety Information
Note: This test only verifies that the power adapter, the internal charging circuit, and the battery are functioning properly. This test does not provide a valid indication of the relative capacity of the battery or how long it may hold a charge. www.dascom.com... -
Page 20: Troubleshooting
Check building/vehicle circuit power adapter is connected. power breakers/fuses. Faulty power adapter Check output of power adapter with voltmeter. Should be 19 VDC. Battery not installed properly Remove and reinstall battery making sure the battery is seated with door closed. www.dascom.com... -
Page 21: Obtaining Service
Interface not configured Print a self-test to verify interface. correctly printer settings. Make sure printer and host set ups match. D. Obtaining Service If service is required for your printer, please contact the company where you purchased your printer. www.dascom.com... -
Page 22: Appendix
Battery: Rechargeable 3 cell Lithium Depends on local requirements. Please Ion, (11.1 V, 3000 mAh, 33.3 Wh). Standard (All Units): USB 2.0 PNP. Endurance: Over 3,500 printed inches contact your national DASCOM sales Wireless Options: per charge. office. Power Option: 100-240 VAC wall adapter, or 12-24 VDC in-vehicle adapter. -
Page 23: Appendix B - Dp-330L Printer Specifications
B. Appendix B – DP-330L Printer Specifications Printer Setup via internal web page, Operator Controls and Indicators Printing Specifications access with browser from any host 3 LED indicators for general fault, Printing Method: Direct thermal. (tablets and smartphones included). -
Page 24: Glossary Of Terms
An area along any edge of a form where data may not be printed. Peer-to-Peer A network consisting of only stations (no access point or central server). Same as Ad-Hoc. reset Initialization of various operating features of the printer to the value or state assumed when the printer is powered on. www.dascom.com... - Page 25 Wired Equivalent Privacy. A security protocol for wireless LANs designed to provide data security similar to a wired LAN. Wi-Fi Refers to any of the IEEE 802.11 standards. WLAN Wireless Local Area Network. A LAN made up of wireless nodes. www.dascom.com...
-
Page 26: Index
27 Paired Mode, 8 Wifi Port, 9 Default Font, 10 pairing code, 16 Windows, ii, 3, 15, 16, 17 Default Text Line Spacing, Paper Energy Values, 12 WLAN, 28 Paper Feed Button, 6 Device Config, 11 Paper Load, 4 www.dascom.com...
