Appendix B: Vehicle Power Management Setup

Vehicle Power Management Setup

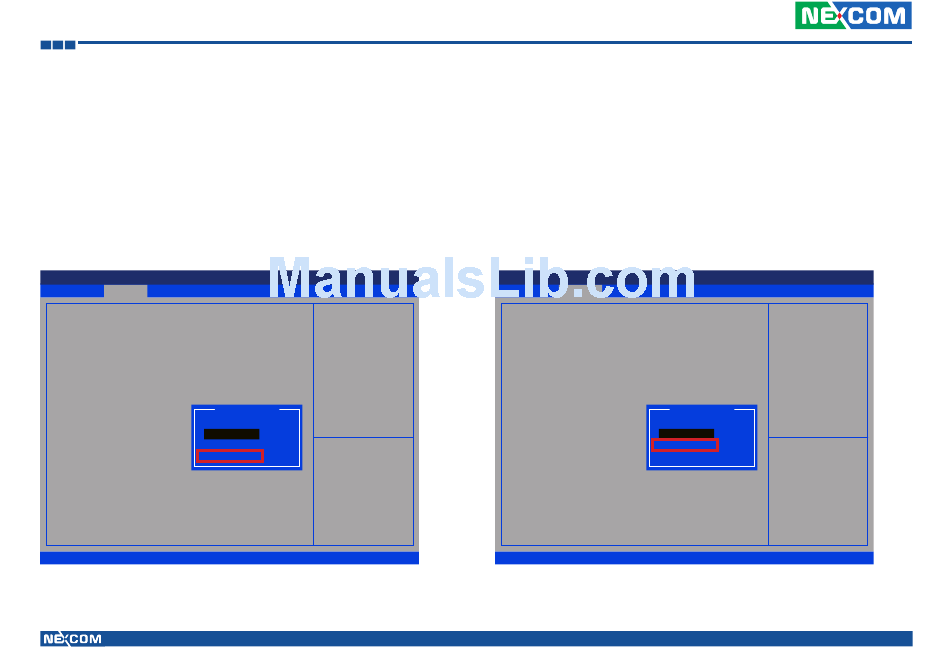

External Power Output Setting
External +12V Turn On Only
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Advanced
Power Management Configuration
** External +5V & +12V Power Setting **
External Power [Turn Off Both]
** Startup & Shutdown Voltage Setting **
Input Voltage 12 V
Startup,Shutdown [(11.5,10.5)/(23,21)]
**Delay Time Setting**
Power On Delay
Turn On Both
Turn Off Both
Power Off Delay
Turn On +5V
Turn On +12V
Version 2.10.1208. Copyright (C) 2010 American Megatrends, Inc.
Copyright © 2014 NEXCOM International Co., Ltd. All rights reserved
Enable/Disable External Power
External Power
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
External +5V Turn On Only
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Advanced
Power Management Configuration
** External +5V & +12V Power Setting **
External Power
** Startup & Shutdown Voltage Setting **
Input Voltage
Startup,Shutdown
**Delay Time Setting**
Power On Delay
Power Off Delay
Version 2.10.1208. Copyright (C) 2010 American Megatrends, Inc.
82
Enable/Disable External Power
[Turn Off Both]
12 V
[(11.5,10.5)/(23,21)]
External Power
Turn On Both
Turn Off Both
Turn On +5V
→←: Select Screen
↑↓: Select Item
Turn On +12V
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
