Chapter 9: How to Install a SATA DOM Module

C 9: h
haPter ow to
1. Remove the heatsink.
2. When installing the Wi-Fi module, please install the module before
installing the SATA DOM.

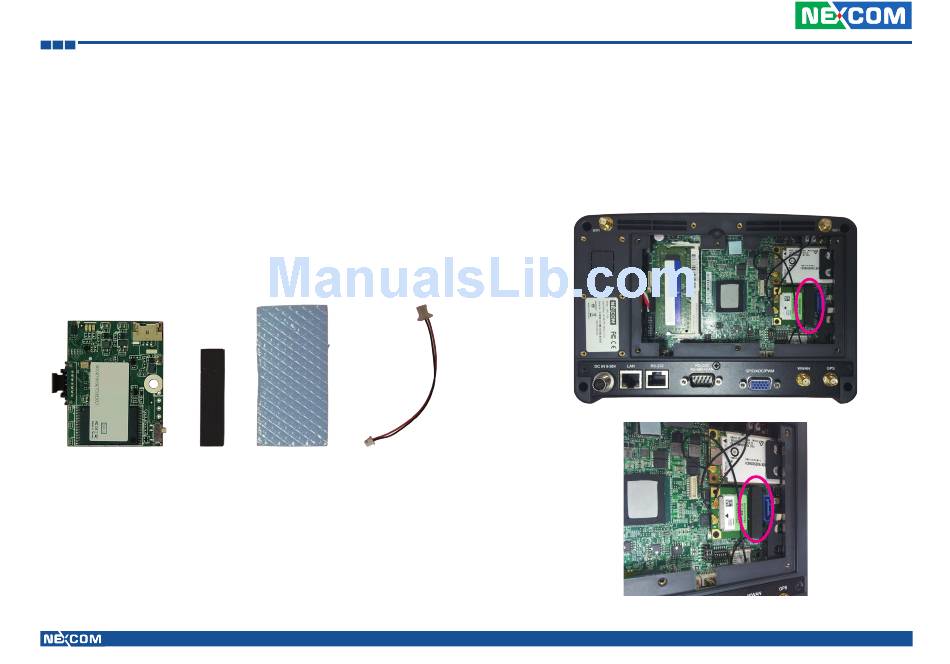

3. Before installing the SATA DOM, please make sure you have the following
parts.
SATA DOM Sponge
Copyright © 2014 NEXCOM International Co., Ltd. All rights reserved
I s
nstall a
Thermal Pad SATA Power
Cable
d m
ata om odule
4. Paste the sponge on the Mini PCI express slot.
