Chapter 3: Jumpers and Connectors

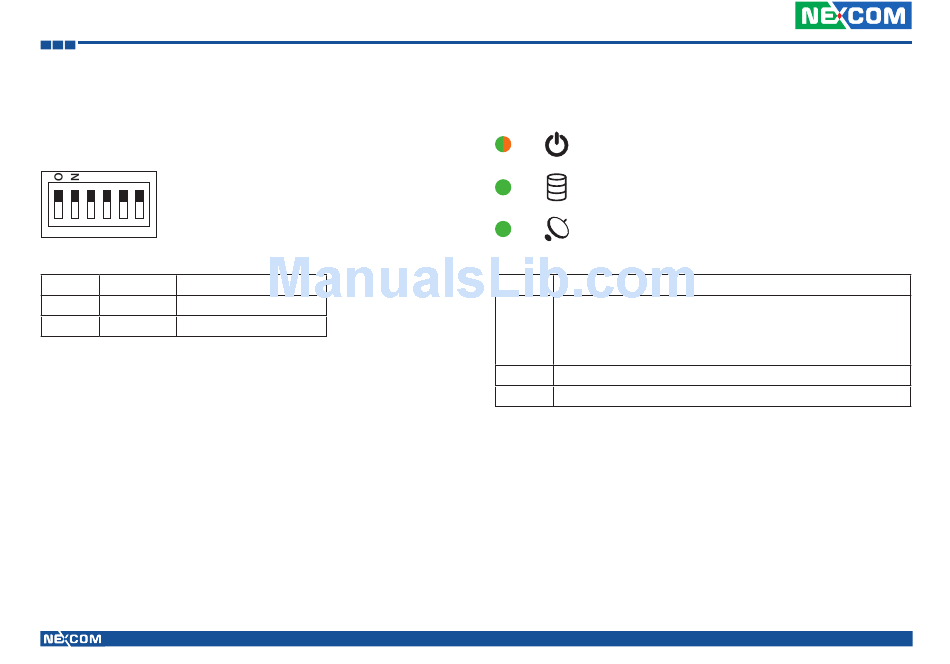

GPIO Pull High Switch
Connector size: 6-pin DIP switch
Connector location: SW7
1 2 3 4 5 6
Pin
Status
1-6
ON
GPIO Output Pull High
1-6
OFF
GPIO Output NC
Copyright © 2014 NEXCOM International Co., Ltd. All rights reserved
Function
LED Indicators
Power
HDD
WWAN
LED
Power
Initial power-on: Green LED for 2~3 seconds
Boot loader or BIOS status: Blinking orange
System login in status: Blinking green
Power On: Solid green
HDD
HDD activity: Green
WWAN
WWAN activity: Green
24
Description
VMC 1100 User Manual
