Chapter 3: Jumpers and Connectors

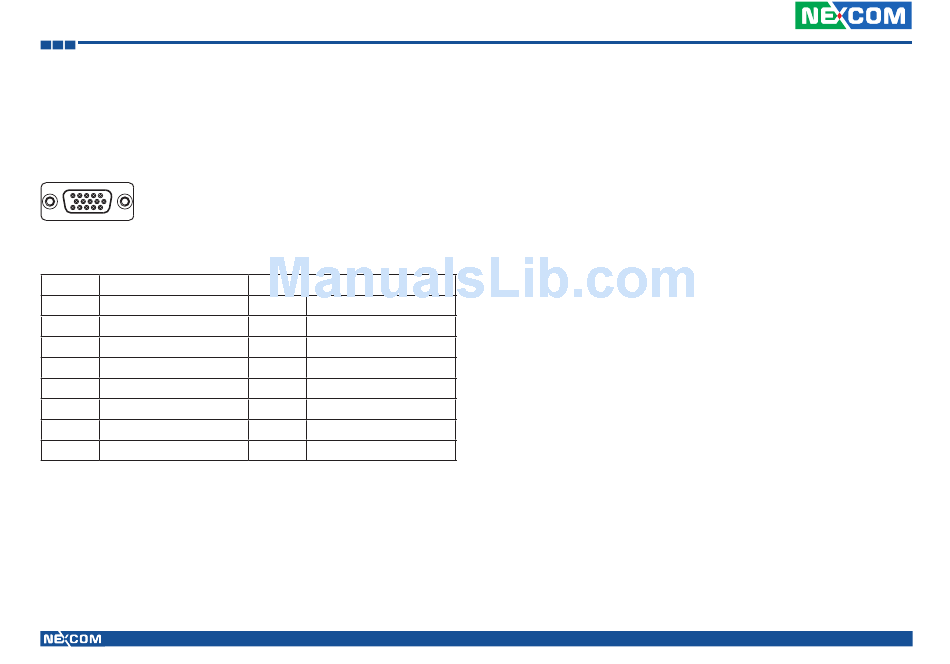

GPIO and Sensor Connector
Connector size: DB-15 port, 15-pin D-Sub
Connector location: CN3
5
1
15
11
Pin
Definition
1
SPEED_1
3
A-VIN0
5
IO_AGND
7
G_IN-2
9
G_OUT-1
11
G_OUT-3
13
DR_GPS-ODOMETER
15
IO_GND1
** Pin 12, Pin 13, Pin 14 are workable when Dead Reckoning GPS module is used.
Copyright © 2014 NEXCOM International Co., Ltd. All rights reserved
Pin
Definition
2
SPEED_2
4
A-VIN1
6
G_IN-1
8
G_IN-8
10
G_OUT-2
12
DR_GPS-1PPS
14
DR_GPS-DIRECTION
27
VMC 1100 User Manual
