Chapter 3: Jumpers and Connectors

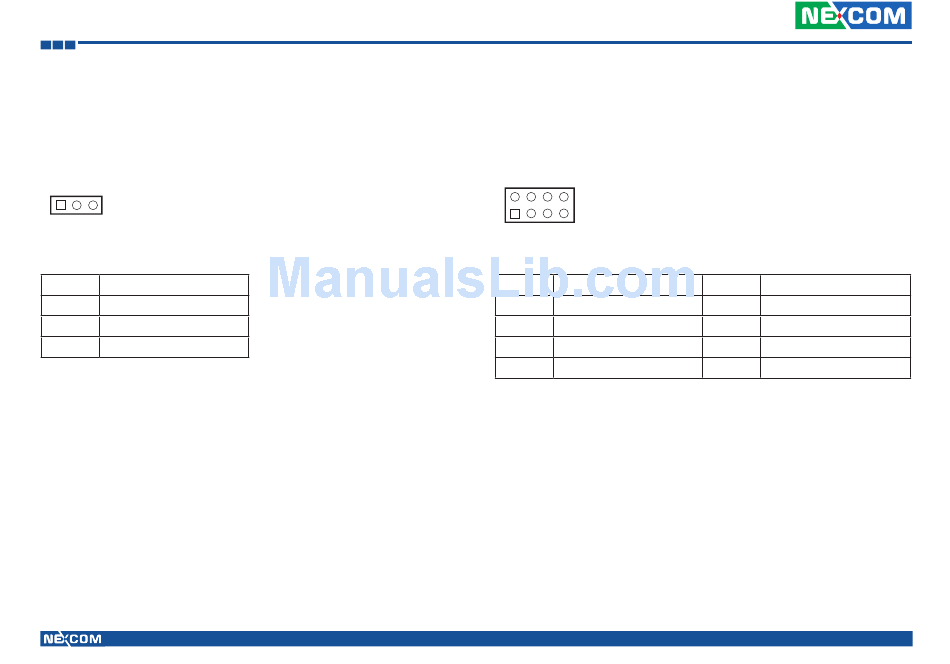

MCU Debug COM Header

Connector size: 1x3 3-pin header, 1.0mm pitch
Connector location: JP1
1 3
Pin Definition
1 TX
2 RX
3 GND
Copyright © 2014 NEXCOM International Co., Ltd. All rights reserved

MCU Flash Connector

Connector size: 2x4 8-pin header, 1.0mm pitch
Connector location: JP2
2 8
1 7
Pin Definition
1 +V3.3ALW
3 MCU_TRST
5 MCU_TCK
7 MCU_TDO
20
Pin Definition
2 MCU_RST#
4 MCU_TDI
6 MCU_TMS
8 GND
