Chapter 2: Using the GPS Feature

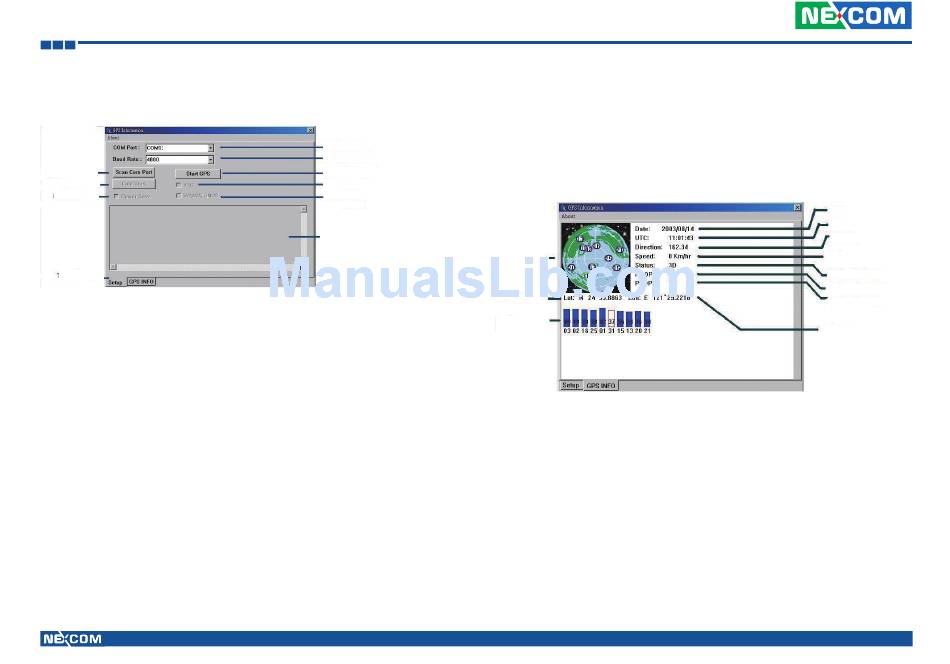

Setup Window Screenshot

Double click GpsInfo_Vista icon from Desktop to start GPS.
Scan Com Port
Cold Start
Power Save
Tab Menu
•
Scan Com Port" - Scan all available communication port for GPS recep-
tion
•
"Cold Start" - Cold start the GPS receiver
•
"Power Save" - Check the box to enable/disable the Power Save Mode
(the option is available only when a GPS device is found)
•
"Tab Menu" - Switch between Setup and GPSINFO windows
•
"Com Port Selection" - Select the appropriate communication port
where GPS receiver is configured (it may be necessary to try several com-
munication ports until the right one is found)
• "Baud Rate Selection" - Select the appropriate transferring rate (Please
set the baud rate at 9600)
•
"Start GPS button" - Turn on/off the GPS device
•
"VTG check box" - Some navigation or map software requires to receive
VTG data output for during operation. Check the box to activate the
VTG data output.
Copyright © 2014 NEXCOM International Co., Ltd. All rights reserved
•
•
Com Port Selection
Baud Rate Selection

GPS Info Window Screenshot

Start GPS button
VTG check box
WAAS/EGNOS
Main GPS data
Window
Satellite Status
•
14
"WAAS/EGNOS" - Check the box to activate WAAS/EGNOS in order to
increase the accuracy of positioning
"Main GPS data Window" - Display data received by GPS device.
Satellite
Distribution
Map
Latitude
Chart
"Satellite Distribution Map" – Display the position of all connected
Satellites
A unique number is assigned to each satellite.
•
Red circle indicates that the satellite location is known from almanac
•
information; however, the satellite is not currently being tracked.
Green circle indicates that the satellite is being tracked; how ever, it is
•
not being used in the current position solution.
Blue circle indicates that is being tracked and is being used in the cur-
•
rent position.
Date
Time
Direction
Speed
Positioning Status
Horizontal Accuracy
Position Accuracy
Longitude
