Grounding the Front ID Doors

Note To comply with GR-1089, you have to bond the front industrial design (ID) doors to the ground port on
the chassis using the ground braid.
Figure 7
the I/O modules and the bottom door is used for the power supplies.

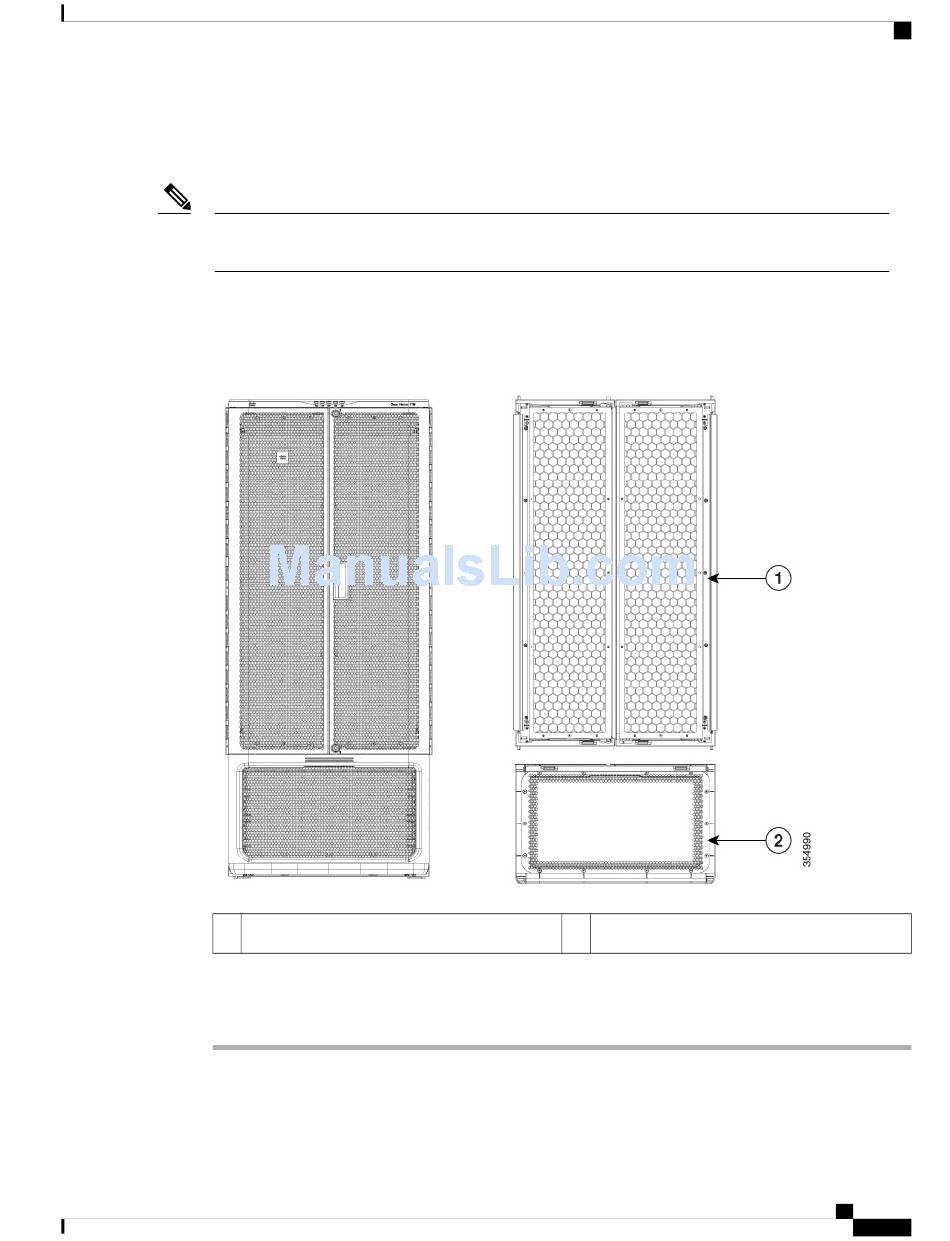

Figure 11: Front ID Door Sections
1
Procedure
Step 1
Remove 7 screws from the front industrial design (ID) doors.
OL-30453-01
shows the two sections of the Cisco Nexus 7718 front ID doors. The upper two doors are used for
Doors for I/O modules 2 Door for power supplies
