The Locate Client Screen

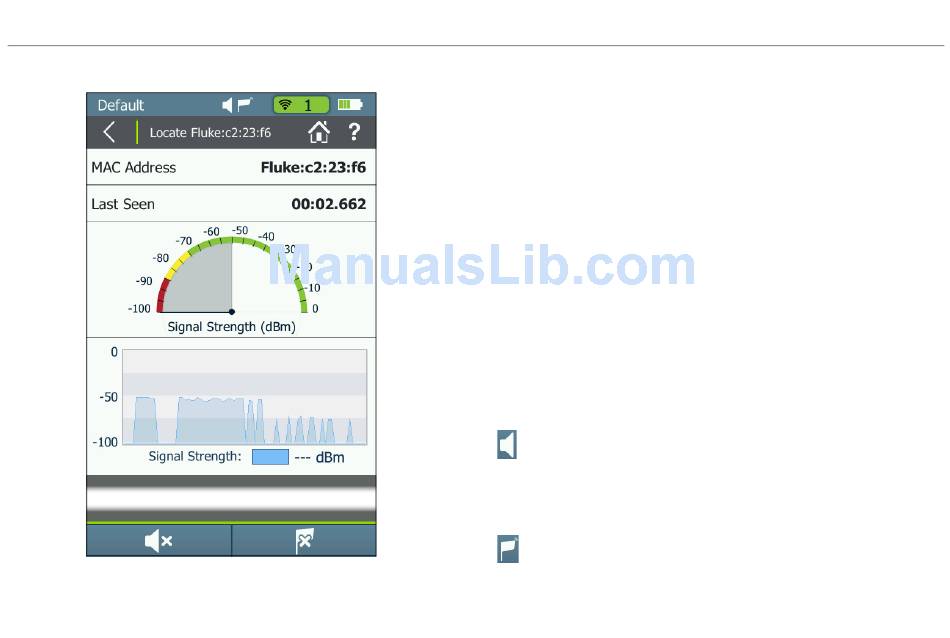

Figure 41. Locate Client Screen
The following information shows on the Locate Client
screen:
Screen Title: Shows the Client's MAC address. The address
starts with a vendor abbreviation prefix, if the prefix is
available. See "How to: Load the latest list of vendor
prefixes into the Tester," page 73.
MAC Address: The client's MAC address.
Last Seen: The time elapsed since the client was last
detected.
Signal Strength Meter: Visually displays the client's real-time
signal level reading.
Signal Strength Line Graph: Visually displays the client's
signal level over time and the highest signal strength
recorded (high watermark).
Signal Strength: The strength of the signal from the client in
dBm. The display shows "---" if the Tester cannot hear the
access point.
Sound/Mute Icon: Press this button to turn off the
sound. When sound is on, the icon displays in the screen
header, and AirCheck G2 emits an audible single-tone clicking
sound that increases in frequency as the signal level
increases (i.e., as you are moving closer to the AP).
External Antenna Icon: Press this button to turn the
External Antenna on or off. The external antenna is On when
the icon displays in the screen header, as shown in
58
Locating an Access Point or a Client
Figure 41.
