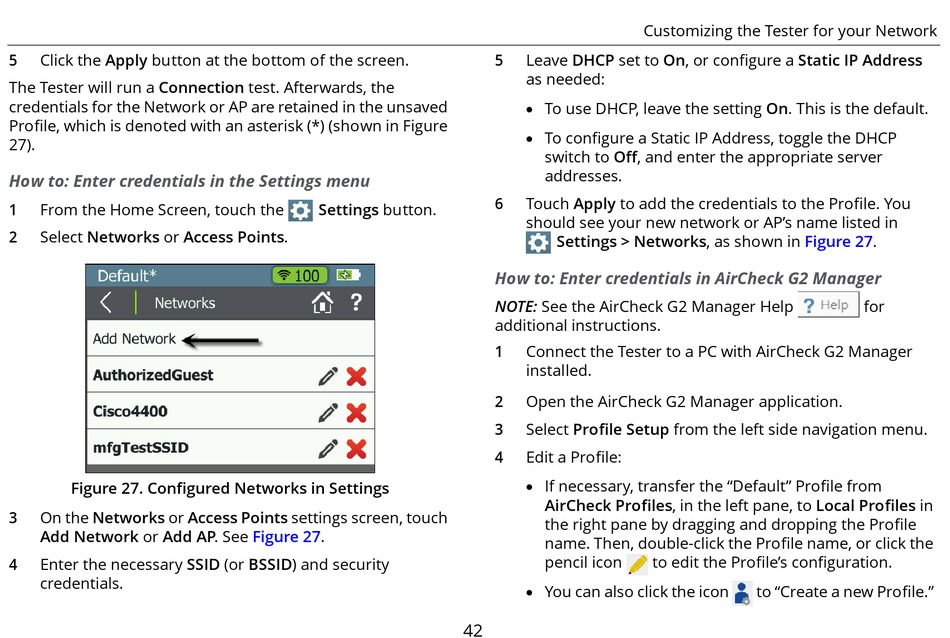

5 Click the Apply button at the bottom of the screen.
The Tester will run a Connection test. Afterwards, the
credentials for the Network or AP are retained in the unsaved
Profile, which is denoted with an asterisk (*) (shown in Figure
27).

How to: Enter credentials in the Settings menu

1 From the Home Screen, touch the
2 Select Networks or Access Points.
Figure 27. Configured Networks in Settings
3 On the Networks or Access Points settings screen, touch
Add Network or Add AP. See
4 Enter the necessary SSID (or BSSID) and security
credentials.
Settings button.
Figure 27.
5 Leave DHCP set to On, or configure a Static IP Address
as needed:
 To use DHCP, leave the setting On. This is the default.
 To configure a Static IP Address, toggle the DHCP
switch to Off, and enter the appropriate server
addresses.
6 Touch Apply to add the credentials to the Profile. You
should see your new network or AP's name listed in
Settings > Networks, as shown in

How to: Enter credentials in AirCheck G2 Manager

NOTE: See the AirCheck G2 Manager Help
additional instructions.
1 Connect the Tester to a PC with AirCheck G2 Manager
installed.
2 Open the AirCheck G2 Manager application.
3 Select Profile Setup from the left side navigation menu.
4 Edit a Profile:
 If necessary, transfer the "Default" Profile from
AirCheck Profiles, in the left pane, to Local Profiles in
the right pane by dragging and dropping the Profile
name. Then, double-click the Profile name, or click the
pencil icon
 You can also click the icon
42
Customizing the Tester for your Network
Figure
to edit the Profile's configuration.
to "Create a new Profile."
27.
for
