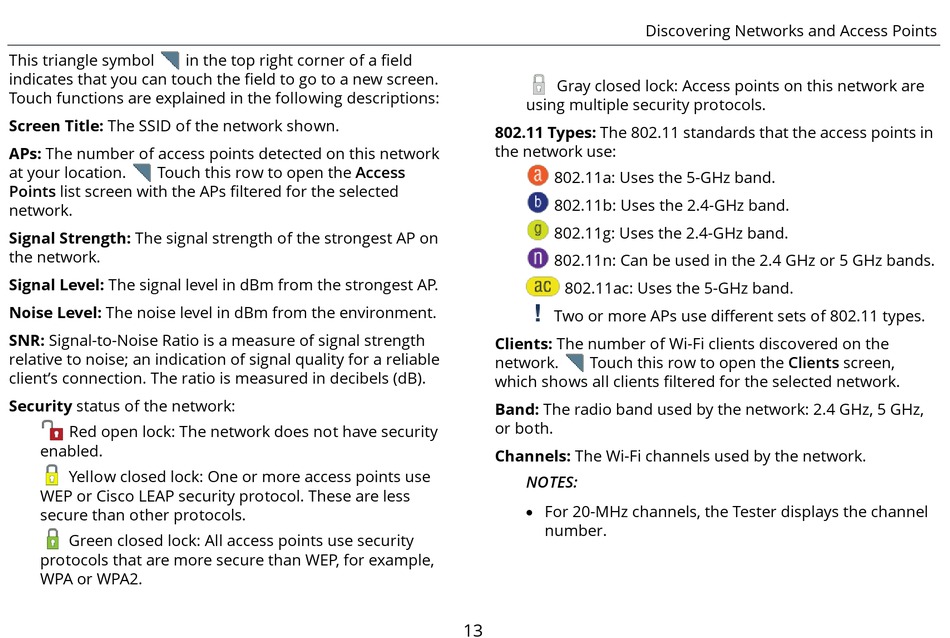

This triangle symbol in the top right corner of a field
indicates that you can touch the field to go to a new screen.
Touch functions are explained in the following descriptions:
Screen Title: The SSID of the network shown.
APs: The number of access points detected on this network
at your location. Touch this row to open the Access
Points list screen with the APs filtered for the selected
network.
Signal Strength: The signal strength of the strongest AP on
the network.
Signal Level: The signal level in dBm from the strongest AP.
Noise Level: The noise level in dBm from the environment.
SNR: Signal-to-Noise Ratio is a measure of signal strength
relative to noise; an indication of signal quality for a reliable
client's connection. The ratio is measured in decibels (dB).
Security status of the network:
Red open lock: The network does not have security
enabled.
Yellow closed lock: One or more access points use
WEP or Cisco LEAP security protocol. These are less
secure than other protocols.
Green closed lock: All access points use security
protocols that are more secure than WEP, for example,
WPA or WPA2.
Gray closed lock: Access points on this network are
using multiple security protocols.
802.11 Types: The 802.11 standards that the access points in
the network use:
802.11a: Uses the 5-GHz band.
802.11b: Uses the 2.4-GHz band.
802.11g: Uses the 2.4-GHz band.
802.11n: Can be used in the 2.4 GHz or 5 GHz bands.
802.11ac: Uses the 5-GHz band.
Two or more APs use different sets of 802.11 types.
Clients: The number of Wi-Fi clients discovered on the
network. Touch this row to open the Clients screen,
which shows all clients filtered for the selected network.
Band: The radio band used by the network: 2.4 GHz, 5 GHz,
or both.
Channels: The Wi-Fi channels used by the network.
NOTES:
 For 20-MHz channels, the Tester displays the channel
number.
13
Discovering Networks and Access Points
