A C G2 T
II. IR HECK
Power Button: Turns
the Tester unit on or off.
When the Tester is off,

press this button to
power on.
When the Tester is on,

press for one second
to shut it down.
For "hard" power off,

without software
shutdown, press for
four seconds.
The Power LED glows
green when the unit is
on and glows red when
the battery is charging
but the unit is off.
Once the battery is fully
charged, the LED turns
off.
P F
ESTER HYSICAL
RJ-45 Ethernet
Port
10/100/1000 Mbps
Touchscreen
Power Button
and LED

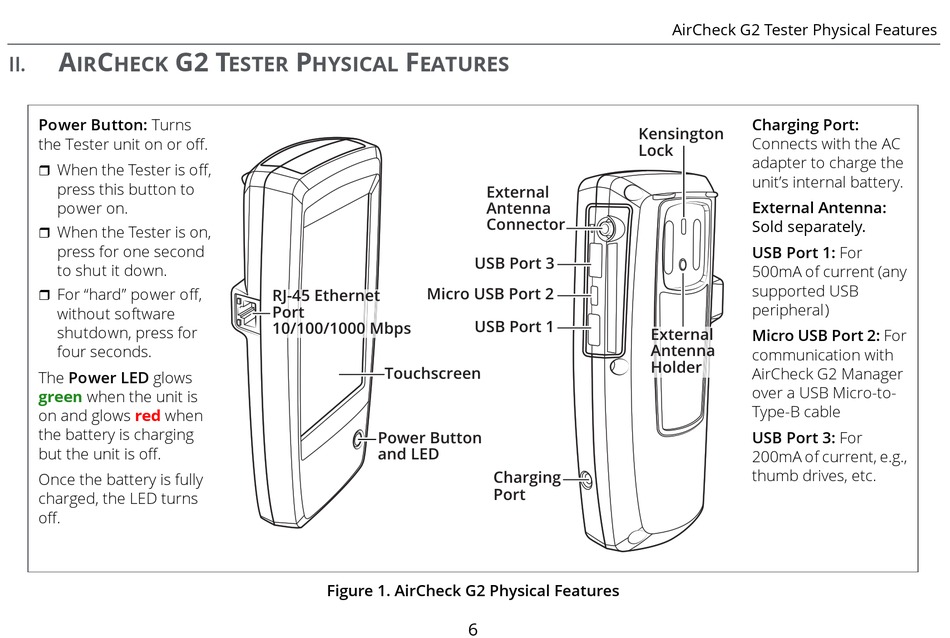

Figure 1. AirCheck G2 Physical Features
EATURES
External
Antenna
Connector
USB Port 3
Micro USB Port 2
USB Port 1
Charging
Port
6

AirCheck G2 Tester Physical Features

Charging Port:
Kensington
Connects with the AC
Lock
adapter to charge the
unit's internal battery.
External Antenna:
Sold separately.
USB Port 1: For
500mA of current (any
supported USB
peripheral)
Micro USB Port 2: For
External
communication with
Antenna
Holder
AirCheck G2 Manager
over a USB Micro-to-
Type-B cable
USB Port 3: For
200mA of current, e.g.,
thumb drives, etc.
